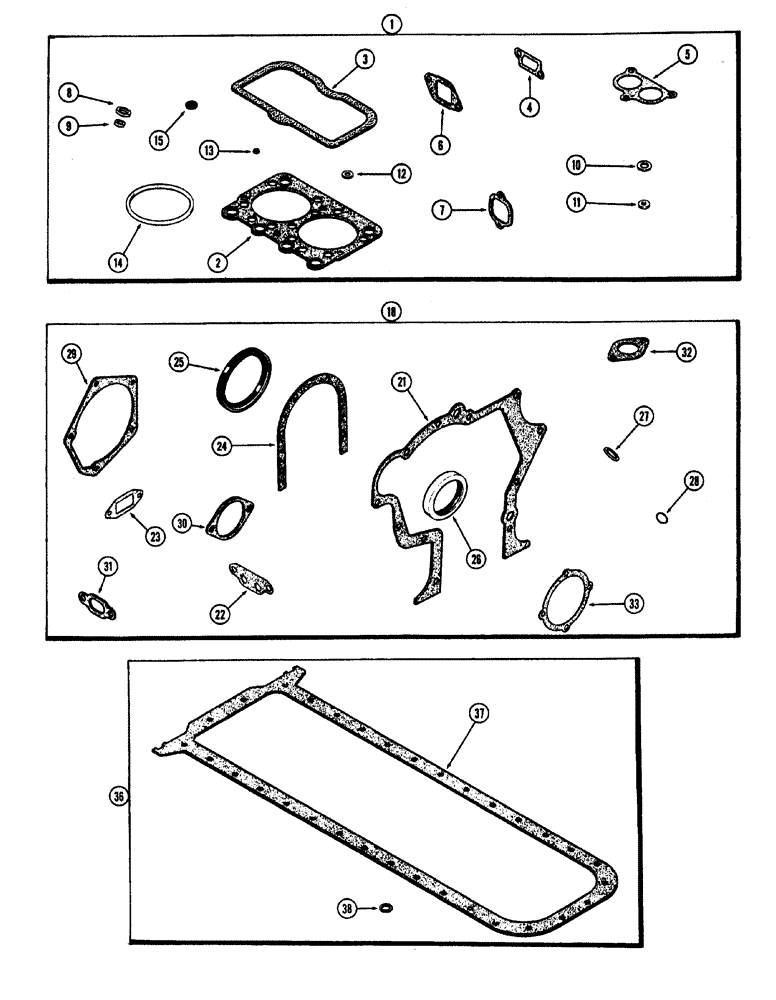

Запчасти Case W20 (028) - (401B) DIESEL ENGINE GASKET KITS (02) - ENGINE

1

A42890

VALVE

GASKET KIT grind, order for complete engine overhaul, Includes Ref: 2-15

1шт.

2

A62215

GASKET

cylinder head

3шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover

3шт.

4

A58637

MANIFOLD GASKET

water manifold

3шт.

5

A58639

GASKET

thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

intake manifold

6шт.

7

A58895

GASKET

exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube to cover, 11/16" x 1-1/4" x 1/4"

3шт.

11

A23684

GASKET

cover studs, 1/2" x 7/8" x 1/8"

6шт.

12

A34133

GASKET

breather tube screw, 9/32" x 1/2" x 3/64"

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

Rocker shaft oil tube, 3/16" x 5/16" x 1/16"

3шт.

14

A34686

RING

fire, cylinder head, Standard

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

intake & exhaust valve

12шт.

20

A42096

GASKET

KIT cylinder block, order for complete engine overhaul, Includes Ref: 21-33

1шт.

21

A58612

GASKET

timing gear cover

1шт.

22

A58756

OIL PAN GASKET SET

oil filter base, not used

1шт.

23

A58646

GASKET

water pump body

1шт.

24

A32830

GASKET

rear oil seal retainer

1шт.

25

A62050

OIL SEAL

oil, crankshaft, rear, 4-3/4" x 5-3/4" x 1/2"

1шт.

26

A62049

OIL SEAL

oil, crankshaft, front, 2-5/8" x 3-5/8" x 1/2"

1шт.

27

A58613

SEALING WASHER

timing window plug

1шт.

28

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil pump, 15/16" x 1-1/8" x 3/32"

3шт.

29

A58615

GASKET

fuel pump cover

1шт.

30

A58617

GASKET

auxiliary drive cover, not used

1шт.

31

A58670

GASKET

oil cooler water opening

1шт.

32

A58680

OIL PAN GASKET SET

oil cooler tube

1шт.

33

A58649

GASKET

water pump body

1шт.

36

A41761

GASKET

KIT oil pan, order for complete engine overhaul, Includes Ref: 36, 38

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

38

A27968

RING

copper, drain plug, 7/8" x 1-1/8" x 1/16"

1шт.
