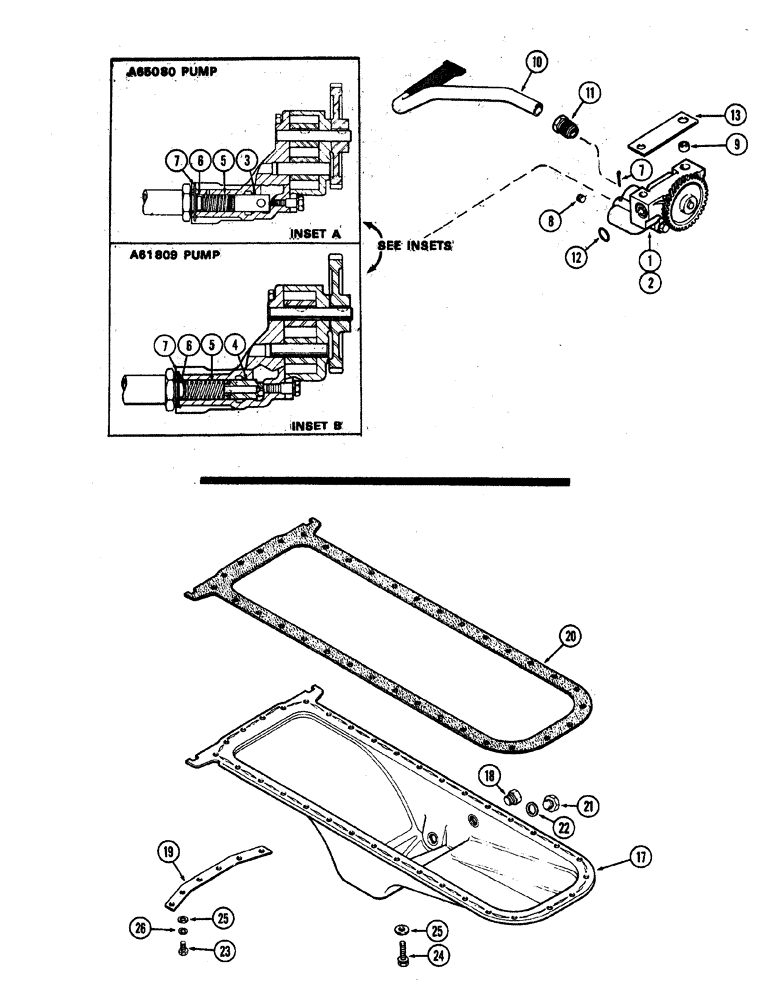

Запчасти Case W20 (026) - (401B) DIESEL ENGINE OIL PUMP (02) - ENGINE

1

A65080

PUMP

ASSY oil, see Inset A, Includes Ref: 3-9

1шт.

2

A61809

PUMP

ASSY oil, see Inset B, Includes Ref: 3-9

1шт.

3

A65083

VALVE

relief, use with/A65080 pump, see Inset A

1шт.

4

A34992

PISTON

VALVE relief, use with A61809 pump, see Inset B

1шт.

5

A59111

SPRING

relief valve, oil pump

1шт.

6

41-1011

PLUG,Cup, 11/16"

cup type, relief valve, 11/16"

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

1шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

1шт.

9

A58915

SLEEVE

pump body

1шт.

10

A62805

TUBE

ASSY oil suction, includes screen

1шт.

11

222-510

TUBE NUT,1 1/4"-18

tube to pump

1шт.

12

A64434

O-RING,0.93" ID x 1.142" x 0.106"

pump to block, 15/16 x 1-1/8 x 3/32"

1шт.

13

A58859

SHIM,.005" Thk

Oil pump mounting

1шт.

17

A62410

PAN

ASSY oil, Includes Ref: 18

1шт.

18

221-664

PLUG,Hex Hd, 1/2"-14

hex head, compressor drain, 1/2" PT, oil pan

1шт.

19

A58932

STRAP

reinforcing, oil pan

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A41761, See Figure 29

1шт.

21

A34826

PLUG,7/8" - 18 ORB

drain, oil pan

1шт.

22

A27968

RING

drain plug, oil pan, Replaces: A58933

1шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan

32шт.

24

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

hex, oil pan, breather tube bracket, 3/8 x 1-1/2" NC, includes washer

2шт.

25

195-25

WASHER,3/8"

oil pan, 7/16" x 13/16" x 1/16"

40шт.

26

92-6

LOCK WASHER,3/8"

oil pan

32шт.
