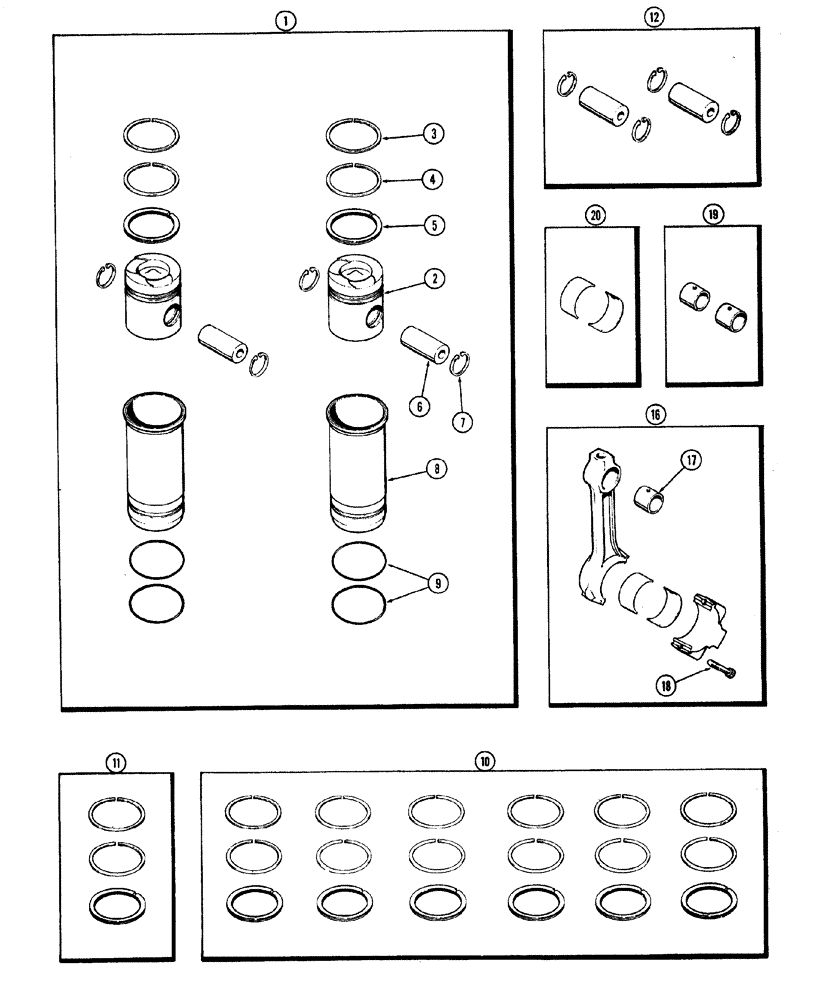

Запчасти Case W20 (024) - (401B) DIESEL ENGINE PISTON ASSEMBLY (02) - ENGINE

1

A44069

PISTON

ASSY set of 2, Replaces: A43106, A41964 & A43116, Includes Ref: 2-9

3шт.

2

A65127

PISTON

ASSY 4-1/8" diameter, Replaces: A64874 & A58882

2шт.

3

NSS

NOT SOLD SEPARAT

RING compression, first groove, order Ref. 11

2шт.

4

NSS

NOT SOLD SEPARAT

RING compression, second groove, order Ref. 11

2шт.

5

NSS

NOT SOLD SEPARAT

RING oil control, third groove, order Ref. 11

2шт.

6

NSS

NOT SOLD SEPARAT

PIN wrist, piston, order Ref. 12

2шт.

7

T28550

SNAP RING,1.50", Int, #150

wrist pin 1.50", Int, #150

4шт.

8

A136009

SLEEVE

cylinder liner, Replaces: A58883

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

sleeve packing, 4-1/4" x 4-1/2" x 1/8"

4шт.

10

A41969

RING

KIT piston re-ring, set of 6, Includes Ref: 11

1шт.

11

A41967

RING, PISTON

KIT re-ring, set of 1

6шт.

12

A24517

PIN

KIT wrist, set of 2 with retainer rings, Includes Ref: 13

3шт.

13

T28550

SNAP RING,1.50", Int, #150

wrist pin 1.50", Int, #150

4шт.

16

A62952

ROD

ASSY connecting, first used Serial No. 2331513, Includes Ref: 17, 18

6шт.

16

A58862

ROD

ASSY connecting, used prior to engine Serial No. 2331513, Includes Ref: 17, 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING wrist pin, order Ref. 20, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

connecting rod cap, 1/2" NF x 2-3/16" spec.

2шт.

20

A21722

BUSHING

KIT wrist pin, set of 2, connecting rod

3шт.

21

A43173

BEARING LINER

SET connecting rod, standard, set of 2, Replaces: A42493

6шт.

21

A43174

BEARING LINER

SET connecting rod, -.002", set of 2, Replaces: A42478

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

SET connecting rod, -.010", set of 2, Replaces: A42479

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

SET connecting rod, -.020", set of 2, Replaces: A42480

6шт.

21

A43177

BEARING LINER

SET connecting rod, -.030", set of 2, Replaces: A42481

6шт.
