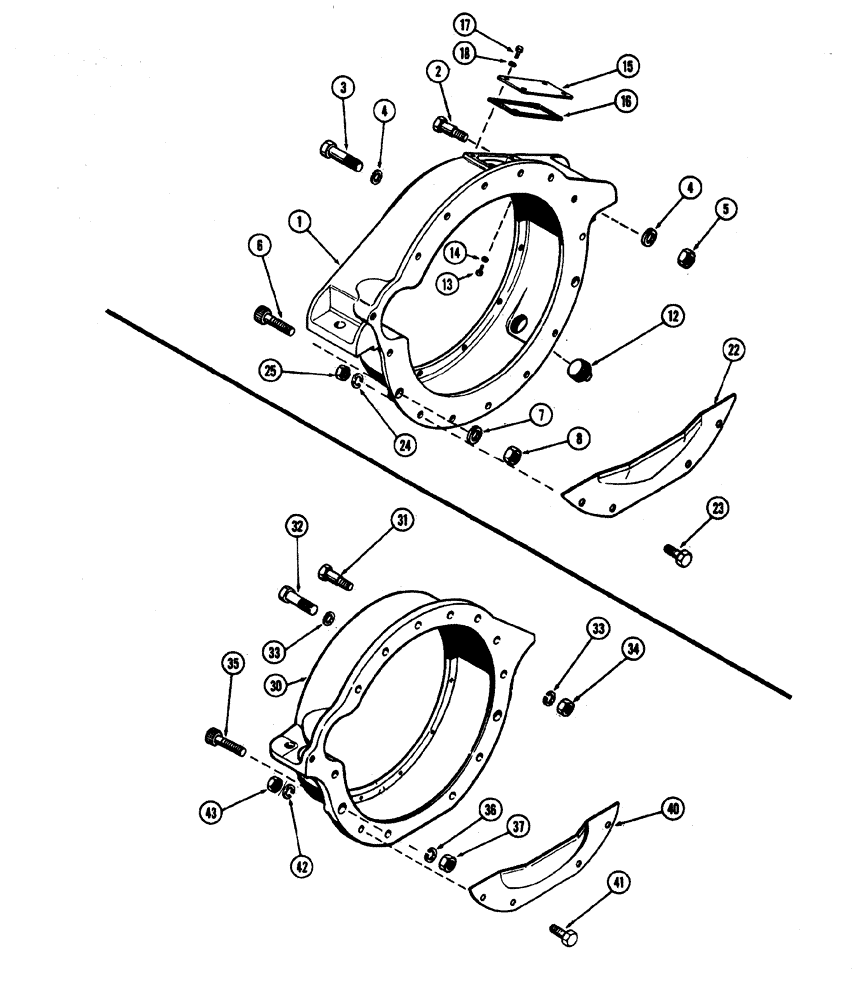

Запчасти Case W20 (023A) - FLYWHEEL HOUSING (401B) ENGINE 1ST USED TRACTOR S/N 91129017 USED WITH FLEX PLATE DRIVE (02) - ENGINE

1

A21040

HOUSING

fywheel, first used trac. Serial No. 9112917, used with flex plate drive

1шт.

2

A61040

STEP BOLT

shoulder, 1/2" NC x 1-3/8", first used trac. Serial No. 9112917, used with flex plate drive

1шт.

2

A61041

STEP BOLT

shoulder, 1/2" NC x 2-13/16", first used trac. Serial No. 9112917, used with flex plate drive

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

First used tractor S/N 9112917, used with flex plate drive

3шт.

3

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

First used tractor S/N 9112917, used with flex plate drive

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

First used tractor S/N 9112917, used with flex plate drive

2шт.

4

92-8

LOCK WASHER,1/2"

First used trac. Serial No. 9112917, used with flex plate drive

8шт.

5

25-108

NUT,1/2"-13, G5

Hex, First used trac. S/N 9112917, used with flex plate drive

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

3/4 x 3" NC, 12 pt hd,, first used trac. Serial No. 9112917, used with flex plate drive

2шт.

7

92-12

LOCK WASHER,3/4"

First used tractor S/N 9112917, used with flex plate drive

2шт.

8

25-1012

NUT,3/4"-10, G5

First used tractor S/N 9112917, used with flex plate drive

2шт.

12

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

housing, 1-1/4" PT, square head, first used trac. Serial No. 9112917, used with flex plate drive

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

PLUG housing, first used Trac. S/N 9112917, used with flex plate drive

2шт.

14

92-4

LOCK WASHER,1/4"

First used tractor S/N 9112917, used with flex plate drive

2шт.

15

A22584

COVER

PLATE hand hole, first used trac. Serial No. 9112917, used with flex plate drive

1шт.

16

A22585

GASKET

hand hole plate, first used trac. Serial No. 9112917, used with flex plate drive

1шт.

17

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

First used tractor S/N 9112917, used with flex plate drive

4шт.

18

92-5

LOCK WASHER,5/16"

lock, 5/8", first used trac. Serial No. 9112917, used with flex plate drive

4шт.

22

A58931

GUARD

SHIELD dust, first used trac. Serial No. 9112917, used with flex plate drive

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

First used tractor S/N 9112917, used with flex plate drive

4шт.

24

92-8

LOCK WASHER,1/2"

First used trac. Serial No. 9112917, used with flex plate drive

4шт.

25

25-108

NUT,1/2"-13, G5

Hex, First used trac. S/N 9112917, used with flex plate drive

4шт.

30

A58684

SPARE PART flywheel, used prior to trac. Serial No. 9112917, used with ring plate drive

1шт.

31

A61040

STEP BOLT

dowel, housing to block, 1/2" NC x 1-3/8", used prior to trac. Serial No. 9112917, used with ring plate drive

1шт.

31

A61041

STEP BOLT

dowel, housing to block, 1/2" NC x 2-13/16", used prior to trac. Serial No. 9112917, used with ring plate drive

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used prior to tractor S/N 9112917, used with ring plate drive

4шт.

32

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

Used prior to tractor S/N 9112917, used with ring plate drive

3шт.

33

92-8

LOCK WASHER,1/2"

Used prior to trac. Serial No. 9112917, used with ring plate drive

9шт.

34

25-108

NUT,1/2"-13, G5

Hex, Used prior to trac. S/N 9112917, used with ring plate drive

9шт.

35

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

housing, 3/4 x 3" NC, 12 pt. hd., used prior to trac. Serial No. 9112917, used with ring plate drive

2шт.

36

92-12

LOCK WASHER,3/4"

Used prior to tractor S/N 9112917, used with ring plate drive

2шт.

37

25-1012

NUT,3/4"-10, G5

Used prior to tractor S/N 9112917, used with ring plate drive

2шт.

40

A58931

GUARD

SHIELD dust, flywheel, used prior to trac. Serial No. 9112917, used with ring plate drive

1шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used prior to tractor S/N 9112917, used with ring plate drive

4шт.

42

92-8

LOCK WASHER,1/2"

Used prior to trac. Serial No. 9112917, used with ring plate drive

4шт.

43

25-108

NUT,1/2"-13, G5

Hex, Used prior to trac. S/N 9112917, used with ring plate drive

4шт.
