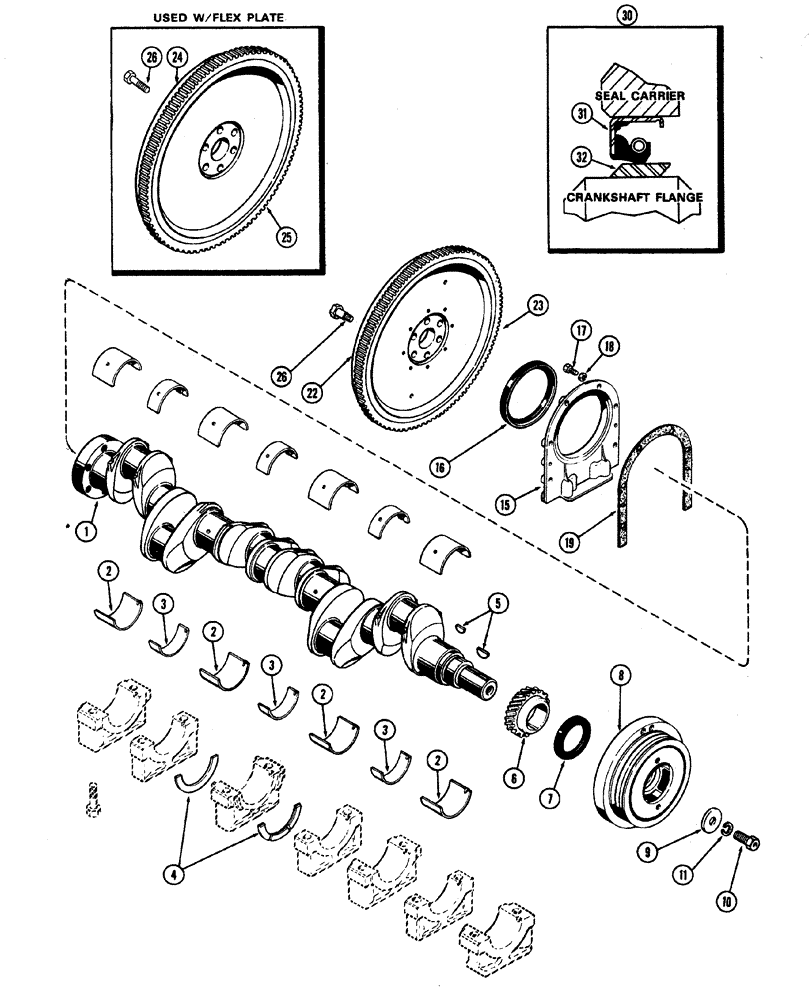

Запчасти Case W20 (022) - (401B) DIESEL ENGINE CRANK SHAFT AND FLYWHEEL (02) - ENGINE

1

A58860

CRANKSHAFT

1шт.

2

A43163

BEARING LINER

SET main, wide, set of 2, Standard, Replaces: A42490

4шт.

2

A43164

BEARING LINER

SET main, wide, set of 2, -.002", Replaces: A42486

4шт.

2

A43165

BEARING LINER

SET main, wide, set of 2, -.010", Replaces: A42487

4шт.

2

A43166

BEARING LINER

SET main, wide, set of 2, -.020", Replaces: A42488

4шт.

2

A43167

BEARING LINER

SET main, wide, set of 2, -.030", Replaces: A42489

4шт.

3

A43158

BEARING LINER

SET main, narrow, set of 2, Standard, Replaces: A42492

3шт.

3

A43159

BEARING LINER

SET main, narrow, set of 2, -.002", Replaces: A42482

3шт.

3

A43160

BEARING LINER

SET main, narrow, set of 2, -.010", Replaces: A42483

3шт.

3

A43161

BEARING SET

SET main, narrow, set of 2, -.020", Replaces: A42484

3шт.

3

A43162

BEARING LINER

SET main, narrow, set of 2, -.030", Replaces: A42485

3шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

thrust, center bearing, Standard, 0.185"

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

thrust, center bearing, Oversize, 0.191"

2шт.

5

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear and pulley

2шт.

6

A66404

GEAR

crankshaft, Replaces: A58573

1шт.

7

A62049

OIL SEAL

oil, crankshaft, front, 2-5/8" x 3-5/8" x 1/2"

1шт.

8

A61669

PULLEY

fan and alternator drive

1шт.

9

A27903

WASHER

pulley, 5/8" x 2-1/8" x 1/4"

1шт.

10

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley

1шт.

11

92-10

LOCK WASHER,5/8"

1шт.

15

A57457

RETAINER

rear oil seal

1шт.

16

A62050

OIL SEAL

oil, crankshaft, rear, 4-3/4" x 5-3/4" x 1/2", see wear seal kit, Ref. 28

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A32830

GASKET

rear oil seal retainer

1шт.

22

A58683

FLYWHEEL

SPARE PART ASSY used w/ring plate drive, used prior to tractor serial No. 9112917, Includes Ref: 23

1шт.

23

A27920

GEAR

ring

1шт.

24

A65049

FLYWHEEL

ASSY used w/flex plate drive, first used tractor serial No. 9112917, Includes Ref: 25

1шт.

25

A27920

GEAR

ring

1шт.

26

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, flywheel, 5/8" x 1-1/2" NF

6шт.

30

A43194

KIT

WEAR SEAL oil, crankshaft, rear, Includes Ref: 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, rear, 4-7/8" x 5-3/4" x 1/2", wear kit

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE wear, 4-3/4" x 4-7/8" x 9/16", seal kit

1шт.
