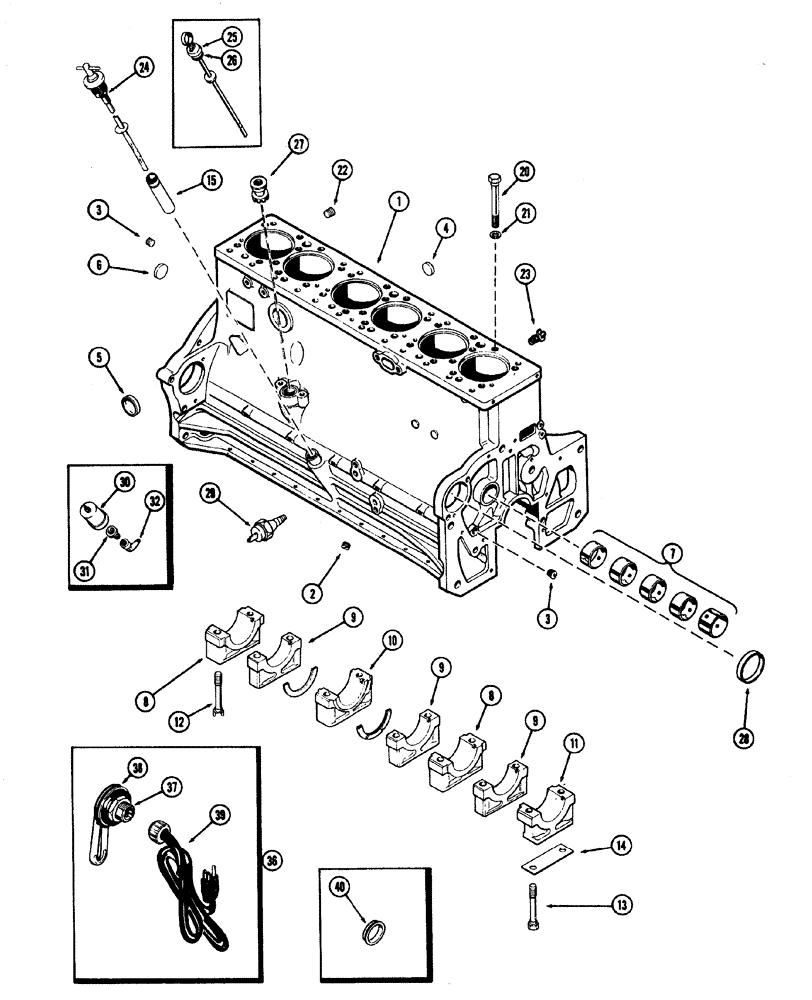

Запчасти Case W20 (021A) - CYLINDER BLOCK (401BD) DIESEL ENGINE USED PRIOR TO ENGINE S/N 256833 (02) - ENGINE

A41962

BLOCK

ASSY cylinder, short, casting No. A58511, includes piston assy, connecting rods and bearings, crankshaft and bearings, camshaft and timing gears, Includes Ref: 1-15

1шт.

1

A41963

SKELETON ENGINE

BLOCK ASSY cylinder, stripped, Includes Ref: 2-15

1шт.

2

221-1041

PLUG

slotted head, oil gallery, 1/8" PT

6шт.

3

321-1843

PLUG hex socket head, oil gallery, 3/8" PT

3шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

cup type, water gallery, 1-3/8"

3шт.

5

A58569

PLUG,Cup, 2", Stainless

cup type, heater hole, 2"

1шт.

6

A24361

PLUG

cup type, camshaft hole, 2-3/8"

1шт.

7

A23544

BUSHING

KIT camshaft

1шт.

8

A58783

BEARING CAP

main bearing, wide

2шт.

9

A58784

BEARING CAP

main bearing, narrow

3шт.

10

A58785

BEARING CAP

main bearing, thrust

1шт.

11

A58782

CAP

main bearing, front

1шт.

12

A58566

STEP BOLT

bearing caps, 5/8" NC x 4-1/2"

12шт.

13

A58567

STEP BOLT

front bearing cap, 5/8" NC x 6-13/16"

2шт.

14

A58859

SHIM,.005" Thk

Oil pump to front brg. cap

1шт.

15

A34540

TUBE

SOCKET oil filler and dipstick

1шт.

20

A62732

STEP BOLT

cylinder head to block, 5/8" NC x 5-5/8"

30шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

cylinder head bolt, 5/8 x 1 x 3/16"

30шт.

22

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

hex socket head, turbo drain hole, 3/4" P.T.

1шт.

23

A23656

COCK, DRAIN

VALVE water, cylinder block

1шт.

24

A20739

GAUGE

DIPSTICK oil level, Turn-Tite, Replaces: A57049

1шт.

25

A57049

DIPSTICK

ASSY oil level, order A20739, Includes Ref: 26

1шт.

26

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

3/4" x 1" x 1/8"

2шт.

27

A34266

DRIVE

ASSY tachometer

1шт.

28

41-1052

PLUG,Cup, 3 1/4"

cup type, auxiliary drive opening, 3-1/4"

1шт.

29

A66737

SWITCH, PRESSURE

PRESSURE SWITCH UNIT sending, engine oil pressure, first used engine serial No. 2543315

1шт.

30

A35031

SENDER UNIT

SENDER sending, engine oil pressure, used prior to engine serial No. 2543315

1шт.

31

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

reducing, 3/8" to 1/8", used w/A35031 unit

1шт.

32

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Used w/A35031 unit

1шт.

36

A42279

HEATER

KIT cylinder block, Includes Ref: 37-39

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT heater, order A42279, block

1шт.

38

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

element, block heater, 1-3/4" x 2" x 1/8"

1шт.

39

A42297

LAMP

CORD w/plugs, 60" long, block heater

1шт.

A44006

SLEEVE

KIT block heater adapter, Includes Ref: 40

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE for 2-1/16" diameter, block heater hole

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE for 2-1/8" diameter, block heater hole

1шт.
