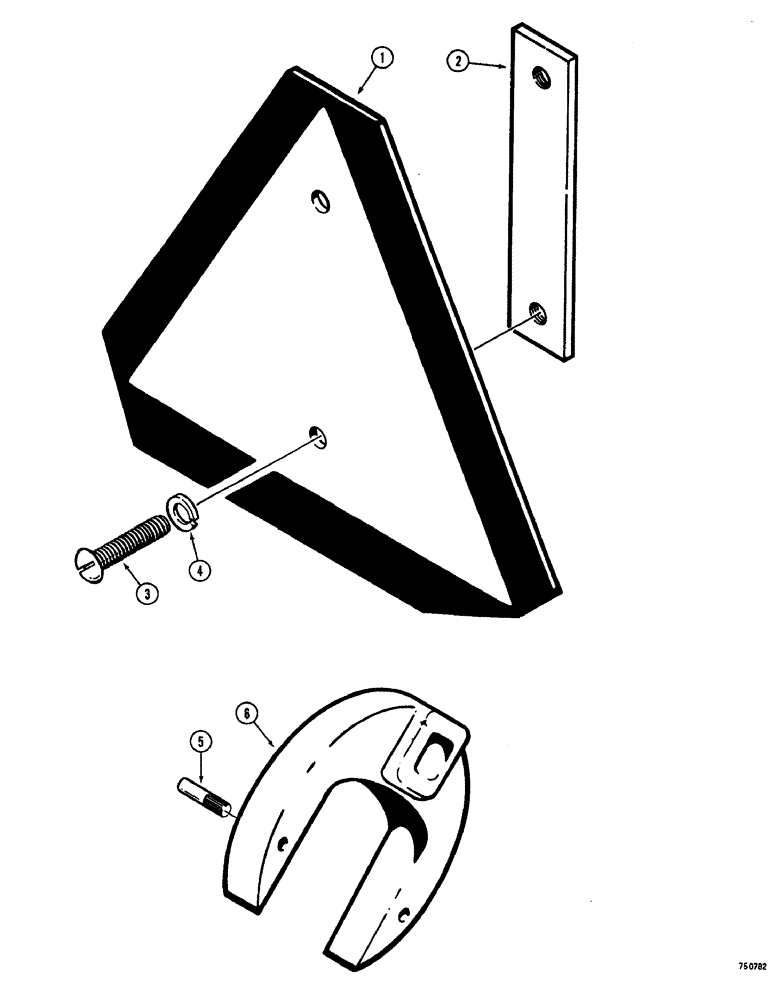

Запчасти Case W20 (303C) - SLOW MOVING VEHICLE EMBLEM AND TOOLS (09) - CHASSIS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Includes Ref: 1

1шт.

1

321-1751

DECAL

slow moving vehicle emblem

1шт.

2

L16093

PLATE

mounting emblem

1шт.

3

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

machine, pan head (#10 - 24 NC x 1-1/2")

2шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

5

D44113

OPEN END WRENCH

spanner (To service steering cylinders, See Figures: 216-218), tools

1шт.

5

D44115

OPEN END WRENCH

spanner (To service tilt cylinders, See Figures: 298, 299A), tools

1шт.

5

G33203

TOOL

spanner (To service lift cylinders, See Figures: 294, 296), Includes Ref: 6, tools

1шт.

6

D30107

PIN

spanner wrench (D44U3 and D44115 wrenches only), tools

3шт.

6

D44118

SPARE PART

PIN - spanner wrench (G33203 wrench only), tools

3шт.

7

T53322

SPARE PART BRACKET - lift and tie down (Not shown), tools

4шт.
