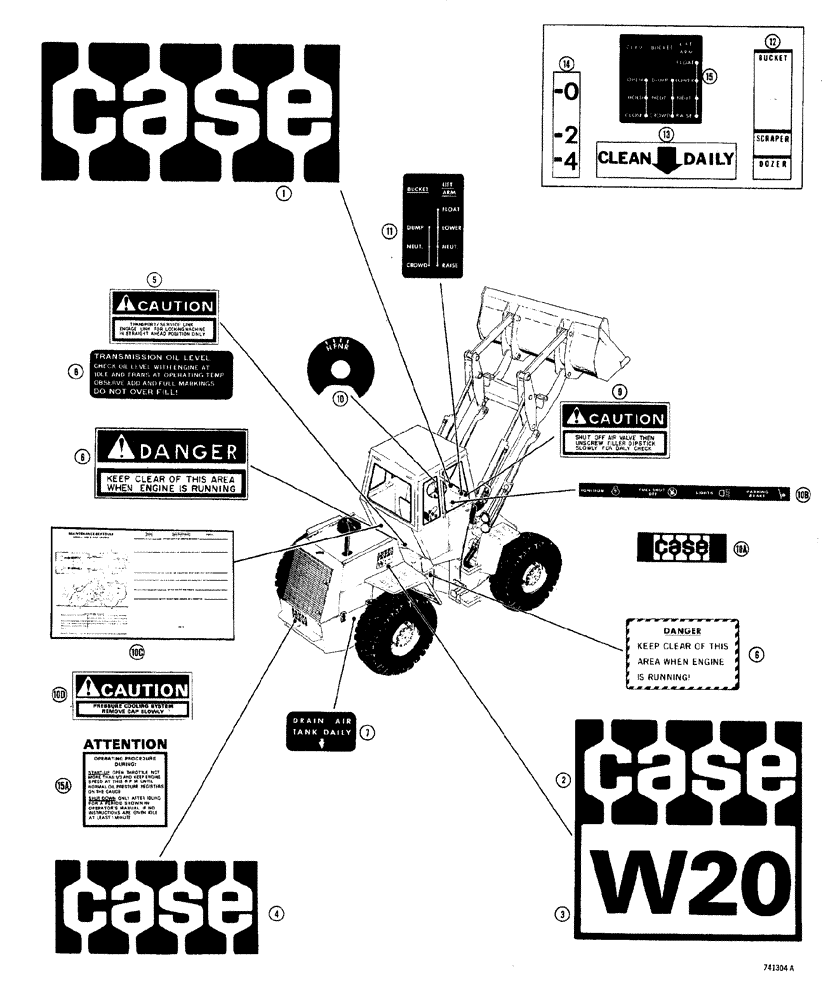

Запчасти Case W20 (302) - DECALS EARLY PRODUCTION (09) - CHASSIS

L33607

KIT

decal, W20 loader, Includes Ref: 1-12

1шт.

1

321-1445

DECAL

"CASE" (Front frame above access cover) Reflective, when stock is exhausted, order 321-24

1шт.

1

321-2429

EMBLEM

"CASE" (Front frame above access cover) Non- reflective

1шт.

2

321-1443

DECAL

"CASE" over "W20" (Hood side panels) Reflective, when stock is exhausted, order 321-157

2шт.

2

321-1574

DECAL

"CASE" over "W20" (Hood side panels) Non- reflective

2шт.

3

321-1798

DECAL

"W20" (Hood sides)

2шт.

4

321-1442

DECAL

SPARE PART "CASE" (Below grille between rear lights) Reflective, when stock is exhausted, order 321-

1шт.

4

321-2427

EMBLEM

"CASE" (Below grille between rear lights) Non- reflective

1шт.

5

321-1078

DECAL

safety link (R.H. rear frame at link)

1шт.

6

321-1198

DECAL

warning

2шт.

7

321-1077

DECAL

air drain location

1шт.

8

321-1980

DECAL

transmission oil level

1шт.

9

321-1074

DECAL

hydraulic tank daily check

1шт.

10

321-1047

DECAL

transmission shift control (Steering column)

1шт.

10a

L57685

DECAL

"CASE" instrument panel

1шт.

10b

321-2613

DECAL

instrument panel cluster (If used)

1шт.

10c

321-2779

DECAL

Maintenance Chart

1шт.

10d

321-3061

DECAL

warning, pressure cap

1шт.

11

321-1075

DECAL

loader control (Upper R.H. rear front frame)

1шт.

12

321-1663

DECAL

bucket positioning

1шт.

13

A18673

DECAL

clean daily

1шт.

14

S81109

DECAL

clam opening

1шт.

15

321-2090

DECAL

loader control, machines with Drott bucket

1шт.

15a

321-1981

DECAL

turbo charger

1шт.
