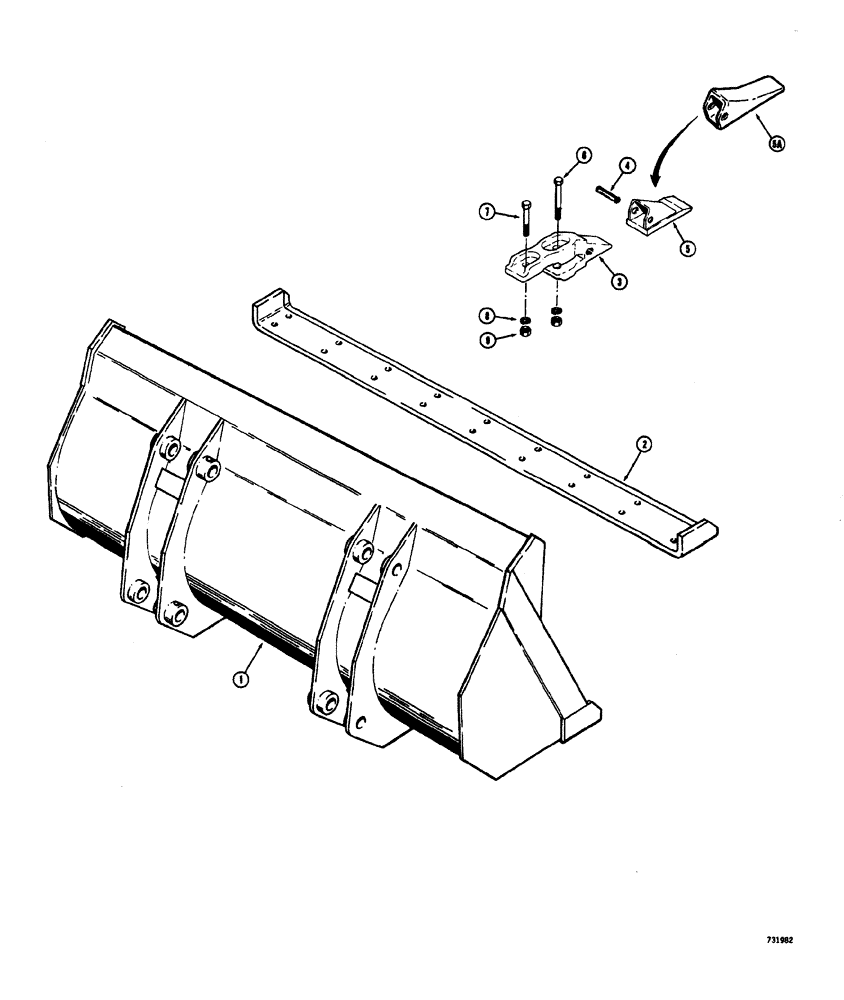

Запчасти Case W20 (270) - LOADER BUCKET, 1-3/4, 2 AND 2-1/2 CU. YD. BUCKET (92.6" WIDE) MACHINERY ITEM (09) - CHASSIS

L46621

BUCKET ASSEMBLY - loader, 1-3/4 cu. yd., Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1-3/4 cu. yd.

1шт.

2

L46613

BLADE

cutting edge - bucket, 1-3/4 cu. yd.

1шт.

L46622

BUCKET ASSEMBLY - loader, 2 cu. yd., Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 cu. yd.

1шт.

2

L4661J

CUTTING EDGE - bucket, 2 cu. yd.

1шт.

L48135

BUCKET ASSEMBLY - loader, 2-1/2 cu. yd., Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2-1/2 cu. yd.

1шт.

2

L46613

BLADE

cutting edge - bucket, 2-1/2 cu. yd.

1шт.

L48497

TOOTH

ASSEMBLY - bucket, Includes Ref: 3-5

9шт.

3

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

4

D39448

PIN

flex - tooth, bucket

1шт.

5

D39090

POINT

tooth (Fabricated), bucket

1шт.

5a

L55608

POINT

tooth (Forced), bucket

9шт.

6

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth

9шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", bucket teeth

9шт.

8

92-10

LOCK WASHER,5/8"

Bucket teeth

18шт.

9

25-1010

NUT,5/8"-11, G5

Bucket teeth

18шт.
