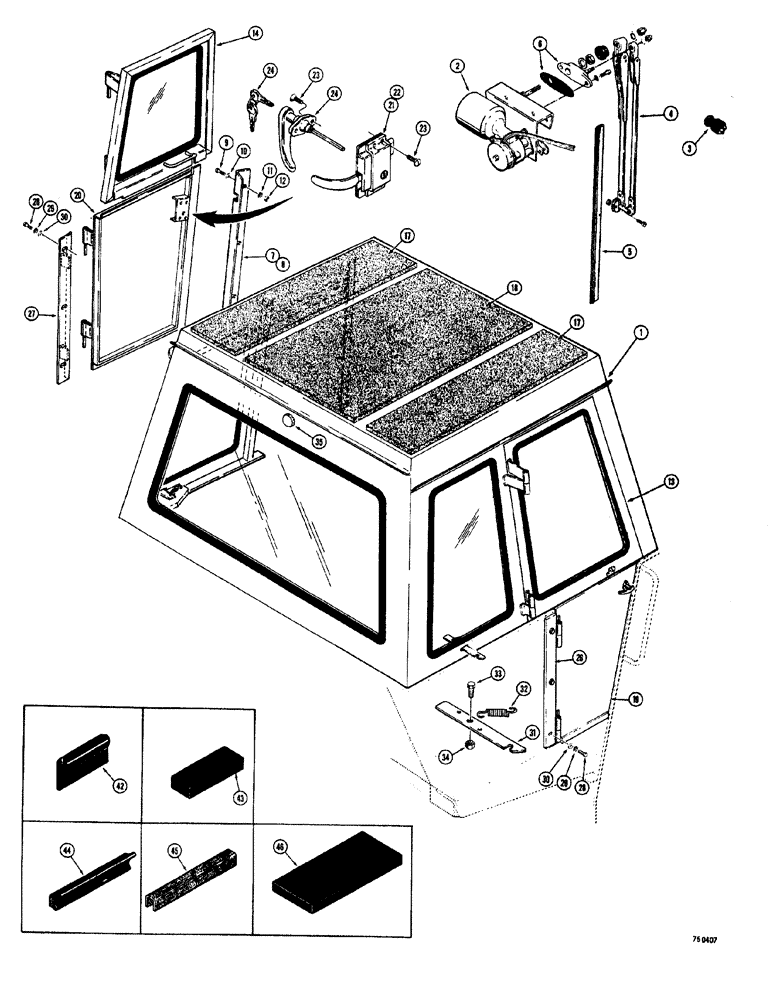

Запчасти Case W20 (259A) - L57831 OPERATORS CAB (09) - CHASSIS

L57831

CAB - ROPS (Machinery item) Sims #1000-347, Includes Ref: 1-35

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

L35259

WIPER MOTOR

SPARE PART has bullet terminals (Use F93455 motor and F63532 switch)

1шт.

2

F93455

MOTOR, ELECTRIC

wiper has spade terminals

1шт.

3

L35743

SWITCH

L35259 motor

1шт.

3

F63532

SWITCH

F93455 motor

1шт.

4

L35260

ARM

windshield wiper (20")

1шт.

5

L35261

BLADE

windshield wiper (20")

1шт.

6

L35753

ADAPTER

double arm wiper

1шт.

7

D70406

SPARE PART STRIKER - lower R.H. front

1шт.

8

D66500

SPARE PART STRIKER - lower L.H. front

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

195-104

WASHER,3/8"

flat () Zinc plated 3/8"

6шт.

11

192-21

LOCK WASHER,3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

6шт.

13

D66493

DOOR ASSY.

FRAME - upper R.H.

1шт.

14

D66492

DOOR ASSY.

SPARE PART FRAME - upper L.H.

1шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

17

L35803

SPARE PART roof, R.H. and L.H. side

2шт.

18

L35806

SPARE PART roof middle

1шт.

19

D66495

DOOR ASSY.

lower R.H.

1шт.

20

D66494

DOOR ASSY.

SPARE PART lower L.H.

1шт.

21

L35737

LATCH

door inside R.H.

1шт.

22

L35738

LATCH

door inside L.H.

1шт.

23

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

self tapping (#10 x 3/4")

8шт.

24

T42591

HANDLE

ASSEMBLY - outside with keys, Includes Ref: 25

2шт.

25

REF

INSTRUCTION

KEY - order from Sims Co per number on key and handle

2шт.

26

D66497

SPARE PART hinge mounting R.H.

1шт.

27

D66496

SPARE PART hinge mounting L.H.

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

192-21

LOCK WASHER,3/8"

6шт.

30

195-104

WASHER,3/8"

flat () Zinc plated 3/8"

6шт.

31

L35747

LATCH

door hold back

2шт.

32

L35748

SPRING

door hold back

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

131-52

NUT,3/8"-16, GC

hex. lock (3/8" - 16 NC) Zinc plated

2шт.

35

205-28

SPARE PART PLUG - rear window wiper hole

1шт.

36

D70582

SPARE PART ASSEMBLY

1шт.

37

182-240

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

pan head slotted (5/16" - 18 NC x 1/2")

8шт.

38

RESERVED

1шт.

39

RESERVED

1шт.

40

RESERVED

1шт.

41

RESERVED

1шт.

42

L35798

RUBBER

door, bottom (50 ft. roll)

1шт.

43

L35799

RUBBER

SPARE PART self-adhesive, door gasket (50 ft. roll) 3/8" x 5/8"

1шт.

44

L35732

STRIP

weather material - 50 ft. roll

1шт.

45

T35759

SPLIT PIN/SAFETY PIN

SPARE PART WINDLACE MATERIAL - 50 ft. roll

1шт.

46

L35801

FOAM

MOUNTING rubber - 50 ft. roll

1шт.
