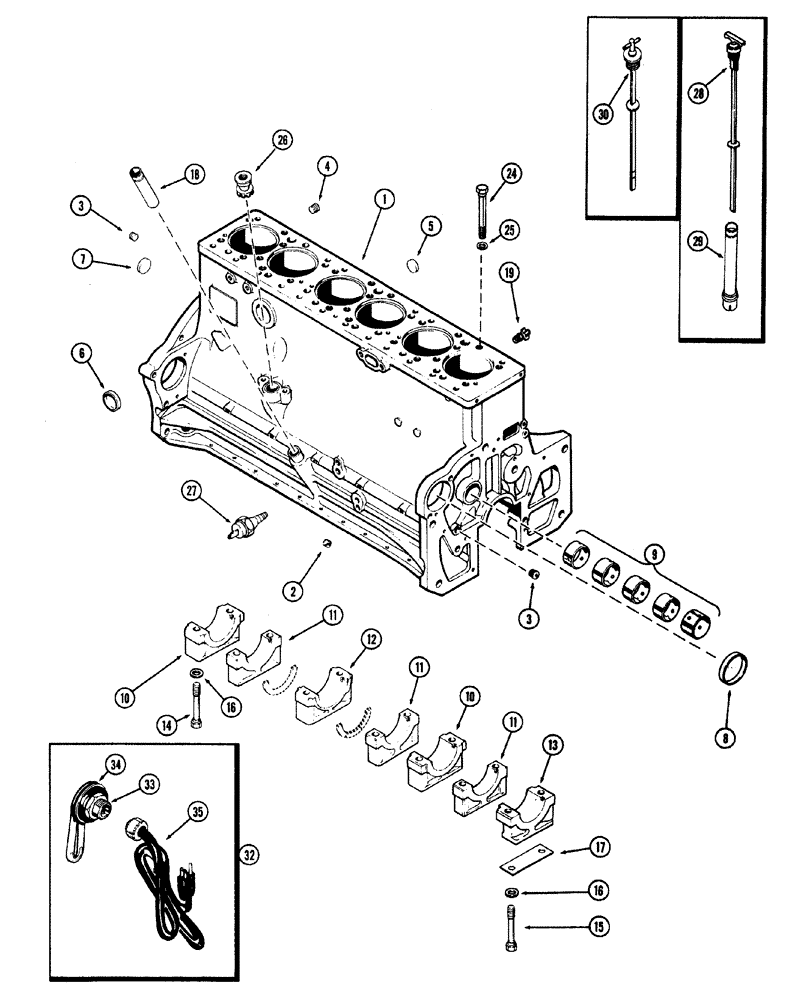

Запчасти Case W20 (020) - CYLINDER BLOCK (401BD) DIESL ENGINE 1ST USED ENGINE S/N 2556833 (02) - ENGINE

A44093

CRANKCASE

BLOCK ASSY cylinder, short, casting No. A66521, includes stripped block, piston assy., connecting rods and bearings, crankshaft and bearings, camshaft and timing gears., Includes Ref: 1-19

1шт.

1

A44094

BLOCK

ASSY cylinder, stripped, Includes Ref: 2-19

1шт.

2

221-1041

PLUG

slotted head, oil gallery, 1/8" PT

6шт.

3

321-1843

PLUG hex socket head, oil gallery, 3/8" PT

4шт.

4

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

hex socket head, turbo drain hole, 3/4" FT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

cup type, water gallery, 1-3/8"

3шт.

6

A58569

PLUG,Cup, 2", Stainless

cup type, heater hole, 2"

1шт.

7

A24361

PLUG

cup type, camshaft hole, 2-3/8"

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

cup type, auxiliary drive hole, 3-1/4"

1шт.

9

A23544

BUSHING

KIT camshaft

1шт.

10

A58783

BEARING CAP

main bearing, wide

2шт.

11

A58784

BEARING CAP

main bearing, narrow

3шт.

12

A58785

BEARING CAP

main bearing, thrust

1шт.

13

A58782

CAP

main bearing, front

1шт.

14

A66948

STEP BOLT

bearing caps, 5/8" NC x 5"

12шт.

15

A66949

STEP BOLT

front bearing cap, 5/8" NC x 7-1/4"

2шт.

16

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

bearing cap bolts, 5/8 x 1 x 3/16"

14шт.

17

A58859

SHIM,.005" Thk

Oil pump to front brg. cap

1шт.

18

A34540

TUBE

SOCKET oil filler and dipstick

1шт.

19

A23656

COCK, DRAIN

VALVE water

1шт.

24

A76638

BOLT

hex, cylinder head to block, 5/8 x 6-1/4" NC

30шт.

25

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

cylinder head bolts, 5/8 x 1 x 3/16"

30шт.

26

A34266

DRIVE

ASSY tachometer

1шт.

27

A66737

SWITCH, PRESSURE

PRESSURE SWITCH UNIT sending, engine oil pressure

1шт.

28

A135414

DIPSTICK

oil level, 15-9/16" long, use with A135461 extension tube, first used engine serial No. 2570670

1шт.

29

A135461

TUBE

SPARE PART extension, used with A135414 dipstick, first used engine serial No. 2570670

1шт.

30

A20739

GAUGE

DIPSTICK oil level, 12-5/16" long, used prior to engine serial No. 2570670

1шт.

32

A44812

HEATER

ASSY cylinder block,, Includes Ref: 33-35

1шт.

33

NSS

NOT SOLD SEPARAT

ELEMENT heater, block

1шт.

34

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

element, 1-3/4" x 2" x 1/8", block heater

1шт.

35

A44813

CABLE EXTENSION

CORD w/plugs, 12" long, block heater

1шт.
