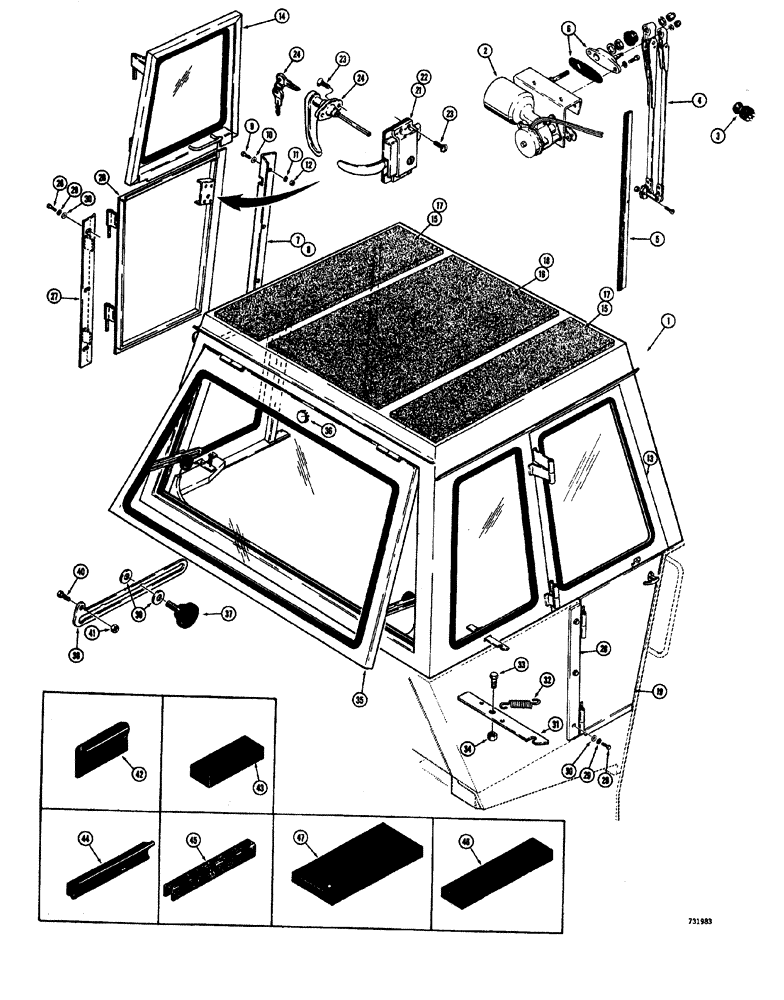

Запчасти Case W20 (256) - L50462 AND L50581 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

1

L50462

CAB - all weather (Machinery item) Sims #1000-135, Includes Ref: 2-47

1шт.

1

L50581

CAB - HOPS (Machinery item) Sims #1000-215, Includes Ref: 2-47

1шт.

2

L35259

WIPER MOTOR

SPARE PART has bullet terminals (Use F93455 motor and F63532 switch)

1шт.

2

F93455

MOTOR, ELECTRIC

wiper, has spade terminals

1шт.

3

L35743

SWITCH

L35259 motor

1шт.

3

F63532

SWITCH

F93455 motor

1шт.

4

L35260

ARM

windshield wiper (20")

1шт.

5

L35261

BLADE

windshield wiper (20")

1шт.

6

L35753

ADAPTER

double arm wiper

1шт.

7

L35790

SPARE PART lower R. H. front

1шт.

8

L35791

SPARE PART lower L.H. front

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

195-104

WASHER,3/8"

flat () Zinc plated 3/8"

6шт.

11

192-21

LOCK WASHER,3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

6шт.

13

L35792

DOOR

SPARE PART FRAME - upper R.H.

1шт.

14

L35793

DOOR

FRAME - upper L.H.

1шт.

15

L35794

SPARE PART roof, side (L50462 cab only)

1шт.

16

L35795

INSULATOR

SPARE PART roof, middle (L50462 cab only)

1шт.

17

L35803

SPARE PART roof side (L50581 cab only)

1шт.

18

L35806

SPARE PART roof middle (L50581 cab only)

1шт.

19

L35796

SPARE PART lower R.H.

1шт.

20

L35797

DOOR

lower L.H.

1шт.

21

L35738

LATCH

door inside R.H.

1шт.

22

L35737

LATCH

door inside L.H.

1шт.

23

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

self-tapping (#10 x 3/4")

12шт.

24

T42591

HANDLE

ASSEMBLY - outside, with keys, Includes Ref: 25

2шт.

25

REF

INSTRUCTION

KEY - order from Sims Co per number on key and handle

2шт.

26

L35804

SPARE PART hinge mounting R.H.

1шт.

27

L35805

SPARE PART hinge mounting L.H.

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

29

193-21

WASHER - med sect lock (3/8") Zinc plated

6шт.

30

195-104

WASHER,3/8"

flat (} Zinc plated 3/8"

6шт.

31

L35800

LATCH ASSY.

door hold back

2шт.

32

L35748

SPRING

door hold back

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

131-52

NUT,3/8"-16, GC

hex lock (3/8" - 16 NC) Zinc plated

2шт.

35

L35802

SPARE PART FRAME - rear, slide out

1шт.

36

205-28

SPARE PART PLUG - rear window wiper hole

1шт.

37

L30087

KNOB

rear window hold out

2шт.

38

T42594

BRACE

ARM - rear window hold out

2шт.

39

195-104

WASHER,3/8"

flat, (Zinc plated) 3/8"

4шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

86625061

NUT,1/4"-20, GB

2шт.

42

L35798

RUBBER

door bottom (50 ft. roll)

1шт.

43

L35799

RUBBER

SPARE PART adhesive, door gasket (50 ft. roll) 3/8" x 5/8"

1шт.

44

L35732

STRIP

WEATHER STRIP MATERIAL - 50 ft. roll

1шт.

45

L35759

SPARE PART MATERIAL - 50 ft. roll

1шт.

46

L35789

SPARE PART L50462 cab only)

1шт.

47

L35801

FOAM

MOUNTING rubber - 50 ft. roll (L50581 cab only)

1шт.
