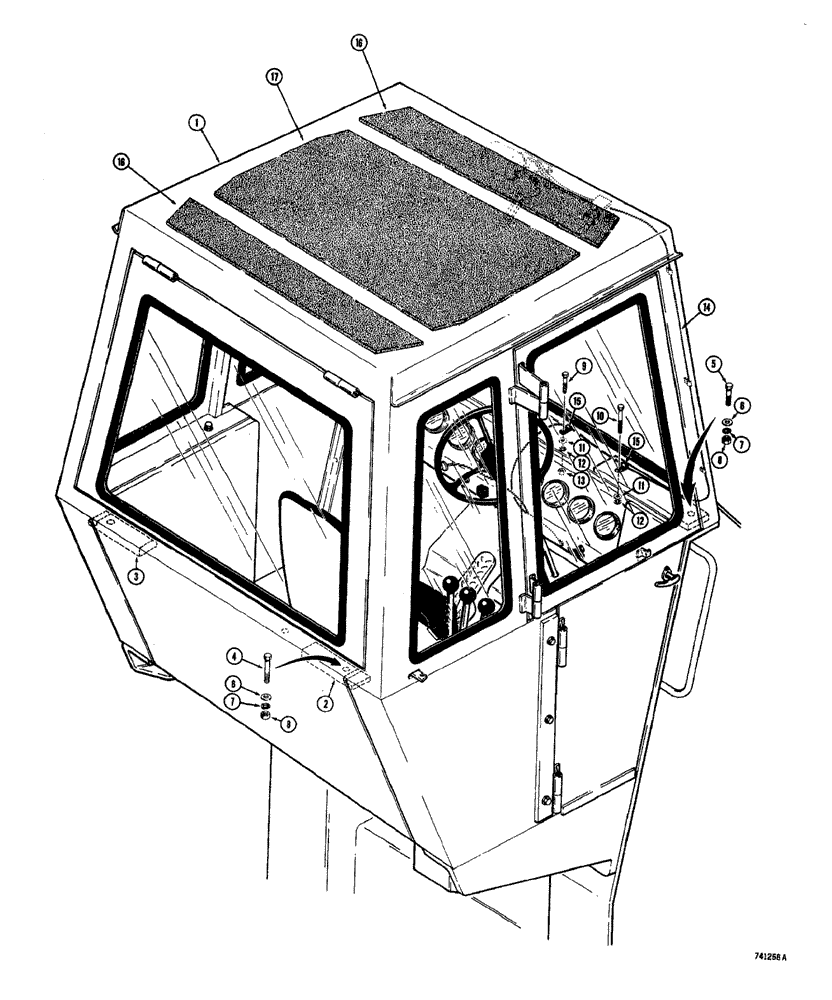

Запчасти Case W20 (254) - ROPS CANOPY AND CAB MOUNTING (09) - CHASSIS

1

L50580

CANOPY - HOPS (Machinery item) Before tractor Sn 9109680, order L50621 and L50822 reinforcement plates separately

1шт.

1

REF

INSTRUCTION

CABS - See Figures: 256, 259A for service and parts

1шт.

1

L59652

CANOPY - HOPS (Machinery item) Us d on tractor Sn 9115403 and after

1шт.

KIT - converts L59652 canopy to L57831 cab (Machinery item).

1шт.

2

L50621

SPARE PART reinforcement, canopy mounting, R.H. Used when L50580 canopy or L50581 cab is ordered prior to tractor Sn 9109680

1шт.

May be purchased by ordering L80547 reinforcement kit.

1шт.

3

L50622

SPARE PART reinforcement, canopy mounting, L.H. Used when L50580 canopy or L50581 cab is ordered prior to tractor Sn 9109680

1шт.

May be purchased by ordering L80547 reinforcement kit.

1шт.

4

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

HHCS - 3/4" - 10 NC x 3-3/4" (Grade 8) HOPS only

2шт.

4

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

L50462 all weather cab only

2шт.

5

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 3-1/2" (Grade 8) ROPS only

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(L50462 all weather cab only)

2шт.

5a

95-8

WASHER,1/2"

Flat, L50462 all weather cab only

1шт.

5b

92-8

LOCK WASHER,1/2"

L50462 all weather cab only

2шт.

5c

25-108

NUT,1/2"-13, G5

Hex, L50462 all weather cab only

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

4шт.

8

131-656

LOCK NUT,5/8"-11, GB

hex., lock (3/4" - 10 NC)

4шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

11

95-8

WASHER,1/2"

standard wrot

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

Hex

4шт.

14

L50619

SPARE PART wiring heater and wiper, before tractor Sn 9115403

1шт.

14

L59392

SPARE PART wiring heater and wiper tractor Sn 9115403 and after

1шт.

15

49836

CLAMP

harness (Cab only)

2шт.

16

L35803

SPARE PART HEADLINER - L59652 canopy

2шт.

17

L35806

SPARE PART HEADLINER - L59652 canopy

2шт.
