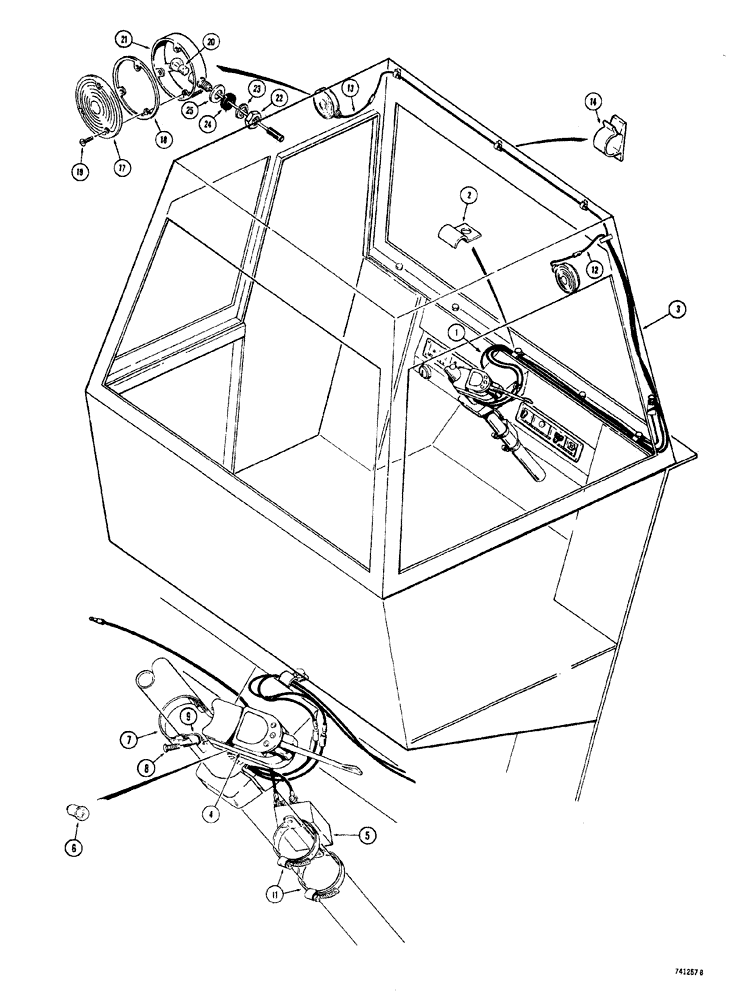

Запчасти Case W20 (253A) - CAB WITH TURN SIGNAL AND FLASHER LIGHTS USED ON TRACTOR S.N. 9115403 AND AFTER (09) - CHASSIS

1

L59392

SPARE PART wiring, heater and wiper

1шт.

2

49836

CLAMP

harness

2шт.

3

REF

INSTRUCTION

CAB - See Figures: 256, 259A for service

1шт.

L59394

SIGNAL

ASSEMBLY - turn and flash, Includes Ref: 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

5

L32657

FLASHER UNIT

turn and signal unit

1шт.

6

A14928

BULB

directional indicator (24 volt)

1шт.

7

L32658

STRAP

mounting, signal

1шт.

L32659

KIT

HARDWARE - mounting, turn signal, Includes Ref: 8, 9

1шт.

8

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

flat head machine (#8 - 32 NC x 1")

2шт.

9

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

10

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Signal mounting

2шт.

12

L17326

WIRE HARNESS

ASSEMBLY - signal to flasher, R.H.

1шт.

13

L17325

WIRE signal to flasher, LH

1шт.

14

L54606

CLIP

CLAMP - wire

3шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

L43738

INTERIOR LIGHT

flasher, double face, Includes Ref: 17-25

2шт.

L32214

LENS

KIT - light, flasher, Includes Ref: 17-19

2шт.

17

NSS

NOT SOLD SEPARAT

LENS - light flasher

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

20

L32257

BULB

flasher light

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

22

129-125

NUT,1/2"-20, G5

1шт.

23

192-23

LOCK WASHER,1/2"

1шт.

24

L32256

WASHER

rubber

1шт.

25

195-105

WASHER,7/16"

standard wrot (Zinc plated)

1шт.

26

L50658

SPARE PART rear windshield wiper (Not shown)

1шт.

27

L33839

ELECTRIC MOTOR

wiper, rear windshield (Not shown)

1шт.

28

T42555

ARM

wiper (Not shown)

1шт.

29

T42556

WINDSHIELD WIPER

BLADE (Not shown)

1шт.
