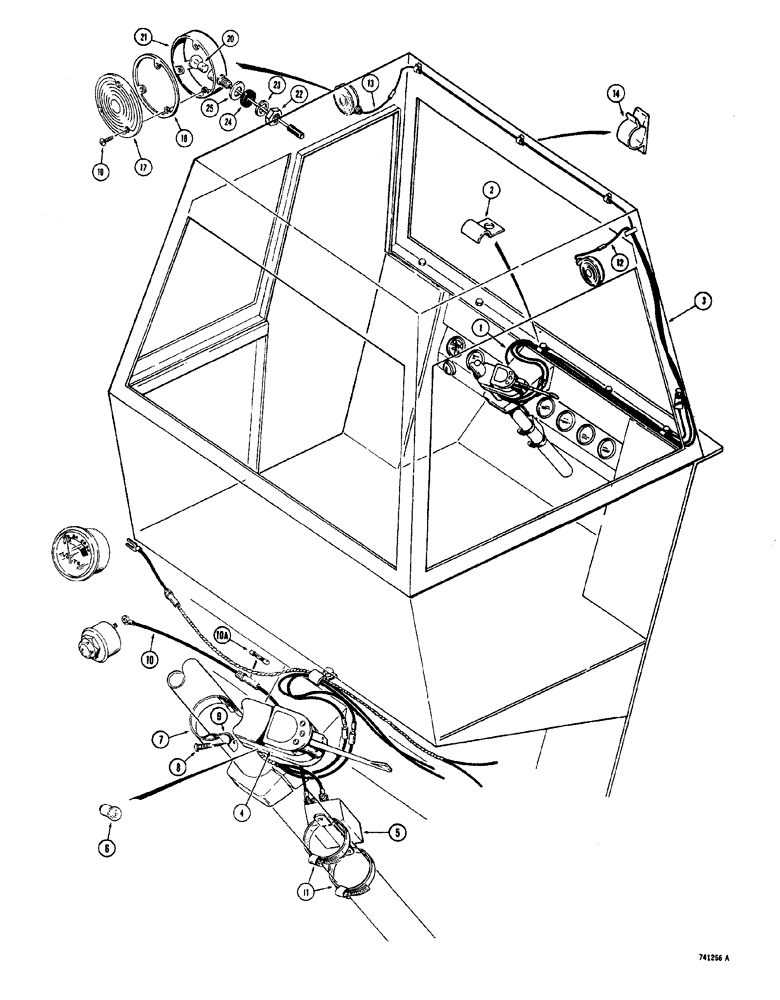

Запчасти Case W20 (252) - CAB WITH TURN SIGNAL AND FLASHER LIGHTS BEFORE TRACTOR S.N. 9115403 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
L50619
SPARE PART wiring, heater and wiper
1шт.
2
49836
CLAMP
harness
2шт.
3
REF
INSTRUCTION
CAB - See Figures: 256, 259A for service
1шт.
L52823
SIGNAL
turn and flasher (Used L59393 wire and L59394 bwitch for service
1шт.
L59394
SIGNAL
ASSEMBLY - turn and flash, Includes Ref: 4-9
1шт.
4
NSS
NOT SOLD SEPARAT
SWITCH - turn signal
1шт.
5
L32657
FLASHER UNIT
signal
1шт.
6
A14928
BULB
direction indicator (24 volt)
1шт.
7
L32658
STRAP
mounting signal
1шт.
L32659
KIT
HARDWARE - mounting turn signal, Includes Ref: 8, 9
1шт.
8
169-148
SCREW,Sl Fil Hd, #8 - 32 x 1"
flat head machine (#8 - 32 NC x 1")
2шт.
9
NSS
NOT SOLD SEPARAT
CLIP - strap mounting
2шт.
L59393
ELECTRICAL WIRE
WIRE assembly, Includes Ref: 10, 10A
1шт.
10
NSS
NOT SOLD SEPARAT
WIRE ASSEMBLY - without fuse
1шт.
10a
223-6
FUSE,6 Amp, Type 3AG
6 amp
1шт.
11
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
Signal mounting
2шт.
12
L17326
WIRE HARNESS
ASSEMBLY - signal to flasher, R.H.
1шт.
13
L17325
WIRE signal to flasher, LH
1шт.
14
L18299
CLAMP
wire
3шт.
15
RESERVED
1шт.
16
RESERVED
1шт.
L43738
INTERIOR LIGHT
flasher, double face, Includes Ref: 17-25
2шт.
L32214
LENS
KIT - light, flasher, Includes Ref: 17-19
2шт.
17
NSS
NOT SOLD SEPARAT
LENS - light flasher
1шт.
18
NSS
NOT SOLD SEPARAT
GASKET - lens
1шт.
19
NSS
NOT SOLD SEPARAT
SCREW - special
3шт.
20
L32257
BULB
flasher light
1шт.
21
NSS
NOT SOLD SEPARAT
BODY - light, flasher (Double face)
1шт.
22
129-125
NUT,1/2"-20, G5
1шт.
23
192-23
LOCK WASHER,1/2"
1шт.
24
L32256
WASHER
rubber
1шт.
25
195-105
WASHER,7/16"
standard wrot (Zinc plated)
1шт.
26
L50658
SPARE PART rear windshield wiper (Not shown)
1шт.
27
L33839
ELECTRIC MOTOR
wiper, rear windshield (Not shown)
1шт.
28
T42555
ARM
wiper (Not shown)
1шт.
29
T42556
WINDSHIELD WIPER
BLADE - (Not shown)
1шт.
Выбрано товаров: 36
