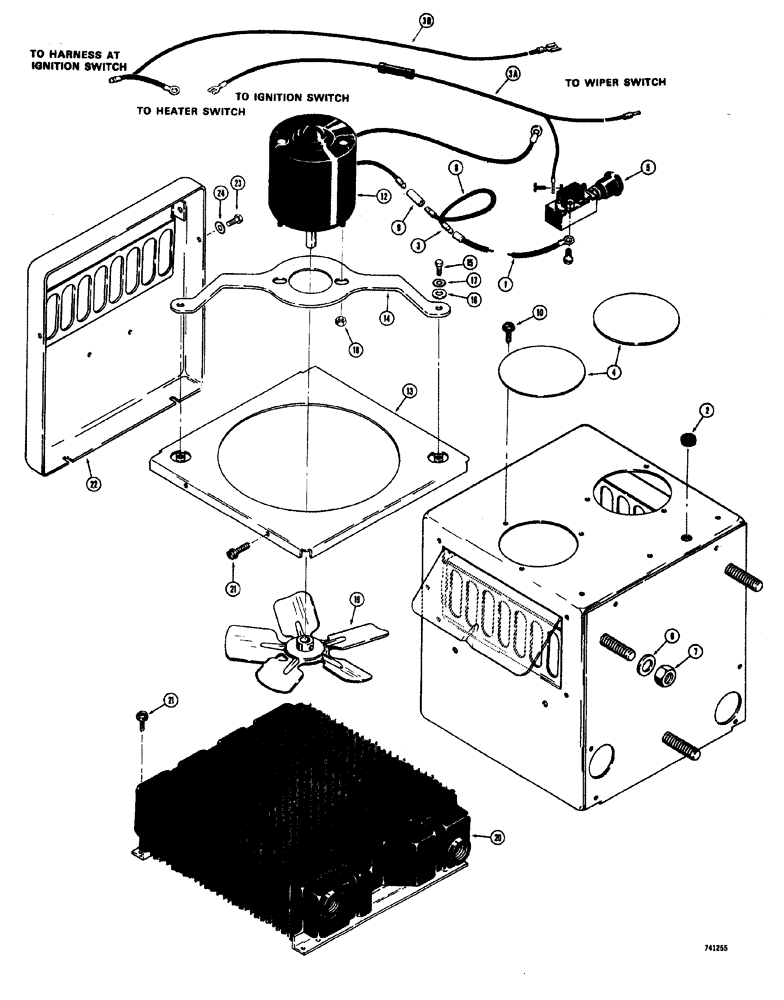

Запчасти Case W20 (250) - CAB HEATER AND WIRING (09) - CHASSIS

1

L50065

SPARE PART heater to heater switch

1шт.

2

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

heater wire

1шт.

3

R18653

TERMINAL STRIP

CONNECTOR - wire, male bullet

1шт.

3a

L50619

SPARE PART wiring heater and defroster fan switch (Before tractor Sn 9115403)

1шт.

3b

T59392

winner heater and defroster fan switch (Tractor Sn 9115403 and after)

1шт.

L50607

SPARE PART AND RELATED PARTS, Includes Ref: 4-24

1шт.

4

L50606

COVER

defroster outlet

2шт.

5

L33827

SWITCH

heater

1шт.

6

195-103

WASHER,5/16"

plain (3/8") Zinc plated

3шт.

7

129-122

NUT,5/16"-24, G5

(Heater mounting)

3шт.

L33826

HEATER ASSY.

ASSEMBLY - cab, Includes Ref: 8-24

1шт.

8

L33835

SPARE PART lead, at heater

1шт.

9

T42581

SPARE PART WIRE lead

1шт.

10

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

special, defroster outlet cover mounting

6шт.

11

L33828

SHELL

SPARE PART HOUSING - heater

1шт.

12

L33829

MOTOR HOUSING

heater, 24 volt

1шт.

13

L33830

PLATE

shroud

1шт.

14

L33831

BRACKET

SPARE PART motor

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS - 1/4" - 13 NC x 1/2" (Zinc plated)

2шт.

16

195-510

WASHER,#8

plain (3/16") Zinc plated

2шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

internal external Shakeproof (1/4")

2шт.

18

129-16

NUT,#8-32

2шт.

19

L33832

FAN

heater

1шт.

20

L33833

CORE

heater

1шт.

21

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

special cover mounting

8шт.

22

L33834

COVER

heater access

1шт.

23

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

special cover mounting

2шт.

24

493-11017

LOCK WASHER,Ext-Int Tooth, #8

Ext-Int Tooth, #8

2шт.
