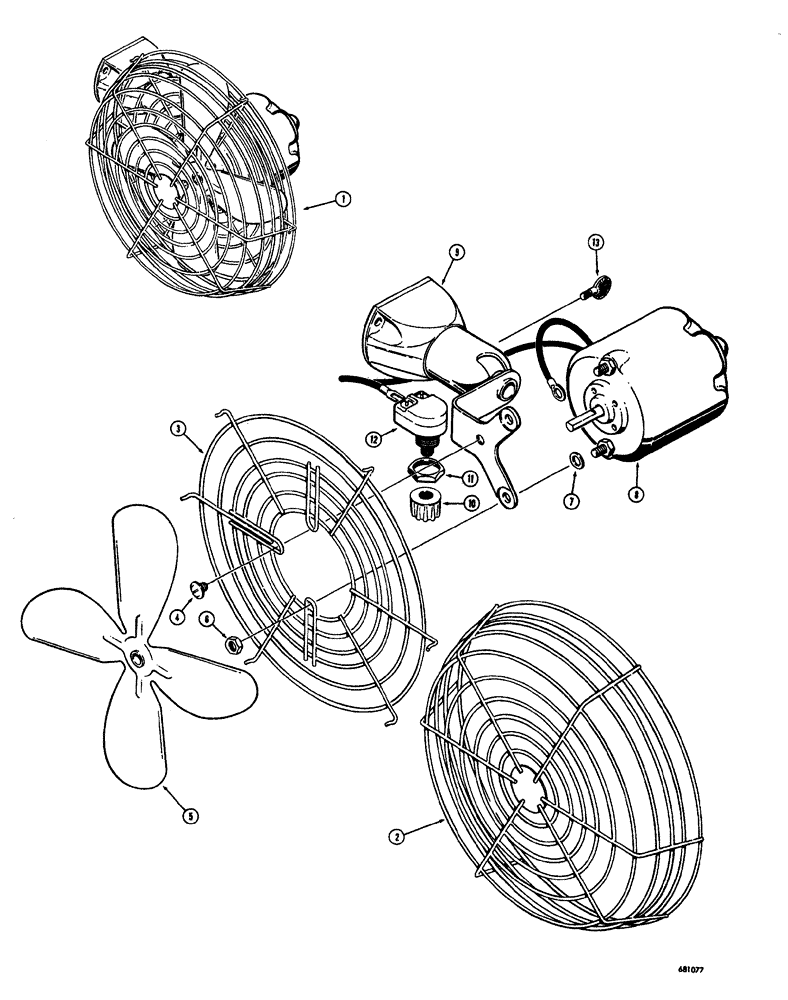

Запчасти Case W20 (248) - L48971 DEFROSTER FAN (09) - CHASSIS

1

L48971

FAN

FAN - defroster, cab rear window, Includes Ref: 2-13

1шт.

2

L30907

GUARD

GRILLE - fan, front

1шт.

3

L30904

GRILLE

fan, back

1шт.

4

L30906

BOLT

special

1шт.

5

L30902

FAN

BLADE ASSEMBLY

1шт.

6

225-14208

NUT,#8-36

hex. (#8 - 36 NF)

2шт.

7

L35760

WASHER

special

2шт.

8

D54871

MOTOR

fan, 24 volt

1шт.

9

L30900

BASE

fan

1шт.

10

L30909

KNOB

control

1шт.

11

L30908

NUT

SPARE PART hex., special

1шт.

12

D54872

SWITCH

control

1шт.

13

L30910

SCREW

thumb - swivel (If used)

1шт.
