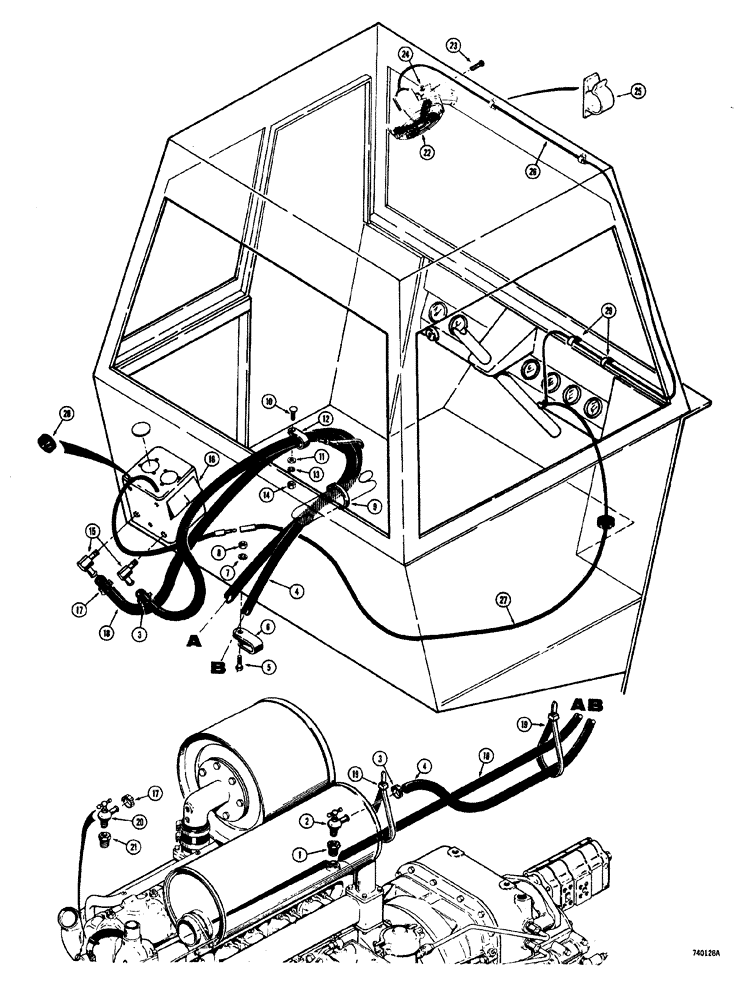

Запчасти Case W20 (246) - CAB HEATER AND DEFROSTER BEFORE TRACTOR S.N. 9115403 (09) - CHASSIS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

reducer (1/2" x 3/8")

1шт.

2

A16764

VALVE

shutoff, water

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

2шт.

4

L50608

HOSE

low nressure water manifold to heater (When stock exhausted L52721 to be suoolied)

1шт.

4

L52721

HOSE,3124.00 mm, SAE 20R3

Low pressure, Water manifold to heater

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

L50062

SHIN

CLAMP - hose

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP heater hose

2шт.

10

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

2шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16")

2шт.

12

L50062

SHIN

CLAMP - hose

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

L50610

ELBOW

adjustable, 90°

2шт.

16

L50607

SPARE PART ASSEMBLY - cab, See parts list Figure: 250

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

L18326

HOSE

low pressure, heater to water pump (When stock exhausted. L52722 to be supplied)

1шт.

18

L52722

HOSE ASSY.

low pressure, water, Serial Range: manifold-heater

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie - heater hose

2шт.

20

A16764

VALVE

shut- off water

1шт.

21

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

reducer (1/2" x 3/8")

1шт.

22

L48971

FAN

defroster (Parts list Figure: 248)

1шт.

23

173-205

X

RHMS - #10 - 24 NC x 5/8"

4шт.

24

86625057

NUT,#10-24, GB

4шт.

25

L54606

CLIP

CLAMP - wire

4шт.

26

L50066

SPARE PART defroster fan to heater switch

1шт.

27

L50065

SPARE PART heater to heater switch

1шт.

28

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

heater wire (At heater)

1шт.

29

49836

CLAMP

CLIP - wire

2шт.
