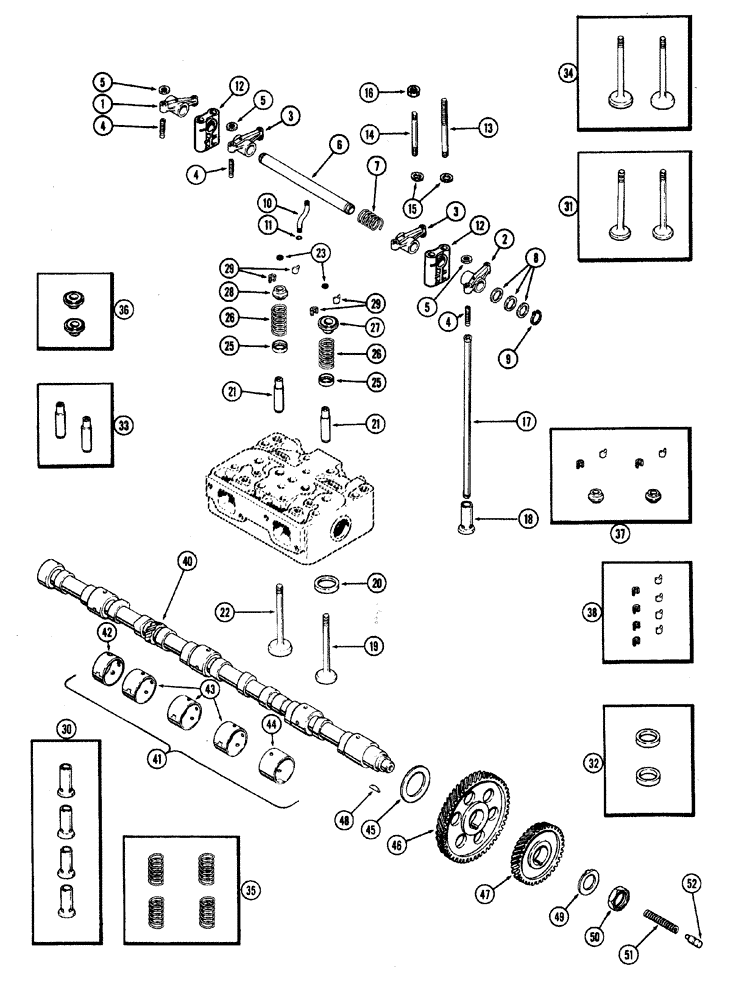

Запчасти Case W20 (018) - (401B) DIESEL ENGINE VALVE MECHANISM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58655
ARM
rocker, exhaust, 1st, 3rd & 5th cylinder
3шт.
2
A58656
ARM
rocker, exhaust, 2nd, 4th & 6th cylinder
3шт.
3
A58654
ARM
rocker, intake
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
adjusting, rocker arm
12шт.
5
25-156
JAM NUT,Jam, 3/8"-24, G5
hex, jam, lock, adj screw, 3/8" NF
12шт.
6
A57532
SHAFT
rocker arm
3шт.
7
A27877
SPRING
rocker arm
3шт.
8
A27878
WASHER
end, rocker arm shaft
1шт.
9
B18206
SNAP RING,#87, Ext
rocker assy #87, Ext
6шт.
10
A58657
TUBE
oil, rocker shaft
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
Oil tube, 3/16" x 5/16" x 1/16"
3шт.
12
A61128
BRACKET
rocker arm shaft
6шт.
13
A60885
STUD
bracket & cover, 7/16" NC x 6"
6шт.
14
A58659
STUD
bracket, 7/16" NC x 4-5/16"
6шт.
15
195-29
WASHER,7/16"
bracket studs, 1/2" x 1" x 1/16"
12шт.
16
25-107
NUT,7/16"-14, G5
hex, bracket studs, 7/16" NC
12шт.
17
A58596
ROD
ASSY push
12шт.
18
NSS
NOT SOLD SEPARAT
LIFTER push rod, order Ref. 30
12шт.
19
NSS
NOT SOLD SEPARAT
VALVE exhaust, order Ref. 31
6шт.
20
NSS
NOT SOLD SEPARAT
INSERT exhaust valve seat, order Ref. 32
6шт.
21
NSS
NOT SOLD SEPARAT
GUIDE valve, order Ref. 33
12шт.
22
NSS
NOT SOLD SEPARAT
VALVE intake, order Ref. 34
6шт.
23
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
valve stem
12шт.
25
A66328
SEAT
valve spring, Replaces: A5862H
12шт.
26
NSS
NOT SOLD SEPARAT
SPRING valve, order Ref. 35
12шт.
27
NSS
NOT SOLD SEPARAT
ROTO-COIL exhaust valve, order Ref. 36
6шт.
28
NSS
NOT SOLD SEPARAT
RETAINER intake valve spring, order Ref. 37
6шт.
29
NSS
NOT SOLD SEPARAT
LOCK valve spring, order Ref. 38
24шт.
30
A21653
KIT
LIFTER push rod, set of 4, Standard
3шт.
30
A22463
KIT
LIFTER push rod, set of 4, +.010"
3шт.
31
A41965
VALVE
KIT exhaust, set of 2
3шт.
32
A41985
INSERT
KIT exhaust valve seat, set of 2
3шт.
33
A41781
GUIDE
KIT valve, set of 2
6шт.
34
A41966
VALVE
KIT intake, set of 2
3шт.
35
A42895
SPRING
KIT valves, set of 4
3шт.
36
A44658
COIL
ROTO KIT exhaust valve, set of 2, Replaces: A57433
3шт.
37
A44645
KIT
RETAINING w/locks, set of 2, Replaces: A21657
3шт.
38
A40352
LOCK
KIT valve spring, set of 8
3шт.
40
A66743
CAMSHAFT
Replaces: A62734
1шт.
41
A23544
BUSHING
KIT camshaft, Includes Ref: 42-44
1шт.
42
NSS
NOT SOLD SEPARAT
BUSHING rear, 1-5/32" wide, camshaft
1шт.
43
NSS
NOT SOLD SEPARAT
BUSHING intermediate, 1-7/16" wide, camshaft
3шт.
44
NSS
NOT SOLD SEPARAT
BUSHING front, 1-21/32" wide, camshaft
1шт.
45
A21017
WASHER
thrust, camshaft, 2-1/4" x 3-1/4" x 1/8"
1шт.
46
A58592
GEAR
camshaft, 54 teeth
1шт.
47
A58593
GEAR
idler, 48 teeth, camshaft
1шт.
48
126-227
WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"
timing gear, Hi-Pro, camshaft
1шт.
49
A58594
LOCK WASHER
tab, camshaft nut lock
1шт.
50
A58595
NUT
lock, timing gears, camshaft
1шт.
51
CASA27853
SPRING
SPRING plunger, camshaft thrust
1шт.
52
A27852
PLUNGER
thrust, camshaft
1шт.
Выбрано товаров: 51
