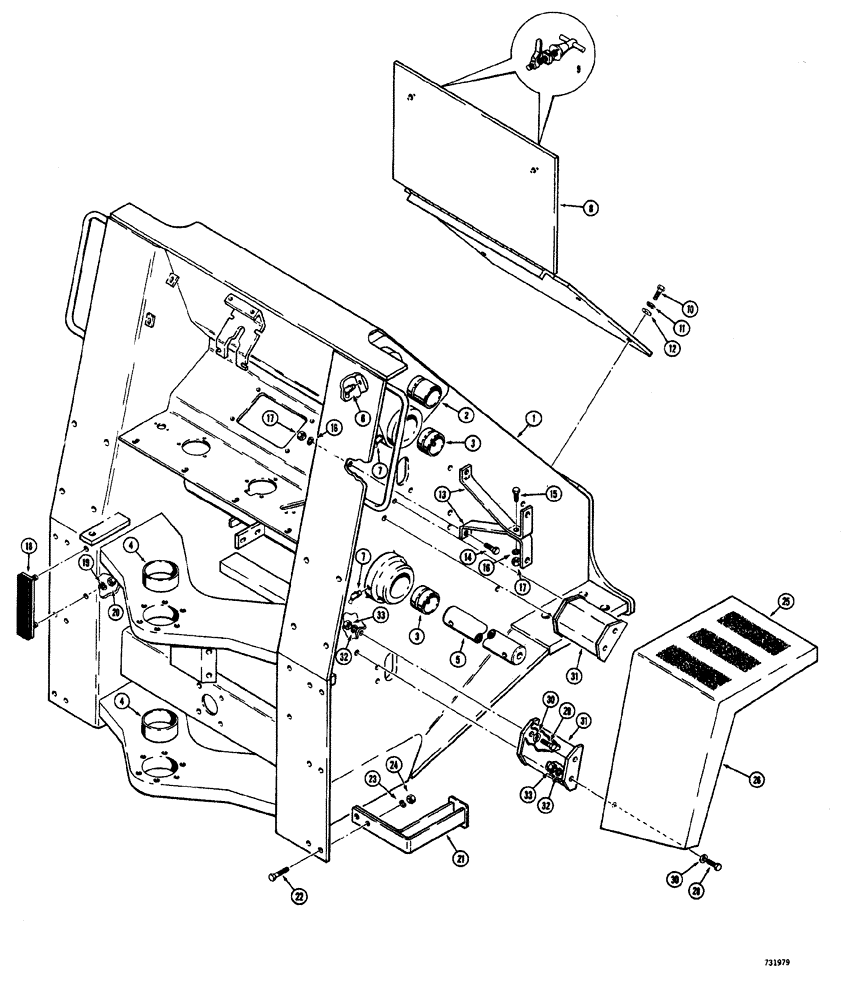

Запчасти Case W20 (240) - FRONT FRAME AND FENDERS (09) - CHASSIS

L50436

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Before tractor Sn. 91077854), Includes Ref: 1-5

1шт.

L51656

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Tractor Sn 9107854 thru 9112916 Also 9112918 and 911292U), Includes Ref: 1-5

1шт.

L55674

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Tractor Sn 9112917 to 9115301, except 9112918 and 91129, Includes Ref: 1-5

1шт.

L57632

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Trac or Sn 9115302 to 9U5402 except 9115334 and 9115335, Includes Ref: 1-5

1шт.

L58872

SPARE PART FRONT FRAME ASSEMBLY - articulated loader (Tractor Sn 9115403 and after), Includes Ref: 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulated loader

1шт.

2

L47305

BUSHING

tilt cylinder pivot

2шт.

3

L47306

BUSHING,76.45mm ID x 88.14mm OD x 57.15mm L

lift cylinder and lift frame pivot

4шт.

4

L17466

BUSHING,100.05mm ID x 112.82mm OD x 37.4mm L

frame pivot

2шт.

5

L47564

SHAFT

pivot lift cylinder

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Tilt cylinder pivot

2шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Lift cylinder and lift frame

4шт.

8

L48440

COVER

COVER - front frame

1шт.

9

L48438

HANDLE

ASSEMBLY - front cover

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

95-6

WASHER,3/8"

standard wrot

4шт.

13

L47787

SUPPORT

light mounting

4шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket to front frame)

4шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket to bracket)

2шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

6шт.

18

L47997

ELASTIC STOP

front to rear frame

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

4шт.

21

L48150

STEP

operators compartment access (When stock is exhausted order L53618 step for service)

6шт.

21

L53618

STEP

operator s compartment access

6шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

23

92-8

LOCK WASHER,1/2"

12шт.

24

25-108

NUT,1/2"-13, G5

Hex

12шт.

25

A55582

PAD

non slip

6шт.

26

L48237

FENDER

front, R H

1шт.

27

L48238

FENDER

front, L H (Not shown)

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Fender to support)

8шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Support to front frame)

8шт.

30

95-6

WASHER,3/8"

standard wrot

16шт.

31

L48249

SUPPORT

front fender

4шт.

32

92-6

LOCK WASHER,3/8"

16шт.

33

25-106

NUT,3/8"-16, G5

hex, (3/8" - 16 NC)

16шт.
