Запчасти Case W20 (338) - L35320 CHECK VALVE, L35386 AND L35319 SECONDARY RELIEF VALVES, L35321 REGENERATION CHECK VALVE (08) - HYDRAULICS

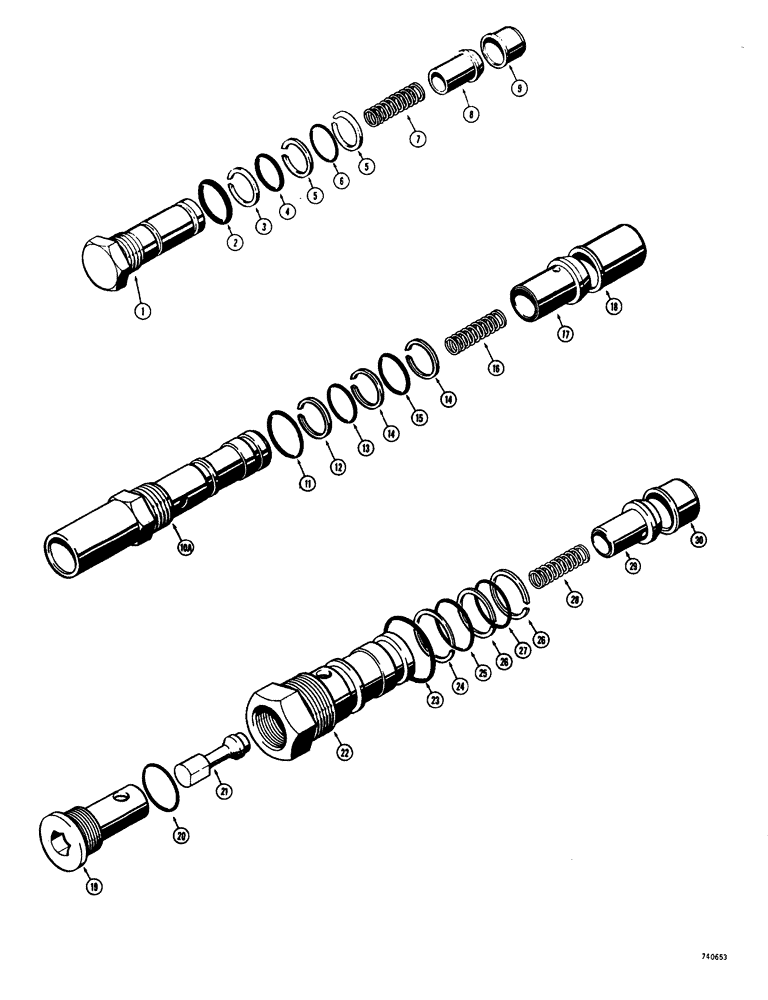

Схема запчастей Case W20 - (338) - L35320 CHECK VALVE, L35386 AND L35319 SECONDARY RELIEF VALVES, L35321 REGENERATION CHECK VALVE (08) - HYDRAULICS
24
20
16
27
22
4
29
13
5
18
30
26
5
3
12
8
17
15
26
1
19
7
11
21
9
14
10a
14
23
2
25
6
28

Артикул

Название

Примечание

Количество

L35320

VALVE

check, Includes Ref: 1-9

1шт.

1

L32632

VALVE

CAP - check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Outer)

1шт.

3

A41346

RING

backup, center "O"ring seal

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

CAP valve (Center)

1шт.

5

G32626

RING

backup, inner "O"ring seal

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

CAP valve (Inner)

1шт.

7

D48818

SPRING

check valve

1шт.

8

L32622

VALVE POPPET

check

1шт.

9

L35334

SLEEVE

SEAT - check valve

1шт.

L35386

VALVE

ASSEMBLY - secondary relief, Includes Ref: 10-18

1шт.

L35319

VALVE

ASSEMBLY - secondary relief, Includes Ref: 10-18

1шт.

10

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - valve, L35319 secondary relief

1шт.

10a

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - valve, L35386 secondary relief

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Outer)

1шт.

12

A41346

RING

backup, center "O"ring seal

1шт.

13

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

CAP valve (Center)

1шт.

14

G32626

RING

backup, inner "O"ring seal

2шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

CAP valve (Inner)

1шт.

16

D48818

SPRING

secondary relief valve

1шт.

17

L32622

VALVE POPPET

secondary relief valve

1шт.

18

L35334

SLEEVE

SEAT - secondary relief valve

1шт.

L35321

VALVE

check, regeneration, Includes Ref: 19-30

1шт.

19

L32628

PLUG

regeneration check valve

1шт.

21

L32626

SPOOL

POPPET - small

1шт.

22

L32627

VALVE

CAP - regeneration check valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Outer)

1шт.

24

A41346

RING

backup, center "O"ring seal

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

CAP valve (Center)

1шт.

26

G32626

RING

backup, inner "O"ring seal

2шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

CAP valve (Inner)

1шт.

28

D48818

SPRING

regeneration check valve

1шт.

29

L32622

VALVE POPPET

regeneration check valve

1шт.

30

L35334

SLEEVE

SEAT - regeneration check valve

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.

Выбрано товаров: 35
