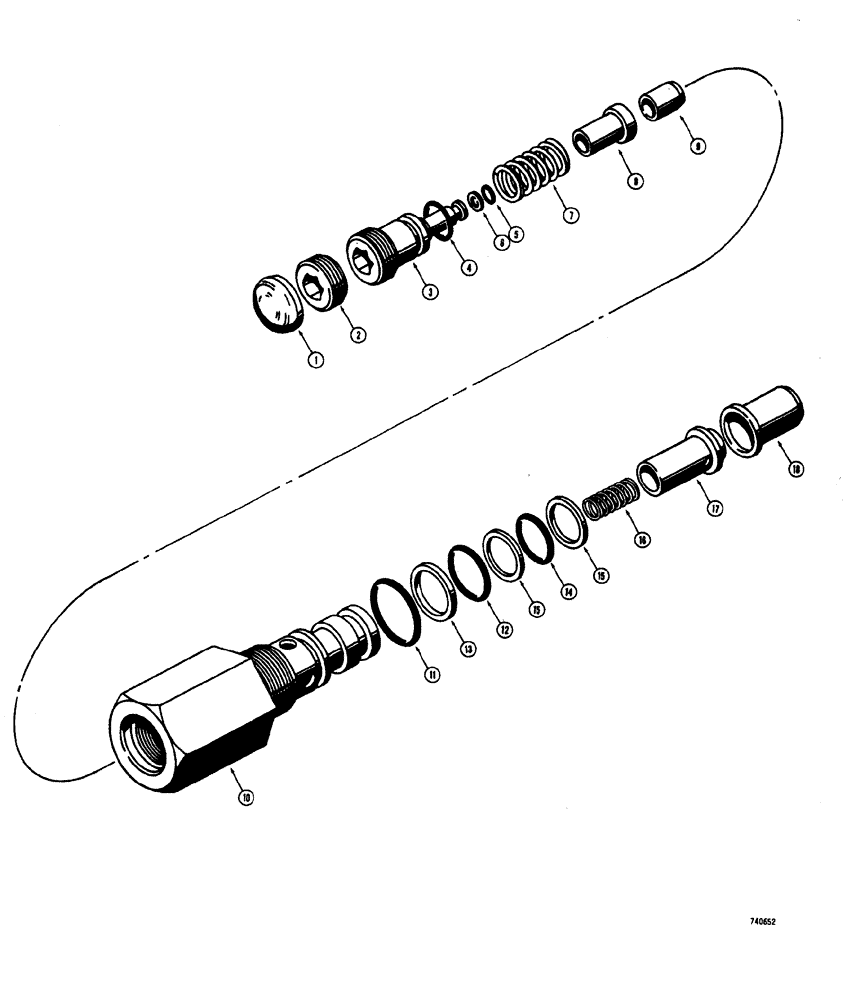

Запчасти Case W20 (336) - SECONDARY RELIEF VALVES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L32633
VALVE
secondary relief, Includes Ref: 1-18
1шт.
1
41-14
PLUG
expansion 7/8" dia.
1шт.
2
L33449
PLUG
CAP end
1шт.
3
D65137
GUIDE
spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
spring guide (Large)
1шт.
5
A51274
O-RING,0.145" ID x 0.285" OD
spring guide (Small)
1шт.
6
D54860
RING
SEAL backup
1шт.
7
D37148
SPRING
plunger
1шт.
8
D37151
PLUNGER
relief
1шт.
9
D37075
SEAT
plunger
1шт.
10
L33448
CAP
BODY - check valve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
body to valve
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
check valve body (7/8" O.D.)
1шт.
13
A41346
RING
SEAL backup
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
check valve body (13/16" O.D.)
1шт.
15
G32626
RING
SEAL backup
2шт.
16
D48818
SPRING
POPPET check
1шт.
17
L32622
VALVE POPPET
check
1шт.
18
L35334
SLEEVE
SEAT - check poppet
1шт.
L33429
VALVE
VALVE - secondary relief, Includes Ref: 1-18
2-3шт.
1
41-14
PLUG
expansion 7/8" dia.
1шт.
2
L33449
PLUG
CAP end
1шт.
3
L33450
GUIDE
spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
spring guide (Large)
1шт.
5
D40356
O-RING
spring guide (Small)
1шт.
6
D40357
RING
SEAL backup
1шт.
7
D37148
SPRING
plunger
1шт.
8
D37074
PLUNGER
relief
1шт.
9
D37075
SEAT
plunger
1шт.
10
L33448
CAP
BODY - check vaIve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
body to valve
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
check valve body (7/8" O.D.)
1шт.
13
A41346
RING
SEAL backup
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
check valve body (13/16" O D )
1шт.
15
G32626
RING
SEAL backup
2шт.
16
D48818
SPRING
POPPET check
1шт.
17
L32622
VALVE POPPET
check
1шт.
18
L32631
VALVE
SEAT - check poppet
1шт.
Выбрано товаров: 38
