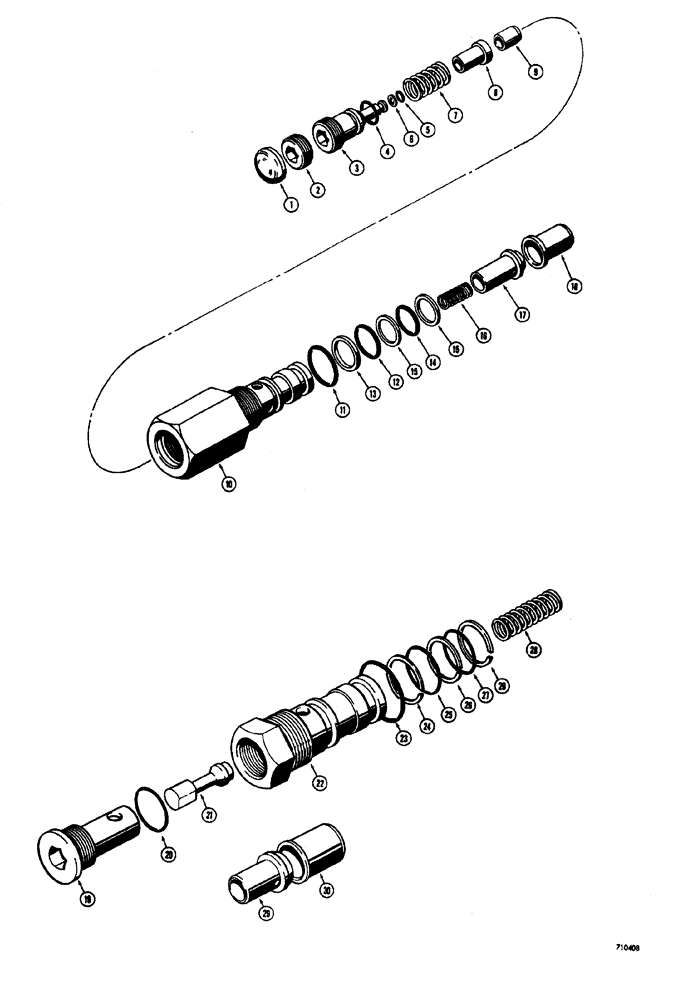

Запчасти Case W20 (334) - SECONDARY RELIEF AND REGENERATION CHECK VALVE (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, Includes Ref: 1-18

1шт.

1

41-14

PLUG

expansion, 7/8" dia.

1шт.

2

L33449

PLUG

CAP end

1шт.

3

L33450

GUIDE

spring

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

spring guide (Large)

1шт.

5

D40356

O-RING

spring guide (Small)

1шт.

6

D40357

RING

backup, seal

1шт.

7

D37148

SPRING

plunger

1шт.

8

D37074

PLUNGER

relief

1шт.

9

D37075

SEAT

plunger

1шт.

10

L33448

CAP

BODY - check valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

body to valve

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

check valve body (7/8" O.D.)

1шт.

13

A41346

RING

SEAL backup

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

check valve body (13/16" O.D.)

1шт.

15

G32626

RING

SEAL backup

2шт.

16

D48818

SPRING

check poppet

1шт.

17

L32622

VALVE POPPET

check

1шт.

18

L32631

VALVE

SEAT - check poppet

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration, Includes Ref: 19-30

1шт.

19

L32628

PLUG

regeneration check valve

1шт.

21

L32626

SPOOL

POPPET - small

1шт.

22

L32627

VALVE

CAP - regeneration check valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Outer)

1шт.

24

A41346

RING

backup, center "O"ring seal

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

CAP valve (Center)

1шт.

26

G32626

RING

backup, inner "O'ring seal

2шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

CAP valve (Inner)

1шт.

28

D48818

SPRING

regeneration check valve

1шт.

29

L32622

VALVE POPPET

regeneration check valve

1шт.

30

L32631

VALVE

SEAT - regeneration check valve

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.
