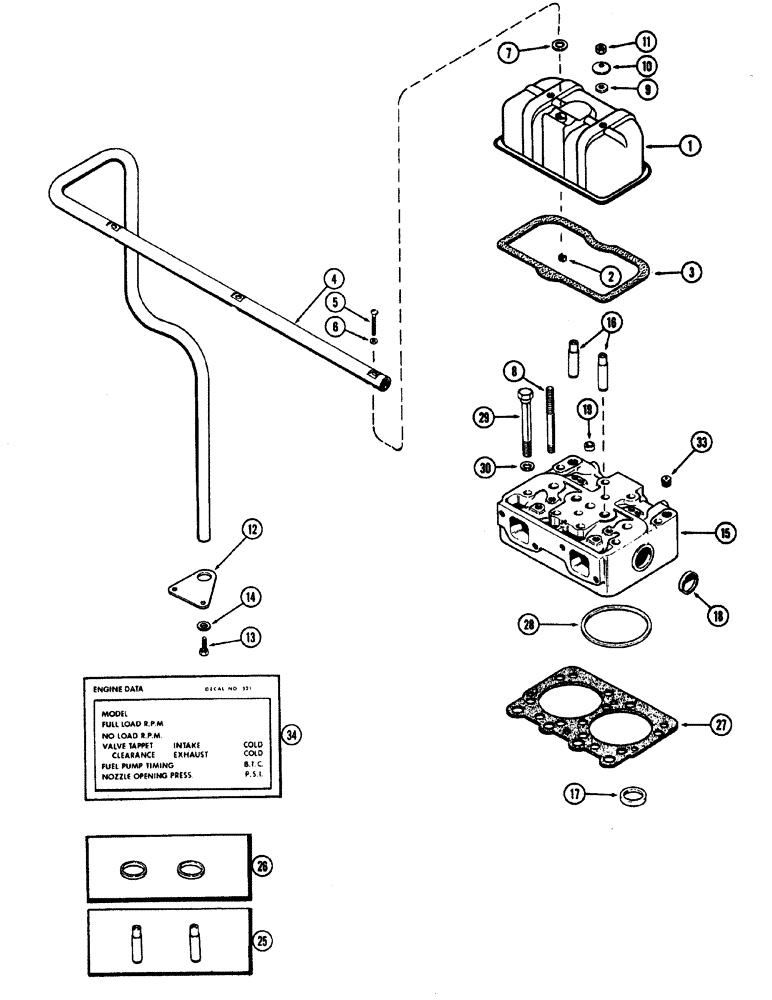

Запчасти Case W20 (016) - (401B) DIESEL ENGINE CYLINDER HEAD AND COVER (02) - ENGINE

1

A58929

COVER

ASSY cylinder head, Includes Ref: 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

Tinnerman, 1/4" NC

1шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover, Replaces: A58928

1шт.

4

A62516

TUBE

breather

1шт.

5

75-440

SCREW

round head, tube, 1/4" x 2-1/2" NC

3шт.

6

A34133

GASKET

breather tube screw, 1/4" x 1/2" x 1/16"

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

tube to cover, 11/16" x 1-1/4" x 1/4"

3шт.

8

A60885

STUD

cover & rocker arm bracket, 7/16" NC x 6"

6шт.

9

A23684

GASKET

cover stud, 1/2" x 7/8" x 1/8"

6шт.

10

A23683

WASHER

cover stud, dome type

6шт.

11

25-107

NUT,7/16"-14, G5

hex, 7/16" NC

6шт.

12

A58734

BRACKET

breather tube, on oil pan

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

hex, bracket, 3/8" x 1-1/2" NC, sems

2шт.

14

195-25

WASHER,3/8"

bracket spacer, x 13/16" x 1/16" 3/8"

1шт.

15

A58885

CYLINDER

HEAD ASSY casting No. A5852, Includes Ref: 16-19

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDE valve, order Ref. 25

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT exhaust valve seat, order Ref. 26

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

cup type, 1-5/8"

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

cup type, 3/4"

3шт.

25

A41781

GUIDE

KIT valve, set of 2

6шт.

26

A41985

INSERT

KIT exhaust valve seat, set of 2

3шт.

27

A62215

GASKET

cylinder head

3шт.

28

A34686

RING

fire, standard

6шт.

28

A34688

RING

fire, oversize

6шт.

29

A76638

BOLT

hex, cylinder head to block, 5/8" x 6-1/4" NC, first used engine serial No. 2556833

30шт.

29

A62732

STEP BOLT

hex, cylinder head to block, 5/8" x 5-5/8" NC, used prior to engine serial No. 2556833

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

head bolt, 5/8" x 1" x 3/16"

30шт.

33

221-1843

PLUG

hex socket head, 3/8" PT

6шт.

34

321-2319

DECAL

engine data, on cover, used w/A82809, nozzle opening pressure at 3200 PSI, first used engine serial No. 2504221

1шт.

34

321-1833

DECAL engine data, on cover, used w/A58694, nozzle opening pressure at 2800 PSI, used prior to engine serial No. 2504221

1шт.
