(332) - CHECK VALVE, L48130 AND L48732 LOADER CONTROL VALVES

Запчасти Case W20 (332) - CHECK VALVE, L48130 AND L48732 LOADER CONTROL VALVES (08) - HYDRAULICS

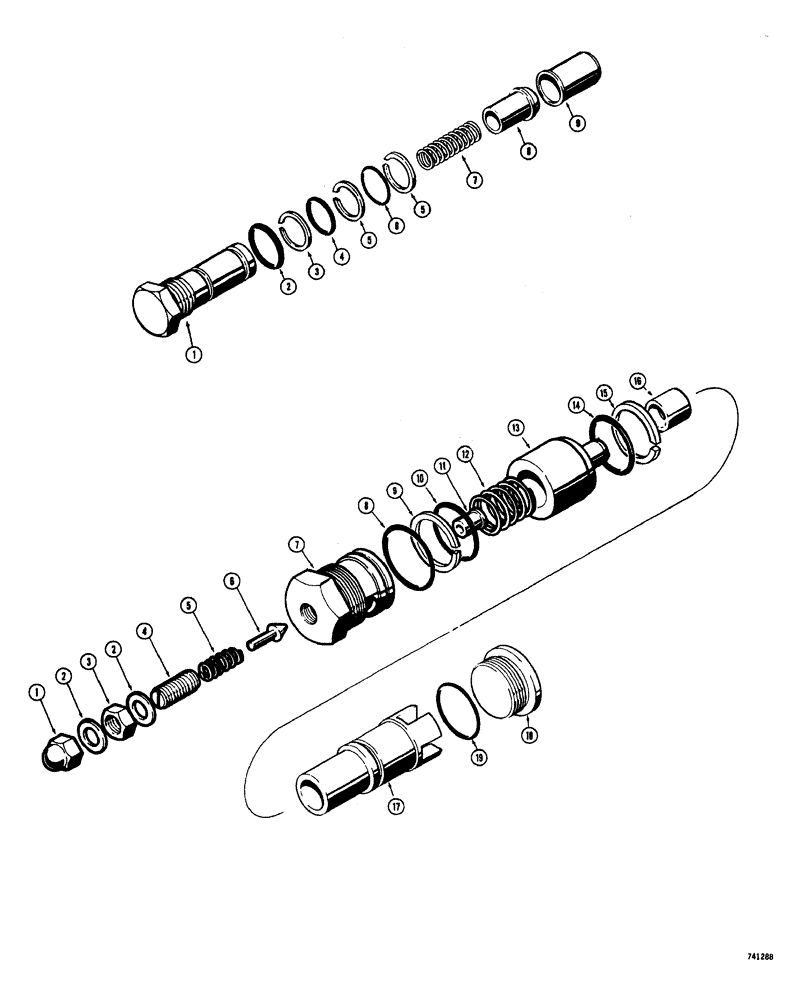

Схема запчастей Case W20 - (332) - CHECK VALVE, L48130 AND L48732 LOADER CONTROL VALVES (08) - HYDRAULICS
11
16
5
9
7
2
12
4
3
8
6
1
14
19
9
4
6
10
5
2
13
1
17
8
15
5
7
2
18
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

VALVE - check, Includes Ref: 1-11

1шт.

1

L32632

VALVE

CAP - check

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Outer)

1шт.

3

A41346

RING

backup, center "O"ring seal

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

CAP valve (Center)

1шт.

5

G32626

RING

backup, inner "O"ring seal

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

CAP valve (Inner)

1шт.

7

D48818

SPRING

VALVE check

1шт.

8

L32622

VALVE POPPET

check

1шт.

9

L32631

VALVE

SEAT - check

1шт.

10

RESERVED

1шт.

11

RESERVED

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - main relief, Includes Ref: 1-19, all valves

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

acorn (5/16" - 24 NF), main relief valve, all valves

1шт.

2

D26270

WASHER, SEALING

SEAL WASHER special, main relief valve, all valves

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

hex, jam (5/16" - 24 NF), main relief valve, all valves

1шт.

4

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

set, relief valve, main, all valves

1шт.

5

D26268

SPRING

pilot, main relief valve, all valves

1шт.

6

D26267

PLUNGER

relief valve, main, all valves

1шт.

7

L32615

CAP

relief valve, main, all valves

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

CAP valve (Large), main relief valve, all valves

1шт.

9

L32619

RING

backup, valve cap, main relief valve, all valves

1шт.

10

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

CAP valve (Small), main relief, all valves

1шт.

11

D26266

SEAT

plunger, main relief valve, all valves

1шт.

12

L32617

SPRING

relief valve, main, all valves

1шт.

13

L32620

VALVE POPPET

relief, main valve, all valves

1шт.

14

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

main relief valve, all valves

1шт.

15

L32619

RING

backup, main relief valve, all valves

1шт.

16

L32618

VALVE

SEAT - relief, main valve, all valves

1шт.

17

L32616

SLEEVE

seat, relief valve, main, all valves

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Spool end, main relief valve, all valves, Includes Ref 19

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

main relief valve, all valves

1шт.
