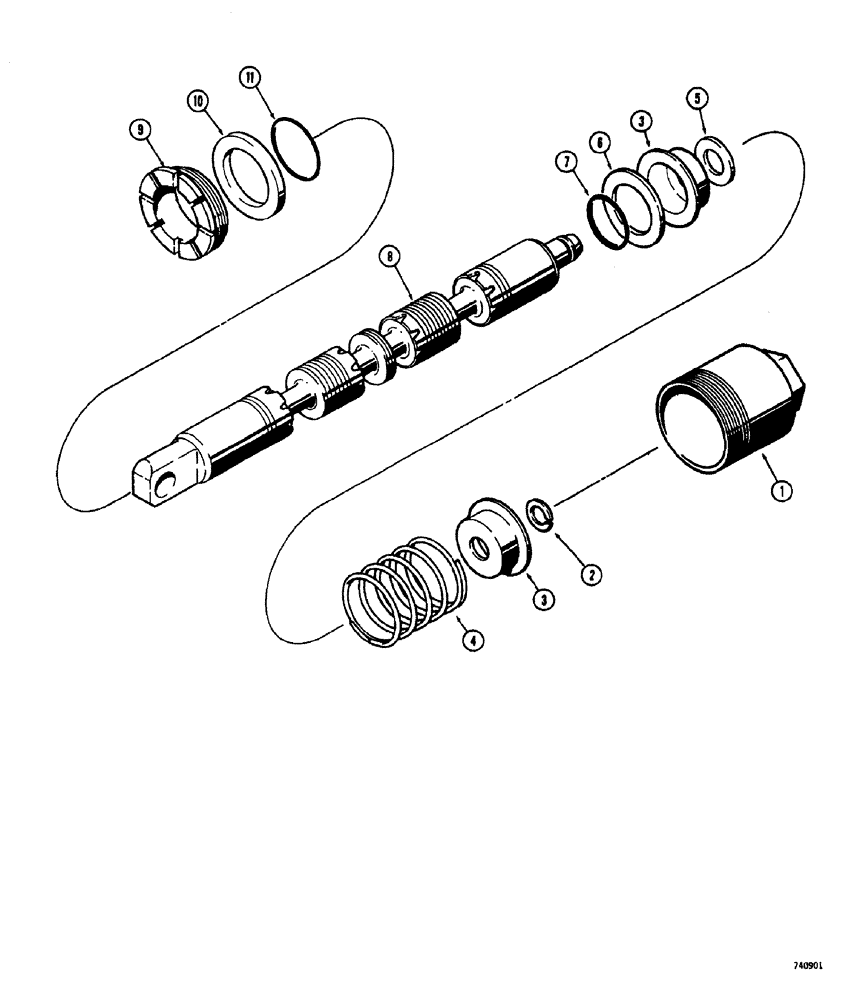

Запчасти Case W20 (330) - L33751 DUMP SPOOL, ALL MODELS WITH CLAM BUCKET (08) - HYDRAULICS

L33751

SPOOL

ASSEMBLY - valve, clam, Includes Ref: 1-8

1шт.

1

A13166

WASHER

COVER - spool end

1шт.

2

A27020

RING

retaining, at spool end

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

4

A15981

SPRING

SPOOL centering

1шт.

5

W12113

BUSHING

SPACER - spring seat

1шт.

6

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, Drott clam

1шт.

9

L32608

RETAINER

AND WIPER - spool

1шт.

10

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

SEAL retainer

1шт.

11

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SPOOL

1шт.
