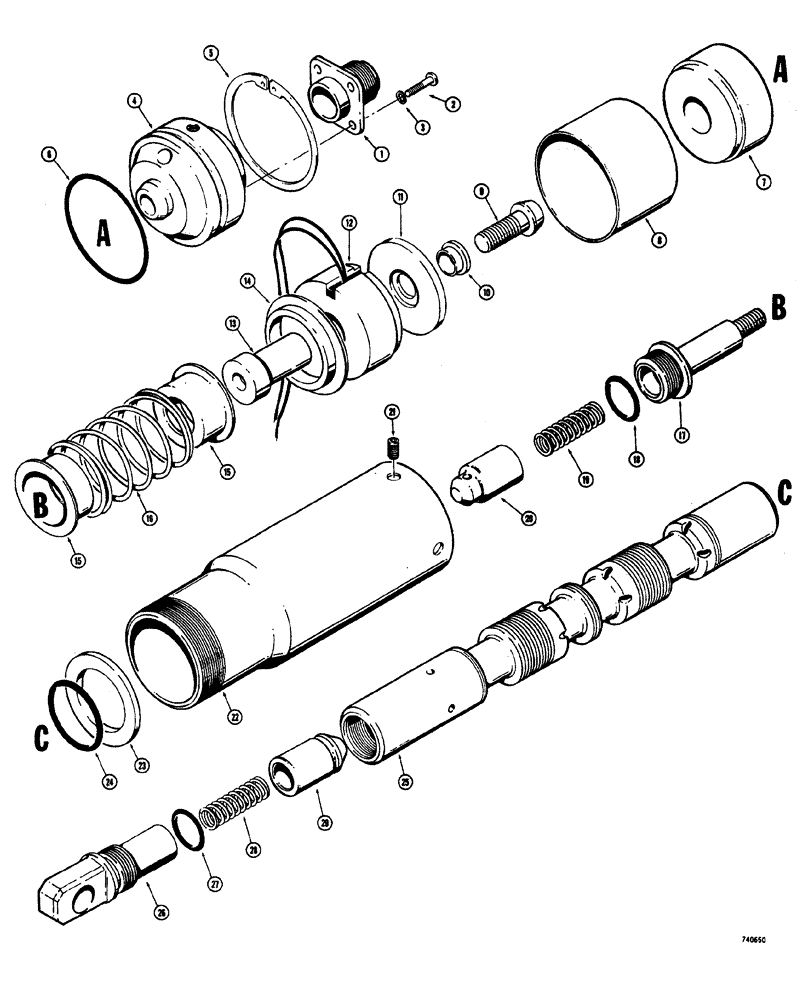

Запчасти Case W20 (328) - D63369 TILT SPOOL (08) - HYDRAULICS

D63369

SPOOL

ASSEMBLY - valve, tilt, Includes Ref: 1-29

1шт.

1

L36043

CONNECTOR, ELEC

CONNECTOR SPOOL

1шт.

2

182-4

SCREW

round head (#4 - 40 NC x 5/1 6")

4шт.

3

192-53

LOCK WASHER,#4

4шт.

4

D63372

PLUG

SPOOL end

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

retaining, end plug

1шт.

6

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

PLUG

1шт.

7

L33767

BUSHING

SPACER - dummy coil, ma,xnetic detent

1шт.

8

L33781

SPACER

SPACER - coil

1шт.

9

D56450

SCREW

special, magnetic detent

1шт.

10

L33764

SPACER

magnetic detent

1шт.

11

L33763

WASHER

special, clapper

1шт.

12

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

12

L70232

RESISTOR

COIL AND HOLDER ASSEMBLY - magnetic detent (Service replacement for L33762 to be used on L57678, L57678, L57679, L70410 and L71422 valves

1шт.

13

L35388

BUSHING

SPACER TUBE - magnetic detent

1шт.

14

L35389

WASHER

special, coil shim

1шт.

15

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

16

L33776

SPRING

centering

1шт.

17

L35387

PLUG

SPOOL end, internal

1шт.

19

L35327

SPRING

restrictor, internal spool end

1шт.

20

L35326

VALVE POPPET

restrictor, internal spool end

1шт.

21

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

set, hex socket headless (#10 - 24 NC x 3/8")

1шт.

22

L33778

HOUSING

magnetic detent

1шт.

23

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

"O"ring retainer

1шт.

24

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve, tilt

1шт.

26

L35335

EYE

SPOOL

1шт.

28

L35324

SPRING

make up, spool eye end

1шт.

29

L35325

SPOOL

POPPET - make up, spool eye end

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.
