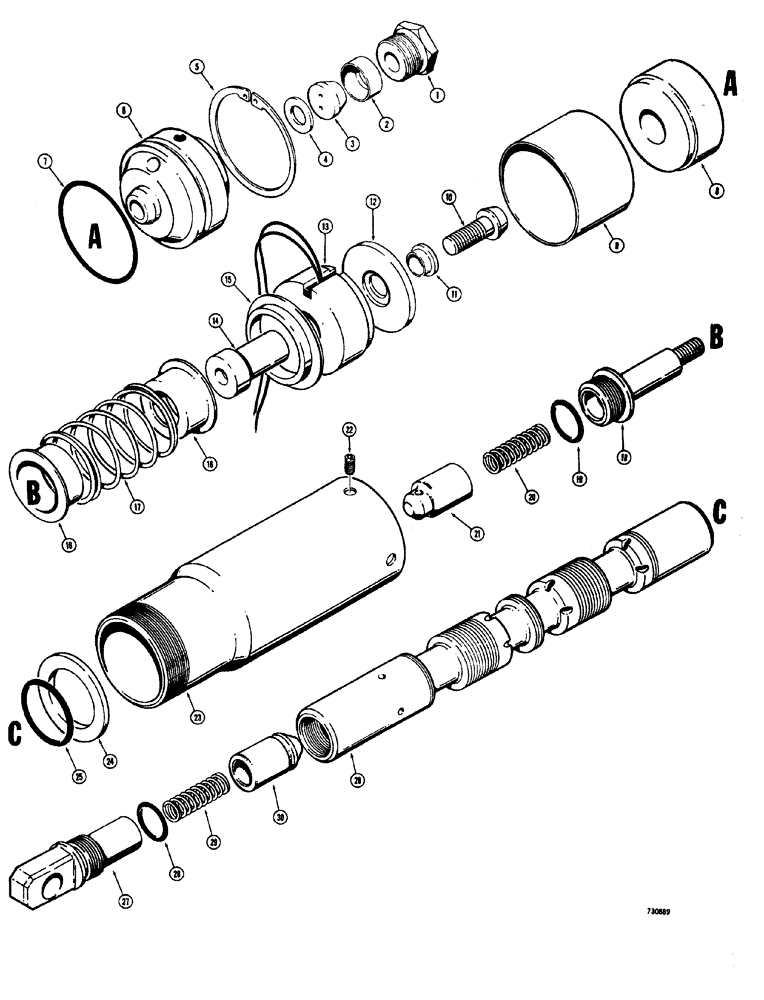

Запчасти Case W20 (326) - L35385 TILT SPOOL (08) - HYDRAULICS

L35385

SPOOL

ASSEMBLY - valve, tilt, Includes Ref: 1-30

1шт.

1

L33773

PLUG

seal access

1шт.

2

L33772

RING

CLAMP - magnetic detent seal

1шт.

3

L33771

SEAL

magnetic detent lead

1шт.

4

L33770

WASHER

SEAL

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

retaining, end plug

1шт.

6

L33768

PLUG

SPOOL end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

PLUG

1шт.

8

L33767

BUSHING

SPACER - dummy coil, magnetic detent

1шт.

9

L33781

SPACER

SPACER - coil

1шт.

10

D56450

SCREW

special, magnetic detent

1шт.

11

L33764

SPACER

9/32" long (Use D65129 washer and D65130 spacer)

1шт.

11

D65130

SPACER

23/64" long

1шт.

12

L33763

WASHER

3/16" thick (Use D65129 washer and D65130 spacer)

1шт.

12

D65129

WASHER

17/64" thick

1шт.

13

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

14

L35388

BUSHING

SPACER TUBE - magnetic detent

1шт.

15

L35389

WASHER

special, coil shim

1шт.

16

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

17

L33776

SPRING

centering

1шт.

18

L35387

PLUG

SPOOL end, internal

1шт.

20

L35327

SPRING

restrictor, internal spool end

1шт.

21

L35326

VALVE POPPET

restrictor, internal spool end

1шт.

22

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

set, hex socket headless (#10 - 24 NC x 3/8")

1шт.

23

L33778

HOUSING

magnetic detent

1шт.

24

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

"O"ring - retainer

1шт.

25

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve, tilt

1шт.

27

L35335

EYE

SPOOL

1шт.

29

L35324

SPRING

make up, spool eye end

1шт.

30

L35325

SPOOL

POPPET - make up, spool eye end

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

PLUG

1шт.
