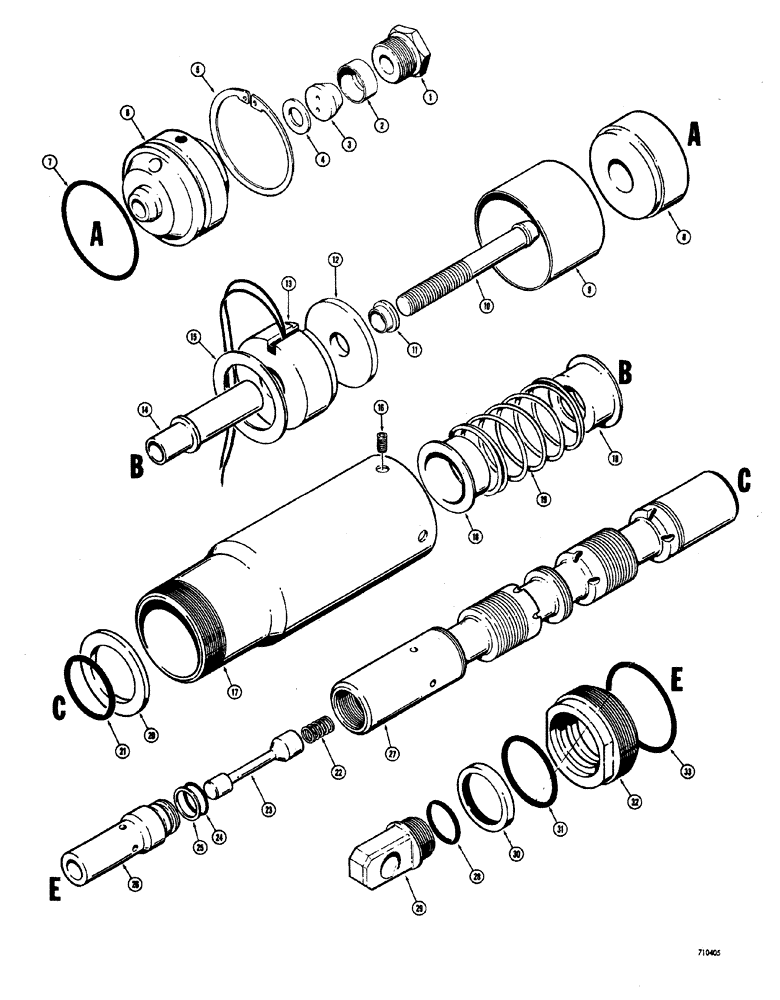

Запчасти Case W20 (324) - L33752 TILT SPOOL (08) - HYDRAULICS

L33752

SPOOL

ASSEMBLY - valve, tilt, Includes Ref: 1-33

1шт.

1

L33773

PLUG

seal access

1шт.

2

L33772

RING

CLAMP - magnetic detent seal

1шт.

3

L33771

SEAL

magnetic detent lead

1шт.

4

L33770

WASHER

SEAL

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

retaining, end plug

1шт.

6

L33768

PLUG

SPOOL end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

PLUG

1шт.

8

L33767

BUSHING

SPACER - dummy coil, magnetic detent

1шт.

9

L33766

SPACER

SPACER - coil

1шт.

10

L33765

SCREW

special, magnetic detent

1шт.

11

L33764

SPACER

magnetic detent

1шт.

12

L33763

WASHER

special, clapper

1шт.

13

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

14

L33760

SPACER

SPACER - magnetic detent

1шт.

15

L33761

WASHER

special coil shim

1шт.

16

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

set, hex socket headless (#10 - 24 NC x 3/8")

1шт.

17

L33759

HOUSING

magnetic detent

1шт.

18

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

19

L33758

VALVE SPRING

centering

1шт.

20

T19R04

RETAINER - "O'ring

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

22

L32636

VALVE SPRING

SPARE PART poppet

1шт.

23

L32637

VALVE

poppet, check

1шт.

24

D37149

O-RING,104 mm ID

1шт.

25

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup

1шт.

26

L32638

SEAT

poppet

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve tilt

1шт.

29

L51030

EYE

SPOOL

1шт.

30

A28211

OIL SEAL

WIPER - spool

1шт.

31

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

32

L32612

RETAINER

SEAL

1шт.

33

A59004

O-RING,1.362" ID x 1.568" OD

large

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SPOOL eye

1шт.
