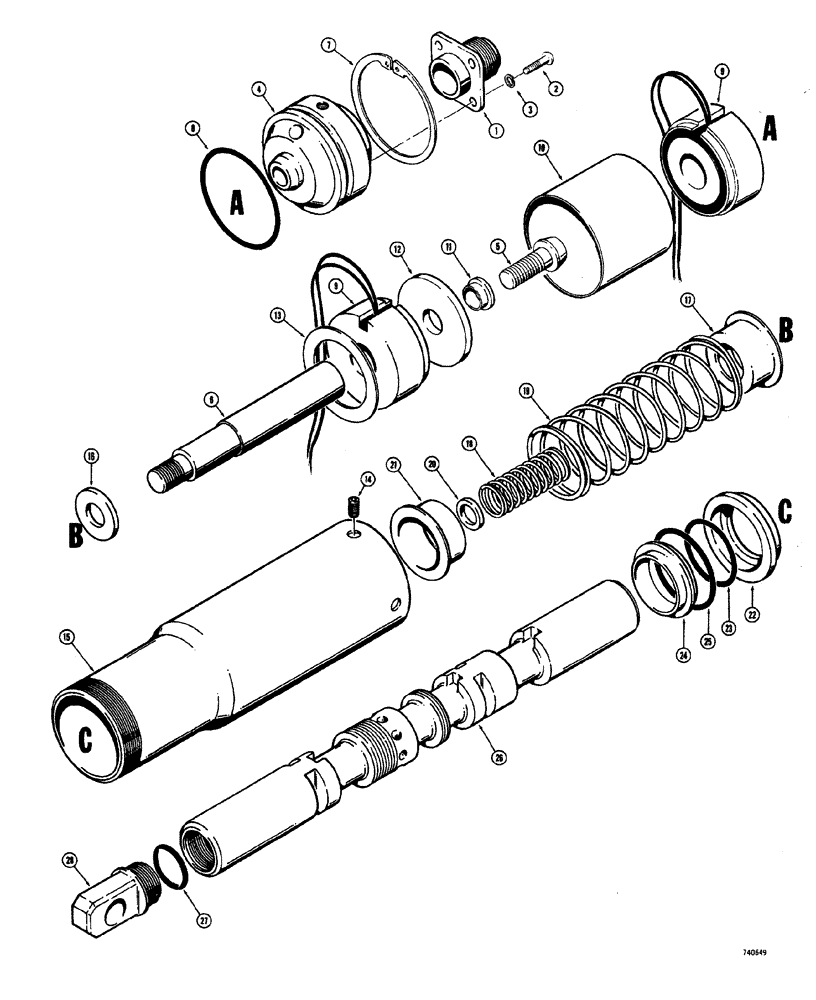

Запчасти Case W20 (322) - D63370 LIFT SPOOL (08) - HYDRAULICS

D63370

SPOOL

ASSEMBLY - valve, lift, Includes Ref: 1-28

1шт.

1

R33408

CONNECTOR, ELEC

CONNECTOR SPOOL

1шт.

2

182-4

SCREW

round head (#4 - 40 NC x 5/16")

4шт.

3

192-53

LOCK WASHER,#4

4шт.

4

D63372

PLUG

SPOOL end

1шт.

5

D56450

SCREW

special

1шт.

6

D56449

STUD

SPOOL

1шт.

7

L33769

SNAP RING,#187, 1.960", Int, Spiral

retaining, end plug

1шт.

8

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

PLUG

1шт.

9

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

2шт.

9

L70232

RESISTOR

COIL AND HOLDER ASSEMBLY - magnetic detent (Service replacement for L33762 to be used on L57678 and L57679 valves only

1шт.

10

L33781

SPACER

SPACER - coil

1шт.

11

L33764

SPACER

magnetic detent

1шт.

12

L33763

WASHER

special clapper

1шт.

13

L33761

WASHER

special coil shim

1шт.

14

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

set, hex socket headless (#1O - 24 NC x 3/8")

1шт.

15

L33778

HOUSING

magnetic detent

1шт.

16

L33777

WASHER

spring retaining

1шт.

17

A16846

CAP

SEAT - sprineg inner

1шт.

18

L33775

SPRING

feel, magnetic detent

1шт.

19

L33776

SPRING

centering

1шт.

20

L33774

RING

special

1шт.

21

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring outer

1шт.

22

L32640

RETAINER

RETAINER - "O"ring, inner

1шт.

23

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

24

L32639

RETAINER

"O"ring, outer

1шт.

25

L32613

O-RING

large

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve lift

1шт.

28

L32635

EYE

SPOOL

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SPOOL eye

1шт.
