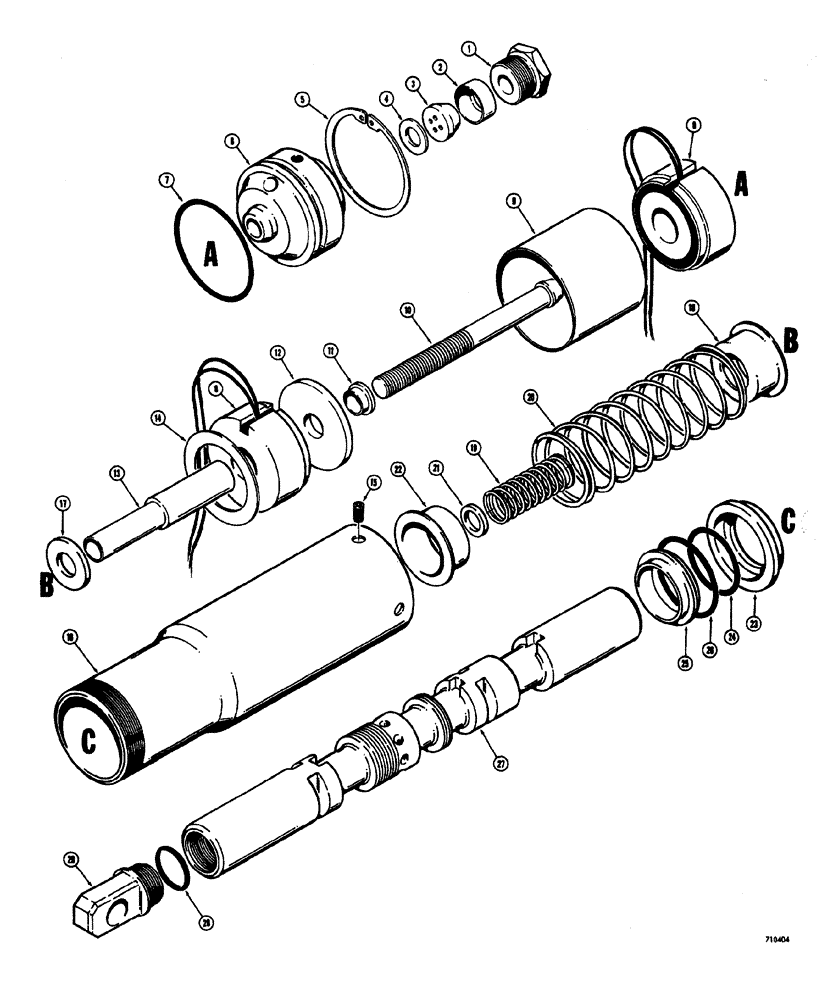

Запчасти Case W20 (320) - L33753 LIFT SPOOL (08) - HYDRAULICS

L33753

SPOOL

ASSEMBLY - valve, lift, Includes Ref: 1-29

1шт.

1

L33773

PLUG

seal access

1шт.

2

L33772

RING

CLAMP - magnetic detent seal

1шт.

3

L33782

SEAL

magnetic detent lead

1шт.

4

L33770

WASHER

SEAL

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

retaining end plug

1шт.

6

L33768

PLUG

spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O"ring, plug

1шт.

8

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

2шт.

9

L33781

SPACER

SPACER - coil

1шт.

10

L33780

SCREW,3/8" - 16 x 4", Gr 5

special magnetic detent

1шт.

11

L33764

SPACER

magnetic detent

1шт.

12

L33763

WASHER

special clapper

1шт.

13

L33779

SPACER,0.445" ID x 0.578" OD x 3.093" L

TUBE - magnetic detent

1шт.

14

L33761

WASHER

special, coil shim

1шт.

15

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

set, hex socket headless (#10 - 24 NC x 3/8")

1шт.

16

L33778

HOUSING

magnetic detent

1шт.

17

L33777

WASHER

spring retaining

1шт.

18

A16846

CAP

SEAT - spring, inner

1шт.

19

L33775

SPRING

feel, magnetic detent

1шт.

20

L33776

SPRING

centering

1шт.

21

L33774

RING

special

1шт.

22

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring, outer

1шт.

23

L32640

RETAINER

"O"ring, inner

1шт.

24

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

25

L32639

RETAINER

"O"ring, outer

1шт.

26

L32613

O-RING

large

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift

1шт.

29

L32635

EYE

SPOOL

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SPOOL eye

1шт.
