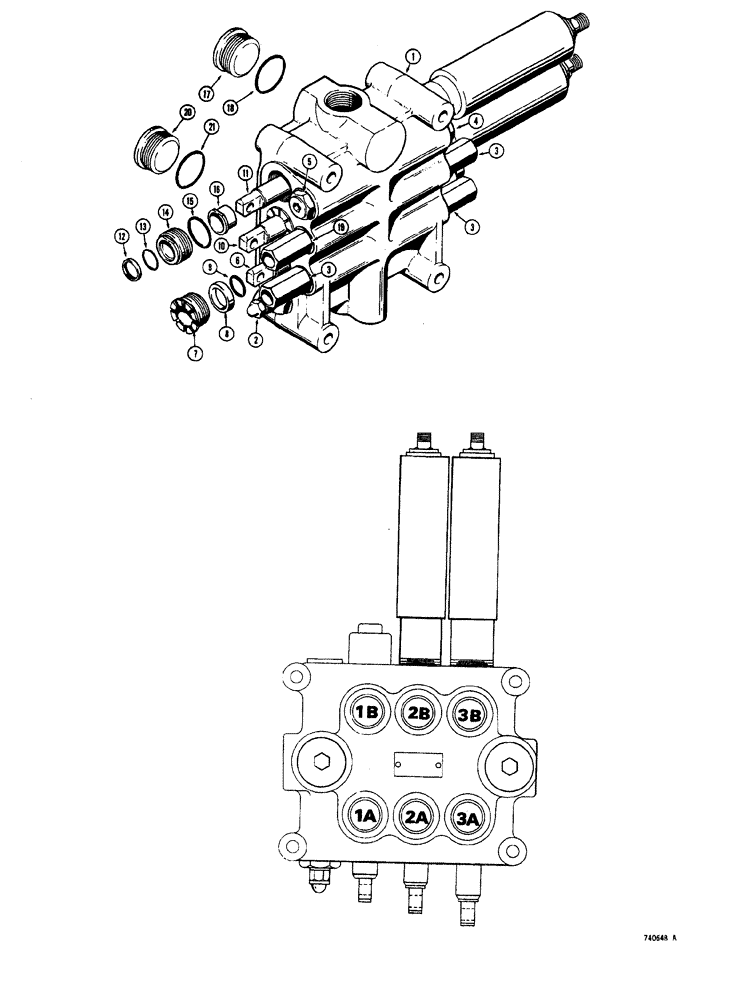

Запчасти Case W20 (318) - L57679 AND L70411 LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L57679

SPARE PART loader control, 3 spool (Use L71422 valve), Includes Ref: 1-21

1шт.

L70411

VALVE

loader control, 3 spool (Use L71422 valve), Includes Ref: 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, See parts list Figure: 332

1шт.

3

L35319

VALVE

secondary relief (Used in ports 1A, IB and 2B), See parts list Figure: 338

3шт.

4

L35320

VALVE

check (Used in port 3B), See parts list Figure: 338

1шт.

5

L35321

VALVE

check, regeneration (Used in port 3A), See parts list Figure: 338

1шт.

6

L33751

SPOOL

valve, Drott Clam, See parts list Figure: 330

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

SEAL retainer

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

10

D63369

SPOOL

valve, tilt, See parts list Figure: 328

1шт.

11

D63370

SPOOL

valve, lift, See parts list Figure: 322

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

14

L32612

RETAINER

SEAL

1шт.

15

L32613

O-RING

large

1шт.

16

L32611

SLEEVE

SLEEVE - spool

1шт.

17

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head, Includes Ref: 18

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

19

L35386

VALVE

secondary relief, See parts list Figure: 338

1шт.

20

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head, Includes Ref: 21

1шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
