(W20) - CASE WHEEL LOADER (PRIOR TO S/N 9123140) (1/71-12/83)
/
(08) - HYDRAULICS
/

(316) - LOADER CONTROL VALVE (3 SPOOL)

Запчасти Case W20 (316) - LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

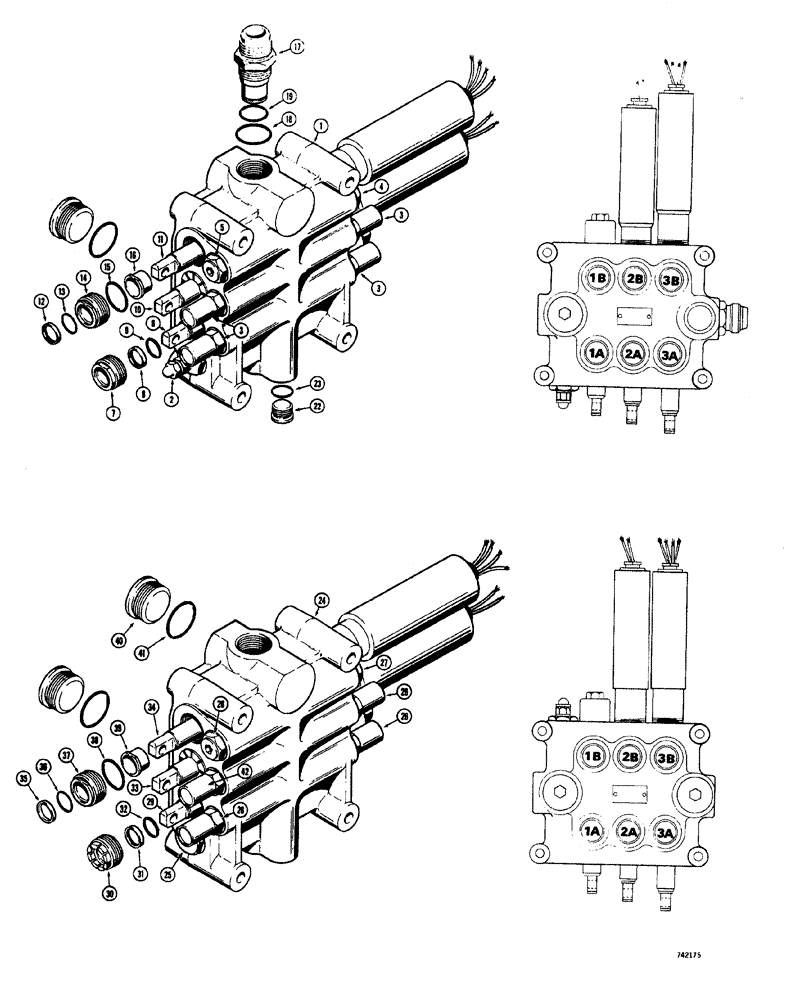

Схема запчастей Case W20 - (316) - LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS
7
2
32
4
42
1
35
11
40
28
8
12
30
26
14
10
34
37
13
3
6
19
41
39
3
29
5
26
9
22
16
33
17
31
26
15
23
38
27
25
24
18
36
3

№

Артикул

Название

Примечание

Количество

L48732

CONTROL VALVE

loader control, 3 spool, Includes Ref: 1-23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, See parts list Figure: 332

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - set ondary relief (Used in ports 1A, 2 A, 1B and 2B), See parts list Figure: 334

4шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Used in port 3B), See parts list Figure: 332

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration (Used in port 3A), See parts list Figure: 334

1шт.

6

L33751

SPOOL

valve, Drott clam, See parts list Figure: 330

1шт.

7

L32608

RETAINER

AND WIPER - Drott clam spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

SEAL retainer

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

10

L33752

SPOOL

valve, tilt, See parts list Figure: 324

1шт.

11

L33753

SPOOL

valve, lift, See parts list Figure: 320

1шт.

12

A28211

OIL SEAL

lift spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

14

L32612

RETAINER

SEAL

1шт.

15

L32613

O-RING

large

1шт.

16

L32611

SLEEVE

SLEEVE - lift spool

1шт.

L32605

FITTING

ASSEMBLY - high pressure carry over, Includes Ref: 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING - high pressure carry over

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

large

1шт.

19

A32178

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

small

1шт.

20

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head (Large), Includes Ref: 21

1шт.

21

2l8-5011

SEAL - "O"ring

1шт.

22

86625138

PLUG,7/18" - 14

Pipe, (Small), Includes Ref. 23

1шт.

23

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

L53153

VALVE

VALVE - loader control, 2 spool (Use L71422 valve, L70848 connector and L70849 connector), Includes Ref: 24-42

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - man relief, See parts list Figure: 332

1шт.

26

L35319

VALVE

secondary relief (Used in ports 1A, 1B and 2B), See parts list Figure: 338

3шт.

27

L35320

VALVE

check (Used in port 3B), See parts list Figure: 338

1шт.

28

L35321

VALVE

check, regeneration (Used in port 3A), See parts list Figure: 338

1шт.

29

L33751

SPOOL

valve, clam, See parts list Figure: 330

1шт.

30

T32608

SCREW

RETAINER AND WIPER - spool

1шт.

31

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

SEAL retainer

1шт.

32

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

33

L35385

SPOOL

valve, tilt, See parts list Figure: 326

1шт.

34

L33753

SPOOL

valve, lift, See parts list Figure: 320

1шт.

35

A28211

OIL SEAL

WIPER - spool

1шт.

36

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

37

L32612

RETAINER

SEAL

1шт.

38

L32613

O-RING

large

1шт.

39

L32611

SLEEVE

SLEEVE - spool

1шт.

40

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head, Includes Ref: 41

2шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

42

L35386

VALVE

secondary relief (Used in port 2A), See parts list Figure: 338

1шт.
