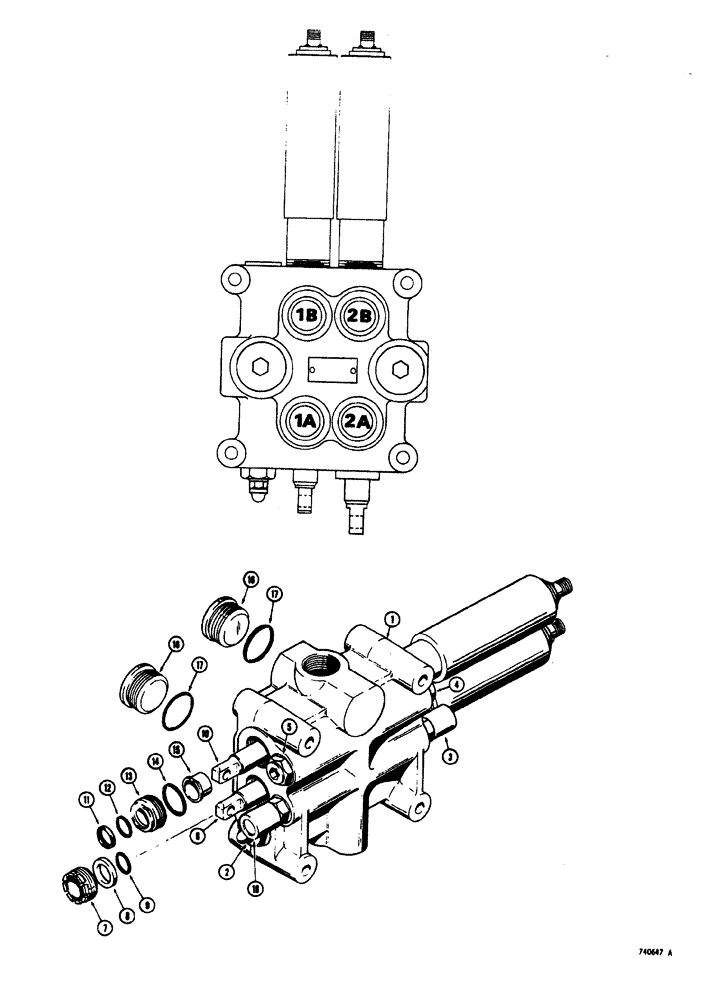

Запчасти Case W20 (314) - L57678 AND L70410 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L57678

VALVE

loader control, 2 spool, Includes Ref: 1-18

1шт.

L70410

SPOOL

VALVE - load control, 2 spool, Includes Ref: 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, See part list Figure: 332

1шт.

3

L35319

VALVE

secondary relief (Used at port 1B), See parts list Figure: 338

1шт.

4

L35320

VALVE

check (Used at port 2B), See parts list Figure: 338

1шт.

5

L35321

VALVE

check, regeneration (Used at port 2A), See parts list Figure: 338

1шт.

6

D63369

SPOOL

valve, tilt, See parts list Figure: 328

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes Ref: 7-9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

SEAL retainer

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

special

1шт.

10

D63370

SPOOL

valve, lift, See parts list Figure: 322

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes Ref: 11-15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

13

L32612

RETAINER

seal

1шт.

14

L32613

O-RING

large

1шт.

15

L32611

SLEEVE

SLEEVE - spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head, Includes Ref: 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

18

L35386

VALVE

secondary relief (Used at port 1A), See parts list Figure: 338

1шт.
