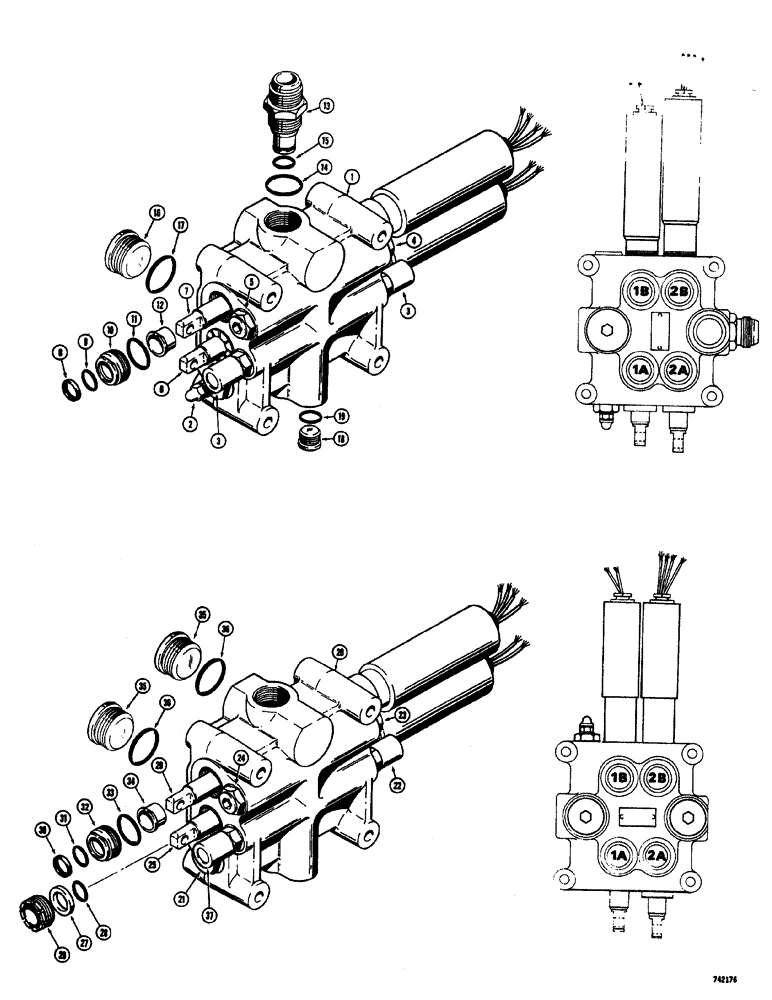

Запчасти Case W20 (312) - LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L48130

LOCK VALVE

loader control, 2 spool, Includes Ref: 1-19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - mam relief, See parts list Figure: 332

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Used at ports 1A and 1B), See parts list Figure: 334

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check (Used at port 2B), See parts list Figure: 332

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, regeneration (Used at port 2A), See parts list Figure: 334

1шт.

6

L33752

SPOOL

valve, tilt, See parts list Figure: 324

1шт.

7

L33753

SPOOL

valve, lift, See parts list Figure: 320

1шт.

8

A28211

OIL SEAL

WIPER - lift spool

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

10

L32612

RETAINER

SEAL

1шт.

11

L32613

O-RING

large

1шт.

12

L32611

SLEEVE

SLEEVE - lift spool

1шт.

L32605

FITTING

ASSEMBLY - high pressure carry over, Includes Ref: 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

FITTING - high pressure carry over

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

large

1шт.

15

A32178

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

small

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe , hex socket head, Includes Ref: 17

1шт.

17

2l8-5011

SEAL - "O"ring

1шт.

18

86625138

PLUG,7/18" - 14

Pipe, Includes Ref. 19

1шт.

19

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

L53152

VALVE

loader control, 2 spool (When stock is exhausted L70410 valve (1) L70848 connector and (1) L70849 connector will be supplied), Includes Ref: 20-37

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - main relief, See parts list Figure: 332

1шт.

22

L35319

VALVE

secondary relief (Used at port 1B), See parts list Figure: 338

1шт.

23

L35320

VALVE

check (Used at port 2B), See parts list Figure: 338

1шт.

24

L35321

VALVE

check, regeneration (Used at port 2A), See parts list Figure: 338

1шт.

25

L35385

SPOOL

valve, tilt, See parts list Figure: 326

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes Ref: 26-28

1шт.

26

L32608

RETAINER

AND WIPER - spool

1шт.

27

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

28

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

special

1шт.

29

L33753

SPOOL

valve, lift, See parts list Figure: 320

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes Ref: 30-34

1шт.

30

A28211

OIL SEAL

WIPER - spool

1шт.

31

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

small

1шт.

32

L32612

RETAINER

SEAL

1шт.

33

L32613

O-RING

large

1шт.

34

L32611

SLEEVE

SLEEVE - spool

1шт.

35

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

pipe, hex socket head, Includes Ref: 36

2шт.

36

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

37

L35386

VALVE

secondary relief (Used at port 1A), See parts list Figure: 338

1шт.
