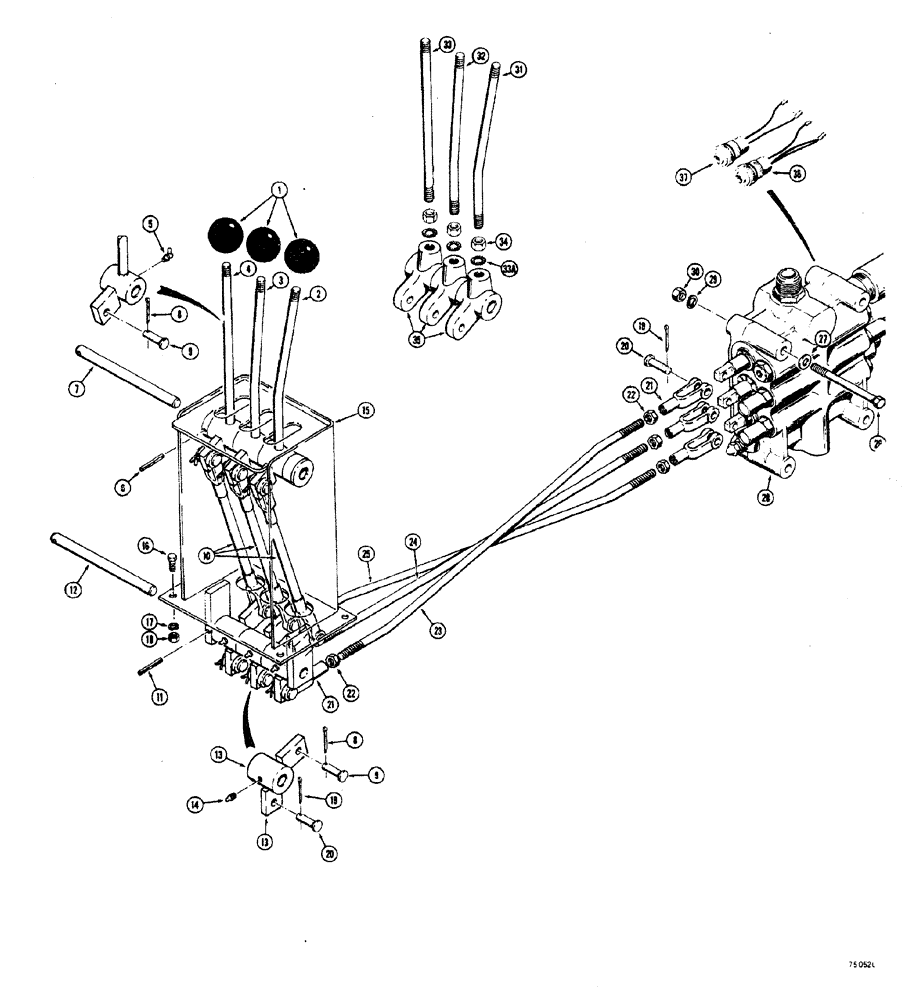

Запчасти Case W20 (308) - LOADER CONTROL VALVE & LEVERS (3 SPOOL) CASE P/N IS STAMPED ON VALVE IDENTIFICATION PLATE (08) - HYDRAULICS

1

A23885

KNOB

control lever

3шт.

2

L47977

LEVER

AND BELLCRANK ASSEMBLY - use L51830 bellcrank, L51853 lever, 193-48 lock washer and 25-148 nut

1шт.

3

L47979

LEVER

AND BELLCRANK ASSEMBLY - before tractor Sn 9115403 use L51830 bellcrank, L51854 lever, 193-48 lock washer and 25-148 nut; after tractor Sn 9115403 use L57941 lever, L51830 bellcrank and 25-148 nut

1шт.

4

L47478

LEVER AND BELLCRANK ASSEMBLY - before tractor Sn 9115403 use L51830 bellcrank, L51855 lever, 195-45 lock washer and 25-148 nut; after tractor Sn 9115403 use L57940 lever, L51830 bellcrank and 25-148 nut

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

3шт.

6

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

1шт.

7

L47816

SHAFT

lever pivot

1шт.

8

132-48

COTTER PIN,1/8" x 1"

6шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

clevis, 1/2"

6шт.

10

L47998

ROD

ROD - connecting

3шт.

11

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

1шт.

12

L47816

SHAFT

BELLCRANK - pivot

1шт.

13

L51047

DIPPER

BELLCRANK - spool actuating

3шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight (1/8" NPT)

3шт.

15

L54716

CONSOLE

control

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

4шт.

19

132-48

COTTER PIN,1/8" x 1"

6шт.

20

141-6

CLEVIS PIN,1/2" x 1.360"

clevis, 1/2"

6шт.

21

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - connecting link

6шт.

22

25-158

JAM NUT,Jam, 1/2"-20, G5

hex, iam (1/2" - 20 NF)

6шт.

23

L47818

ROD

LINK - connecting, bellcrank to valve (Lift spool)

1шт.

24

L47817

ROD

LINK - connecting, bellcrank to valve (Tilt spool)

1шт.

25

L47818

ROD

LINK - connecting bellcrank to valve (Bucket clam spool)

1шт.

26

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

27

95-8

WASHER,1/2"

3шт.

L48732

CONTROL VALVE

hydraulic, Used tractor Sn 9109734, See parts list Figure: 316

1шт.

28

L53153

VALVE

hydraulic, Used tractor Sn 9109734 and after (Used 71422 valve, L70848 connector and L70849 connector), See parts list Figure: 316

1шт.

28

L57679

SPARE PART hydraulic, Used tractor Sn 9109734 and after, See parts list Figure: 318

1шт.

28

L70411

VALVE

hydraulic, Used tractor Sn 9109734 and after, See parts list Figure: 318

1шт.

28

L71422

VALVE

hydraulic, Used tractor Sn 9109734 and after, See parts list Figure: 319A

1шт.

29

92-8

LOCK WASHER,1/2"

3шт.

30

25-108

NUT,1/2"-13, G5

Hex

3шт.

31

L51853

LEVER

loader lift control (If used)

1шт.

32

L51854

LEVER

loader tilt control (If used)

1шт.

33

L57940

GRIP

LEVER - bucket clam control (If used)(

1шт.

33a

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

If used

3шт.

34

25-148

JAM NUT,Jam, 1/2"-13, G5

Hex, NC, if used

3шт.

35

L51830

LEVER

BELLCRANK control (If used)

3шт.

36

L70848

CONNECTOR, ELEC

CONNECTOR amphenol, If used

1шт.

37

L70849

CONNECTOR, ELEC

CONNECTOR amohenol, If used

1шт.
