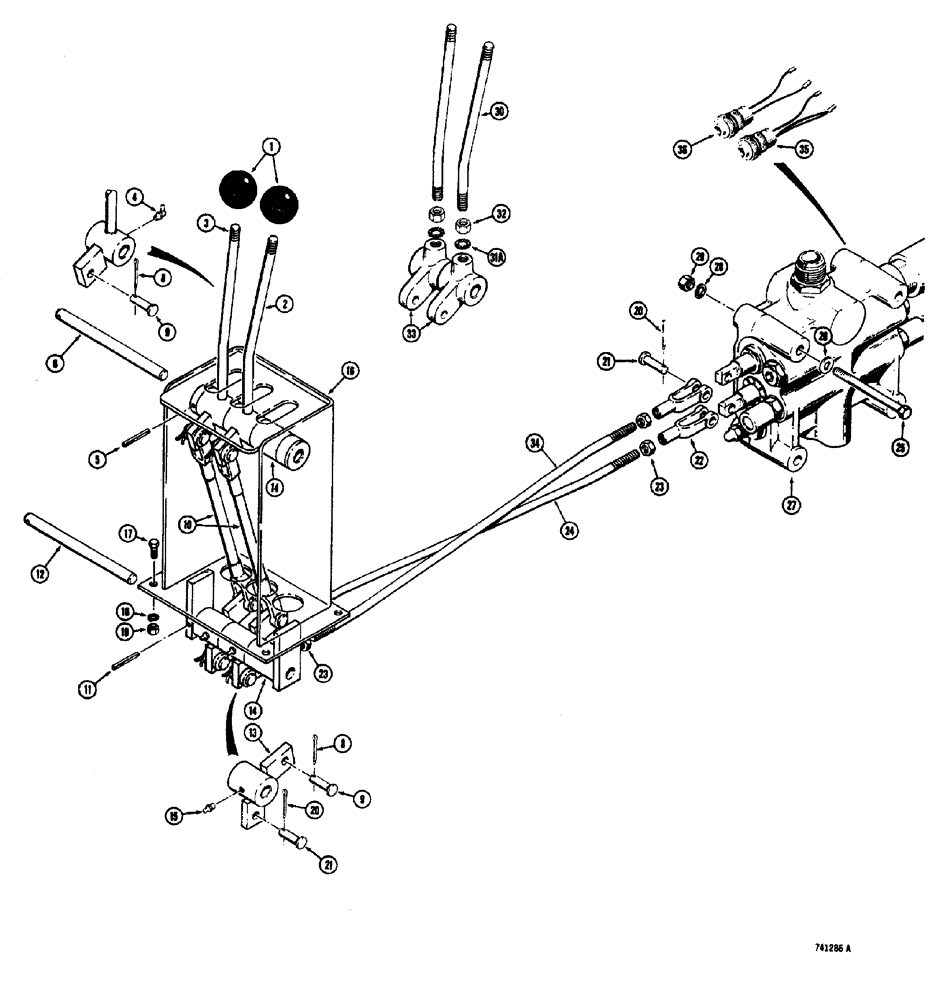

Запчасти Case W20 (306) - LOADER CONTROL VALVE & LEVERS (2 SPOOL) CASE P/N IS STAMPED ON VALVE IDENTIFICATION PLATE (08) - HYDRAULICS

1

A23885

KNOB

control lever

2шт.

2

L47977

LEVER

AND BELLCRANK ASSEMBLY use L51830 bellcrank, L51853 lever, 193-48 lock washer and 25-148 nut

1шт.

3

L47979

LEVER

AND BELLCRANK ASSEMBLY before Sn 9115403 use L51830 bellcrank, L51854 lever, 193-48 lock washer and 25-148 nut; after tractor Sn 9115403 use L57941 lever, L51830 bellcrank and 25-148 nut

1шт.

4

21955

SPARE PART

FITTING grease 90°, 1/8" NPT

2шт.

5

13867

PIN

PIN roll, 1 /8" dia. x 1-3/4" long

1шт.

6

L47816

SHAFT

lever pivot

1шт.

7

RESERVED

1шт.

8

132-48

COTTER PIN,1/8" x 1"

4шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

clevis 1/2"

4шт.

10

L47998

ROD

ROD connecting

2шт.

11

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

1шт.

12

L47816

SHAFT

BELLCRANK pivot

1шт.

13

L51047

DIPPER

BELLCRANK spool actuating

2шт.

14

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER pivot shaft

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight, 1/8" NPT

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

20

132-48

COTTER PIN,1/8" x 1"

4шт.

21

141-6

CLEVIS PIN,1/2" x 1.360"

clevis, 1/2"

4шт.

22

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

clevis, connecting link

4шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

hex, jam, 1/2" - 20 NF

4шт.

24

L47818

ROD

LINK connecting loader tilt spool

1шт.

25

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

26

95-8

WASHER,1/2"

standard wrot

3шт.

27

L48130

LOCK VALVE

hydraulic before tractor Sn 9109734, See parts list Figure: 312

1шт.

27

L53152

VALVE

hydraulic tractor Sn 9109734 and after, See parts list Figure: 312, use L70410 valve L70848 connector and L70849 connector

1шт.

27

L57678

VALVE

hydraulic tractor Sn 9109734 and after, See parts list Figure: 314

1шт.

27

L70410

SPOOL

VALVE hydraulic tractor Sn 9109734 and after, See parts list Figure: 314

1шт.

28

92-8

LOCK WASHER,1/2"

3шт.

29

25-108

NUT,1/2"-13, G5

Hex

3шт.

30

L51853

LEVER

loader lift control, if used

1шт.

31

L51854

LEVER

loader tilt control, if used

1шт.

31a

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

If used

2шт.

32

25-148

JAM NUT,Jam, 1/2"-13, G5

Hex, NC, if used

2шт.

33

L51830

LEVER

BELLCRANK control, if used

2шт.

34

L47817

ROD

LINK connecting loader lift spool

1шт.

35

L70848

CONNECTOR, ELEC

CONNECTOR amphenol, if used

1шт.

36

L70849

CONNECTOR, ELEC

CONNECTOR amphenol, if used

1шт.
