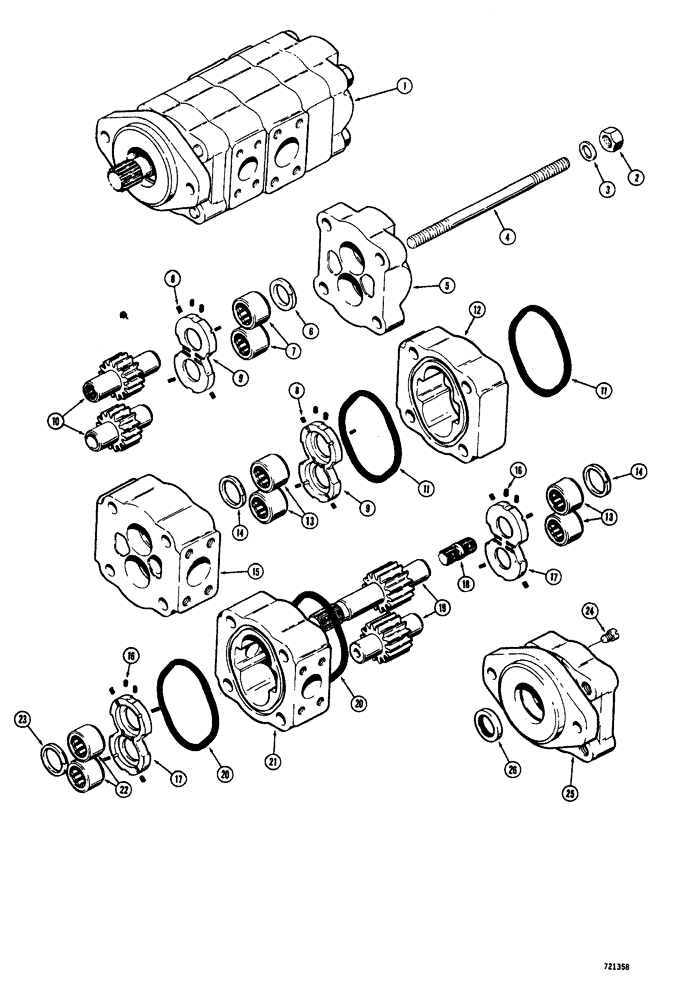

Запчасти Case W20 (304) - L26895 LOADER AND STEERING PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
L26895
PUMP
ASSEMBLY - hydraulic, loader and steering (Loader - 48 G.P.M., steering - 23 G.P.M. @ 2000 P.S.I. @2200 R.P.M.) Commercial Shearing #C-P50B-14, Includes Ref: 2-26
1шт.
L26895R
REMAN-HYD PUMP
W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403)W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403)
1шт.
L26895C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
L32112
NUT
hex , special (5/8" - 11 NC)
4шт.
3
D31957
WASHER
special
4шт.
4
L32328
STUD
special (5/8" - 11 NC x 10-3/4")
4шт.
L32327
KIT
SPARE PART COVER ASSEMBLY - closed end, Includes Ref: 5-7
1шт.
5
NSS
NOT SOLD SEPARAT
COVER - closed end
1шт.
6
L32319
SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk
RING - bronze
1шт.
7
D31942
ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"
roller
2шт.
8
L32099
SEAL
pocket, thrust plate
12шт.
9
D31955
PLATE
thrust
2шт.
10
L32325
GEAR
wide
1шт.
11
D41391
O-RING
RING square edge
2шт.
12
L32326
HOUSING
gear (1"wide gears) Closed end
1шт.
L32323
BEARING WASHER
CARRIER ASSEMBLY - bearing, Includes Ref: 13-15
1шт.
13
D31942
ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"
roller
4шт.
14
L32319
SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk
RING - bronze
2шт.
15
NSS
NOT SOLD SEPARAT
CARRIER - bearing
1шт.
16
L32099
SEAL
pocket, thrust plate
12шт.
17
D31955
PLATE
thrust
2шт.
18
L32324
SHAFT
connecting, drive gears
1шт.
19
L32321
GEAR
AND SHAFT SET - matched, drive and driven gears (2" wide) Integral shaft
1шт.
20
D41391
O-RING
RING square edge
2шт.
21
L32322
HOUSING
gear (2" wide gears) Shaft end
1шт.
L32317
COVER
ASSEMBLY - shaft end, Includes Ref: 22-26
1шт.
22
D31942
ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"
roller
2шт.
23
L32319
SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk
RING - seal, bronze
1шт.
24
L32320
PLUG
special (7/16" - 20 NF)
1шт.
25
NSS
NOT SOLD SEPARAT
COVER - shaft end
1шт.
26
L32318
SEAL
shaft, double lip
1шт.
Выбрано товаров: 31
