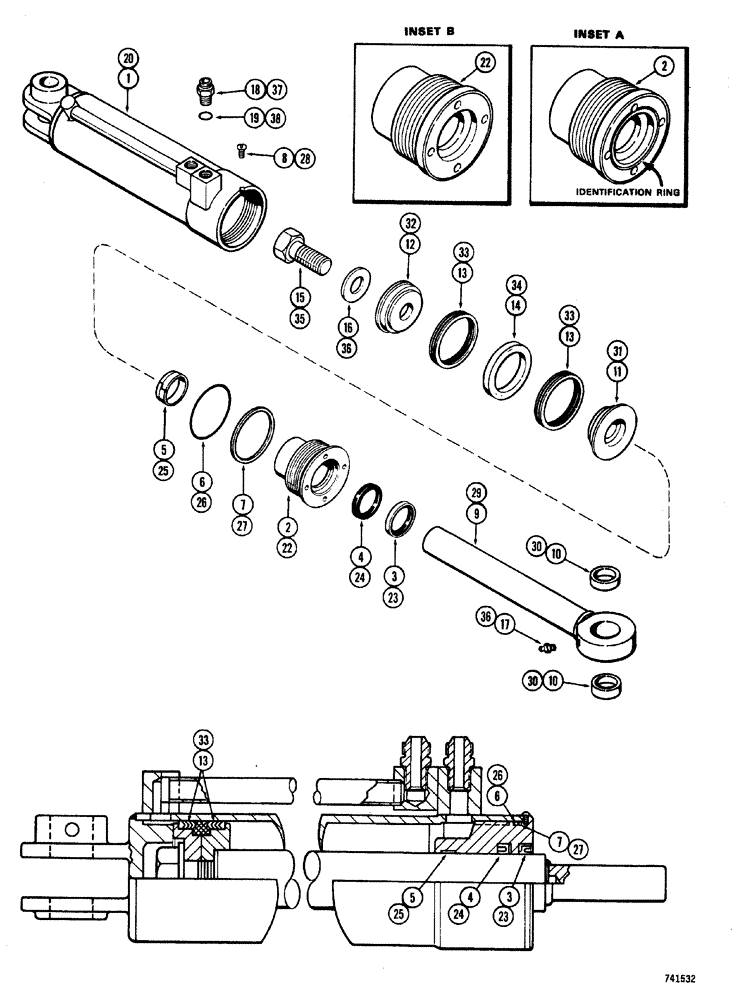

Запчасти Case W20 (300) - CLAM CYLINDERS, WITH GLAND IDENTIFICATION RING (08) - HYDRAULICS

G33624

CYLINDER

ASSEMBLY - L.H.(4" dia. x 10" stroke), Includes Ref: 1-19

1шт.

G33625

HYDRAULIC CYLINDER

ASSEMBLY - R.H. (4" dia. x 1O" stroke), Includes Ref: 1-19

1шт.

1

G31964

HYD TUBE,18.69" L

cylinder body R.H.

1шт.

1

G31965

HYD TUBE

cylinder body L.H.

1шт.

G33640

GLAND

ASSEMBLY - with identification ring, Includes Ref: 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - See inset A

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod outer (2" x 2-1/2" x 5/16")

1шт.

Part of seal kit P/N G32299

1шт.

4

D36971

RING

SEAL- piston rod (2" x 2-1/2" x 7/16")

1шт.

Part of seal kit P/N G32299

1шт.

5

D27380

SCRAPER RING

WIPER - piston rod inner (Split type)

1шт.

Part of seal kit P/N G32299

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

GLAND (4" x 4-1/4" x 1/8")

1шт.

Part of seal kit P/N G32299

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland

1шт.

Part of seal kit P/N G32299

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

GLAND lock (#6 - 32 NC x 1/4" self tapping)

1шт.

9

G33626

ROD

ASSEMBLY - piston (2" dia.)

1шт.

10

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

ROD piston

2шт.

11

G33623

PISTON

split (Rod end)

1шт.

12

D28370

PISTON

split (Bolt end)

1шт.

13

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type)

2шт.

Part of seal kit P/N G32299

1шт.

14

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

center bearing

1шт.

15

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Piston

1шт.

16

G32351

WASHER

BOLT piston (1-3/8" x 2-1/2" x 1/8")

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT. straight)

1шт.

18

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

ASSEMBLY - tube

2шт.

19

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

CONNECTOR (3/4" x 15/16" x 3/32")

1шт.

G32299

KIT

SEAL, Includes Refs. 3, 4, 5, 6, 7, 13, 23, 24, 25, 26, 27 and 33

1шт.

G32671

CYLINDER

L.H. 4" dia. x 10" stroke (Use G33624), Includes Ref: 20-38, Clam Cylinders withouth Gland Identification Ring

1шт.

G32672

CYLINDER

R.H. 4" dia. x 10" stroke (Use G33625), Includes Ref: 20-38, Clam Cylinders withouth Gland Identification Ring

1шт.

20

G31964

HYD TUBE,18.69" L

cylinder body R.H., Clam Cylinders withouth Gland Identification Ring

1шт.

20

G31965

HYD TUBE

cylinder body L.H., Clam Cylinders withouth Gland Identification Ring

1шт.

21

G32737

GLAND

ASSEMBLY - not shown, Includes Ref: 22-27, Clam Cylinders withouth Gland Identification Ring

1шт.

22

NSS

NOT SOLD SEPARAT

GLAND - See inset B, Clam Cylinders withouth Gland Identification Ring

1шт.

23

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod outer (2" x 2-1/2" x 5/16"), Clam Cylinders withouth Gland Identification Ring

1шт.

Part of seal kit P/N G32299

1шт.

24

D36971

RING

SEAL - piston rod (2" x 2-1/21" x 7/16"), Clam Cylinders withouth Gland Identification Ring

1шт.

Part of seal kit P/N G32299

1шт.

25

D27380

SCRAPER RING

WIPER - piston rod inner (Split type), Clam Cylinders withouth Gland Identification Ring

1шт.

Part of seal kit P/N G32299

1шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

GLAND (4" x 4-1/4" x 1/8"), Clam Cylinders withouth Gland Identification Ring

1шт.

Part of seal kit P/N G32299

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland, Clam Cylinders without Gland Identification Ring

1шт.

Part of seal kit P/N G32299

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

GLAND lock (48" - 32 NC x 1/4" self tapping), Clam Cylinders withouth Gland Identification Ring

1шт.

29

G31974

ROD

ASSEMBLY - piston (2" dia.) Order (1) G33626 rod, (1) G33640 gland & (1) G33623 piston, Includes Ref: 30, Clam Cylinders withouth Gland Identification Ring

1 ^mшт.

30

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

ROD piston, Clam Cylinders withouth Gland Identification Ring

2шт.

31

D28371

PISTON

split (Rod end), Clam Cylinders withouth Gland Identification Ring

1шт.

32

D28370

PISTON

split (Bolt end), Clam Cylinders withouth Gland Identification Ring

1шт.

33

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type), Clam Cylinders withouth Gland Identification Ring

2шт.

Part of seal kit P/N G32299

1шт.

34

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

center bearing, Clam Cylinders withouth Gland Identification Ring

1шт.

35

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

Rod piston, Clam Cylinders without Gland Identification Ring

1шт.

36

G32351

WASHER

BOLT piston (1-3/8" x 2-1/2" x 1/8"), Clam Cylinders withouth Gland Identification Ring

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT straight), Clam Cylinders withouth Gland Identification Ring

1шт.

37

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

ASSEMBLY - tube, Includes Ref: 38, Clam Cylinders withouth Gland Identification Ring

2шт.

38

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

CONNECTOR (3/4" x 15/16" x 3/32"), Clam Cylinders withouth Gland Identification Ring

1 ^mшт.

G32299

KIT

SEAL, Includes Refs. 3, 4, 5, 6, 7, 13, 23, 24, 25, 26, 27 and 33

1шт.
