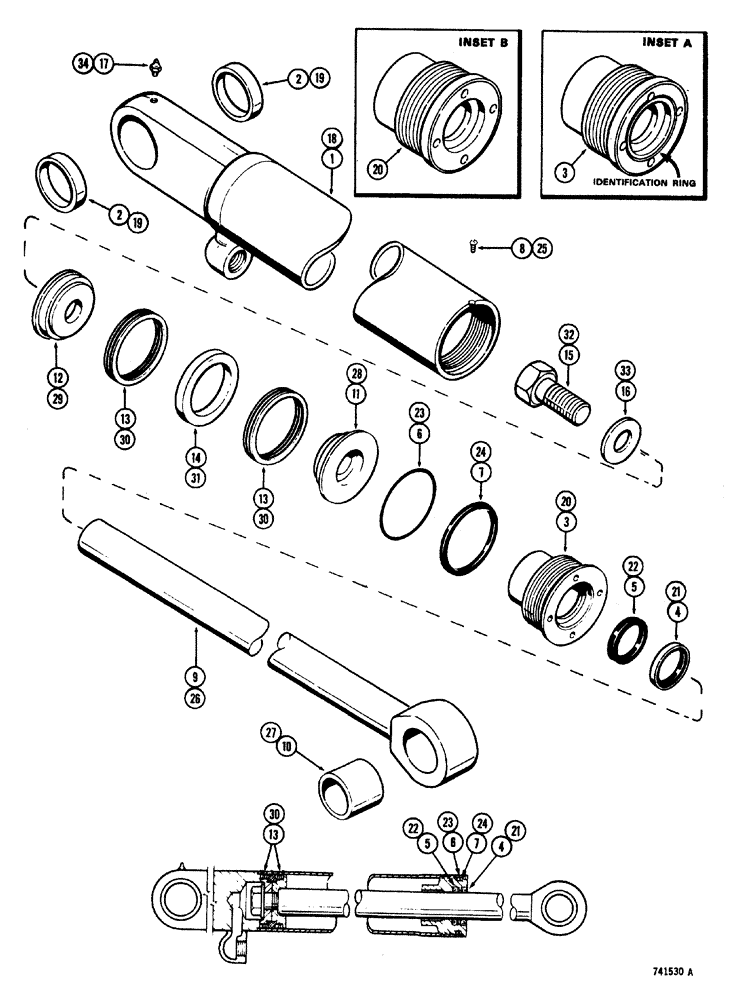

Запчасти Case W20 (298) - TILT CYLINDERS GLAND WITH I.D. RING USED ON TRACTOR SN. 9109476-9109480 ALSO SN. 9109534 AND AFTER (08) - HYDRAULICS

G33592

HYDRAULIC CYLINDER

ASSEMBLY- tilt, R.H. (4" dia. x 28-3/8" stroke), Includes Ref: 1-17

1шт.

G33593

CYLINDER

ASSEMBLY - tilt, L.H. (4" dia. x 28-3/8 stroke), Includes Ref: 1-17

1шт.

1

G32840

TUBE,41.44" L

ASSEMBLY - cylinder body R.H., Includes Ref: 2

1шт.

1

G32841

TUBE

ASSEMBLY - cylinder body L.H., Includes Ref: 2

1шт.

2

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

tube

2шт.

G33190

GLAND

ASSEMBLY - with bushing

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - See inset A (With identification ring)

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod outer (2" x 2-1/2" x 5/16")

1шт.

Part of seal kit P/N G32615

1шт.

5

D36971

RING

SEAL - piston rod (2" x 2-1/2" x 7/16")

1шт.

Part of seal kit P/N G32615

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

GLAND (4" x 4-1/4" x 1/8")

1шт.

Part of seal kit P/N G32615

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland

1шт.

Part of seal kit P/N G32615

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

GLAND lock (#8 - 32 NC x 1/4" self tapping)

1шт.

9

G33594

PISTON

POD ASSEMBLY (2" dia.)

1шт.

10

D43223

BUSHING

ROD piston

1шт.

11

G33159

PISTON

split (Rod end)

1шт.

12

D46930

PISTON

split (Bolt end)

1шт.

13

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston (" V" type)

2шт.

Part of seal kit P/N G32615

1шт.

14

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

center bearing

1шт.

15

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

Piston

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT straight)

1шт.

G32615

KIT

SEAL - cylinder repair, Includes Refs. 4, 5, 6, 7, 13, 21, 22, 23, 24 and 30

1шт.

G32771

CYLINDER

ASSEMBLY - tilt, L.H. (4" dia. x 28-3/8" stroke), Includes Ref: 18-34, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

G32772

CYLINDER

ASSEMBLY - tilt, R.H. (4" dia. x 28-3/8" stroke), Includes Ref: 18-34, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

18

G32840

TUBE,41.44" L

ASSEMBLY - cylinder R.H., Includes Ref: 19, Gland without Identification Ring, Use Before Tractor Sn 9109476 and 9109481 to 9109533

1шт.

18

G32841

TUBE

ASSEMBLY - cylinder L.H., Includes Ref: 19, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

19

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

tube, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

2шт.

G32800

GLAND

ASSEMBLY - with bushing, Includes Ref: 20-24, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

20

NSS

NOT SOLD SEPARAT

GLAND - See insert B (Without identification ring), Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

21

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod outer (2" x 2-1/2" x 5/16"), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

Part of seal kit P/N G32615

1шт.

22

D36971

RING

SEAT - piston rod (2" x 2-1/2" x 7/16"), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

Part of seal kit P/N G32615

1шт.

23

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

GLAND (4" x 4-1/4" x 1/8"), Gland without Identification Ring, Use Before Tractor Sn 9109476 and 9109481 to 9109533

1шт.

Part of seal kit P/N G32615

1шт.

24

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland without Identification Ring, Use before Tractor S/N 9109476 and, Serial Range: 9109481-9109533

1шт.

Part of seal kit P/N G32615

1шт.

25

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

GLAND lock (#8 - 32 NC x 1/4" self-tapping), Gland without Identification Ring, Use Before Tractor Sn 9109476 and 9109481 to 9109533

1шт.

26

G32847

PISTON ROD

ASSEMBLY (2" dia.), Includes Ref: 27, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

27

D43223

BUSHING

ROD piston, Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

28

D46424

PISTON

split (Rod end), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

29

D46930

PISTON

split (Bolt end), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

30

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ( V"" type), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

2шт.

Part of seal kit P/N G32615

1шт.

31

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

center bearing, Gland without Identification Ring, Use Before Tractor Sn 9109476 and 9109481 to 9109533

1шт.

32

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

Piston, Gland without Identification Ring, Use before tractor S/N 9109476 and 9109481 to 9109533

1шт.

33

G32351

WASHER

BOLT piston (1-3/8" x 2-1/2" x 1/8"), Gland without Identification Ring, Use Before Tractor Sn 9109476 and, Serial Range: 9109481-9109533

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT straight), Gland without Identification Ring, Use Before Tractor Sn 9109476 and 9109481 to 9109533

1шт.

G32615

KIT

SEAL - cylinder repair, Includes Refs. 4, 5, 6, 7, 13, 21, 22, 23, 24 and 30

1шт.
