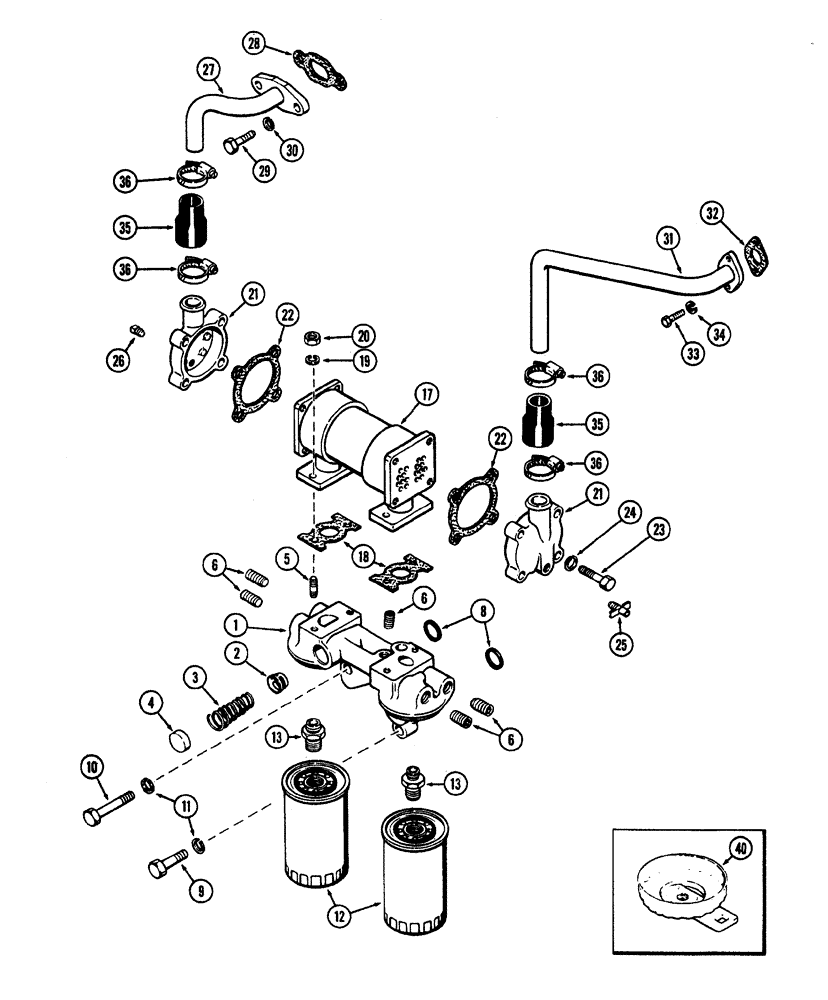

Запчасти Case W20 (014) - OIL FILTER & HEAT EXCHANGER (401 BD) DIESEL ENG. USED ENG. SN. 2523871-2570670 W/ DUAL FILTERS (02) - ENGINE

1

A64107

BASE

ASSY oil filter & heat exchanger, Includes Ref: 2-6

1шт.

2

A21090

VALVE

relief

1шт.

3

A58669

SPRING

relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

cup type, 1-1/4"

1шт.

5

G11204

STUD

3/8" NC x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

square socket head, 1/2" PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

base to block, 15/16" x 1-1/8" x 3/32"

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

11

195-33

WASHER,1/2"

x 1-1/16" x 1/16" 1/2"

2шт.

12

A64453

ENGINE OIL FILTER

oil

2шт.

13

A64454

ADAPTER

ADAPTER, Serial Range: filter-base

2шт.

17

A63917

COOLER

EXCHANGER heat, engine oil

1шт.

18

A65359

GASKET

, Serial Range: exchanger-base

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

4шт.

21

A64349

HOOD

BONNET end, heat exchanger

2шт.

22

A63920

GASKET

bonnet

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

217-107

VALVE

DRAINCOCK heat exchanger

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" PT

1шт.

27

A64350

TUBE

, Serial Range: exchanger-block

1шт.

28

A58670

GASKET

, Serial Range: tube-block

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

A66714

TUBE

water pump to heat exchange, Replaces: A64445, used w/30 and 35 amp alternators

1шт.

31

L55072

SPARE PART water pump to heat exchange, used w/70 amp alternator 4.9" L

1шт.

32

A58680

OIL PAN GASKET SET

tube to water pump

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

A64353

HOSE

, Serial Range: bonnet-tube

2шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose, 1-3/16" to 1-3/4"

4шт.

40

A64761

TOOL

WRENCH filter changer

1шт.
