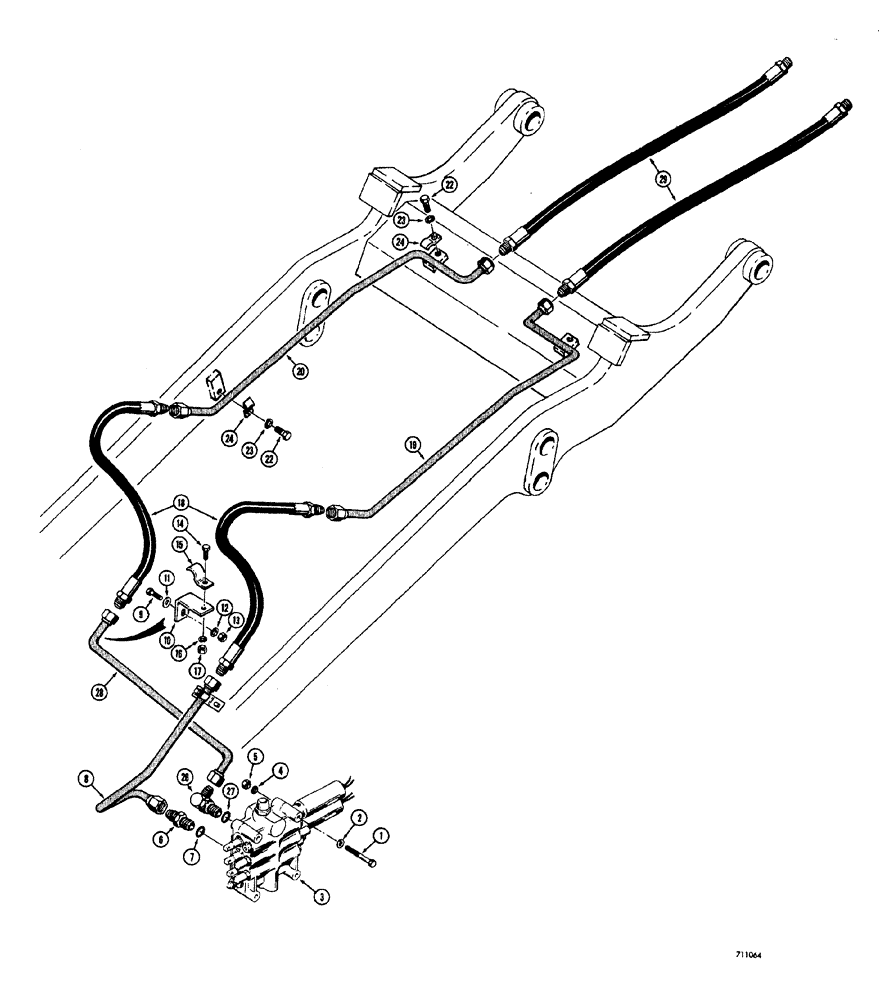

Запчасти Case W20 (292) - LOADER HYDRAULICS DROTT CLAM CYLINDER HYDRAULICS (08) - HYDRAULICS

1

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

2

95-8

WASHER,1/2"

standard wrot

3шт.

3

REF

INSTRUCTION

VALVE - loader, See Figures: 306 or 308 for valve

1шт.

5

25-108

NUT,1/2"-13, G5

Hex

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Straight, Incl. Ref 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

L48796

PIPE,1" OD

valve to closed end of clam cylinder at valve

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket to chassis)

2шт.

10

L48838

BRACKET

clamp mounting

2шт.

11

95-6

WASHER,3/8"

standard wrot

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp

2шт.

15

A12308

CLAMP

tube

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

18

L47758

HOSE

- valve to clam cylinder (37" long)

2шт.

19

L51539

TUBE,0.75" OD x 43, 9" L

valve to clam cylinder, at lift frame, R.H.

1шт.

20

L51532

TUBE,0.75" OD x 43, 9" L

valve to clam cylinder, at lift frame, L.H.

1шт.

21

RESERVED

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

L25930

CLAMP

tube

4шт.

25

RESERVED

1шт.

26

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref: 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

L48720

FILTER ASSY,1" OD x 29.9, 9.7" L

crossover, valve to closed end of clamp cylinder (At valve)

1шт.

29

L50719

HOSE

valve to clam cylinder at bucket

2шт.

30

L50374

BUCKET ASSEMBLY - Drott, 1-1/2 cu. yd. (Machinery item) (Not illustrated)

1шт.
