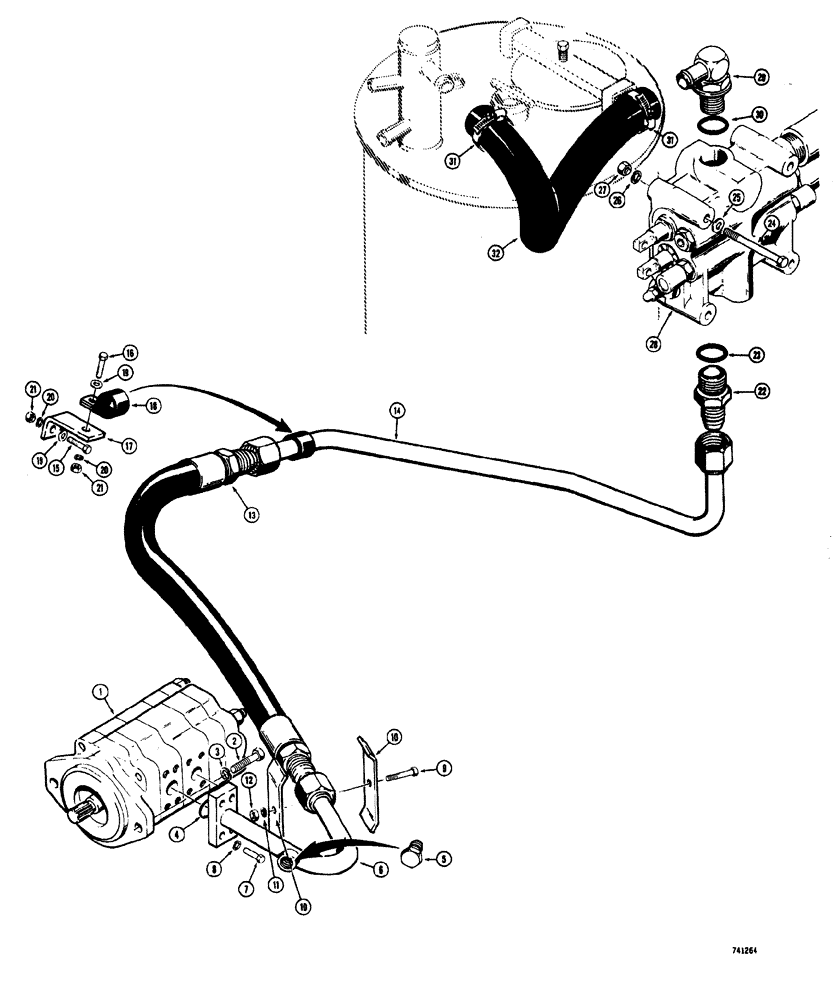

Запчасти Case W20 (286) - PRESSURE LINE WITHOUT REGENERATION HYDRAULICS TRACTOR S.N. 9109734 AND AFTER (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic loader and steering (Loader-48 G.P.M., steering - 23 G.P.M. @ 2000 P.S.I. @ 2200 R.P.M.), See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) PRESSURE LINE WITHOUT REGENERATION HYDRAULICS TRACTOR S.N. 9109734 AND AFTER

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

5

221-655

PLUG,Hex Hd, 3/4"-14

hydraulic tube, pipe (3/4" NPT) L53120 tube only

1шт.

6

L53120

HYD TUBE

pump to valve, at pump

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

L47503

BRACKET

CLAMP - tube

2шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

13

L47762

HOSE

pump to valve (36" long)

1шт.

14

L53391

TUBE

pump to valve, at valve (2 spool valve)

1шт.

14

L53401

TUBE,1.25" OD

pump to valve, at valve (3 spool valve)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket to chassis)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp

1шт.

17

L48388

BRACKET

clamp mounting

1шт.

18

D40471

CLAMP

tube

1шт.

19

95-6

WASHER,3/8"

standard wrot

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

22

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

male, straight, Includes Ref: 23

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

25

95-8

WASHER,1/2"

standard wrot

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

25108

NUT - hex. (1/2" - 13 NC)

3шт.

28

REF

INSTRUCTION

VALVE - loader control , See Figures: 306, 308 for proper valve

1шт.

29

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

STEM - hose, 90°, Includes Ref: 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose

2шт.

32

L48894

HOSE

low pressure, control valve to tank (17" long)

1шт.
