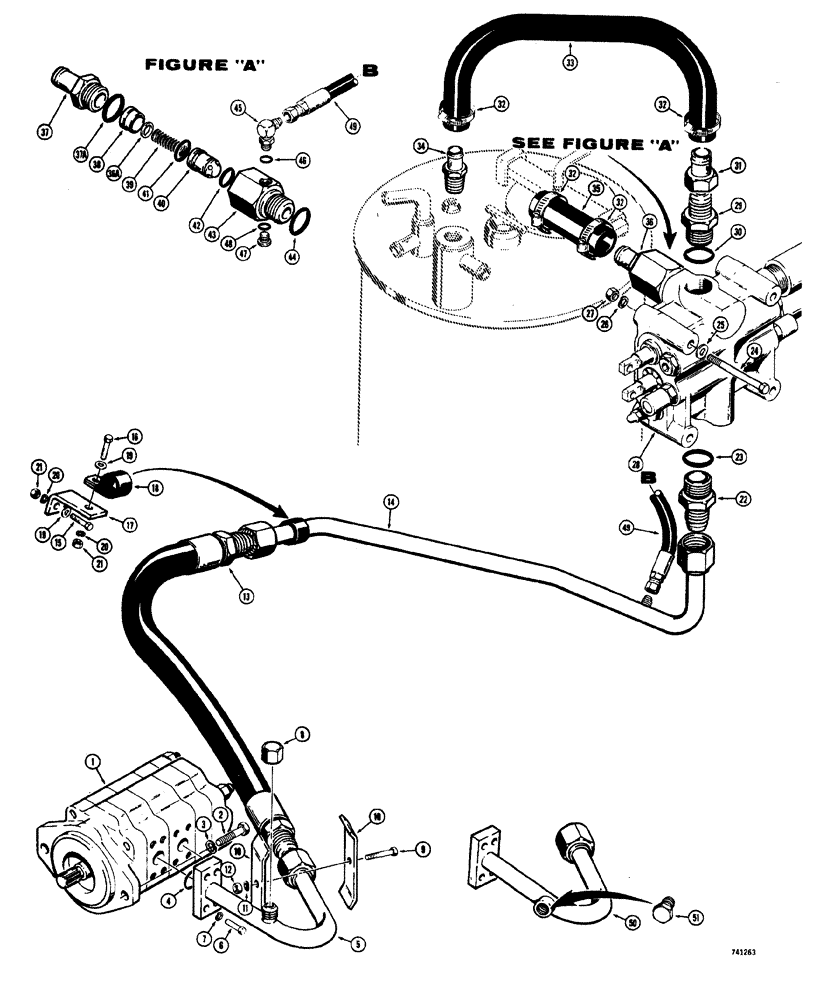

Запчасти Case W20 (282) - PRESSURE LINE AND REGENERATION HYDRAULICS TRACTOR S.N. 9107854 THRU 9109734 (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering, See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

5

L51300

TUBE

pump to valve, at pump (When stock is exhausted, order L53120 tube and 221-655 plug for service)

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

218-758

CAP,37 Degree, 1 5/16"-12

CAP - hydrauhc tube (Used on L51300 tube)

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

L47503

BRACKET

CLAMP - tube

2шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

1шт.

13

L47762

HOSE

pump to valve (36" long)

1шт.

14

L50023

TUBE

pump to valve at valve (2 spool valve)

1шт.

14

L50022

TUBE

pump to valve at valve (3 spool valve)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket to chassis)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp

1шт.

17

L48388

BRACKET

CLAMP mounting

1шт.

18

D40471

CLAMP

tube

1шт.

19

95-6

WASHER,3/8"

standard wrot

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

22

2L8-5072

CONNECTOR - male, straight, Includes Ref: 23

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

25

95-8

WASHER,1/2"

standard wrot

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

25-108

NUT,1/2"-13, G5

Hex

3шт.

28

REF

INSTRUCTION

VALVE - loader control, See Figures: 306 and 308 for proper valve, Includes Ref: 29, 30

1шт.

29

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

male, straight, Includes Ref: 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

31

L51073

FITTING

STEM - hose, straight (At valve)

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose

4шт.

33

L70287

HOSE,1.00" ID x 22.00"

low pressure, control valve to tank (24" long)

1шт.

34

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

(At tank)

1шт.

35

D25759

HOSE

low pressure, check valve to tank (6" long)

1шт.

36

L47380

LOCK VALVE

check, regeneration, Includes Ref: 36A-44

1шт.

36a

L50226

SPACER

spring

1шт.

37

L45852

FITTING

check valve to manifold hose, Includes Ref: 37A

1шт.

37a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

38

L47371

SPACER

spring retainer

1шт.

39

L47372

VALVE SPRING

poppet

1шт.

40

L47370

VALVE POPPET

1шт.

41

L50227

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

poppet (Large)

1шт.

42

L33128

O-RING,0.984" ID x 0.139" Width

poppet (Small)

1шт.

43

L47369

BODY

VALVE

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

check valve to valve body

1шт.

45

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

adjustable, 90°, Includes Ref: 46

1шт.

46

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

47

9672438

PLUG,7/16" - 20 ORB

Hydraulic, Incl. Ref 48

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

49

L50021

HOSE ASSY.

SPARE PART check valve to pressure tube (24" long)

1шт.

50

L53120

HYD TUBE

pump to valve, at pump

1шт.

51

221-655

PLUG,Hex Hd, 3/4"-14

hydraulic tube, pipe (3/4" NPT) L53120 tube only

1шт.
