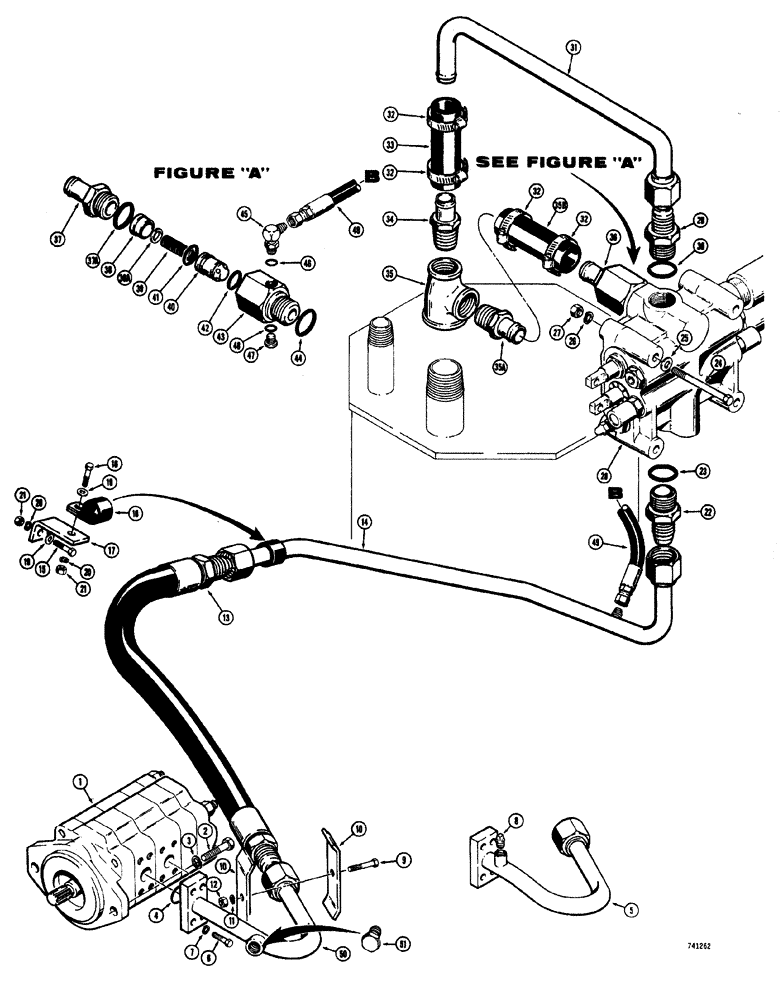

Запчасти Case W20 (278) - PRESSURE LINE AND REGENERATION HYDRAULICS BEFORE TRACTOR S.N. 9107854 (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering, See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) PRESSURE LINE AND REGENERATION HYDRAULICS BEFORE TRACTOR S.N. 9107854

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

5

L47513

TUBE

pump to valve at pump (When stock is exhausted, order L53120 tube and 221-655 plug for service)

1шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

1шт.

7a

991-11

PLUG - pipe, sq. head (1/8" NPT) Used on L47513 tube

1шт.

8

991-11

PLUG - pipe, sq. head (1/8" NPT) Used on L47513 tube

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

T47503

CLAMP - tube

2шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

1шт.

13

L47762

HOSE

pump to valve (36" long)

1шт.

14

L50023

TUBE

pump to valve at valve (2 spool valve)

1шт.

14

L50022

TUBE

pump to valve at valve (3 spool valve)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Bracket to chassis)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp

1шт.

17

L48388

BRACKET

CLAMP mounting

1шт.

18

D40471

CLAMP

tube

1шт.

19

95-6

WASHER,3/8"

standard wrot

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

22

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

male, straight

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

25

95-8

WASHER,1/2"

standard wrot

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

25-108

NUT,1/2"-13, G5

Hex

3шт.

28

REF

INSTRUCTION

VALVE - ldr. control, See Figures: 306 or 308 for proper valve

1шт.

29

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

male, straight, Includes Ref: 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

31

L47553

SPARE PART valve to tank 1.25" OD

1шт.

32

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

33

L47464

HOSE

low pressure (1" I.D.x 5-1/2" long)

1шт.

34

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM - hose straight (Control valve to tee)

1шт.

35

221-495

TEE - pipe reducing

1шт.

35a

217-169

STEM - hose straight (Tee to check valve)

1шт.

35b

D24546

SPARE PART low pressure (1" I.D.x 5-1/2" long)

1шт.

36

L47380

LOCK VALVE

check, regeneration, Includes Ref: 36A-44

1шт.

36a

L50226

SPACER

spring

1шт.

37

L45852

FITTING

check valve to manifold hose, Includes Ref: 37A

1шт.

37a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

38

L47371

SPACER

WASHER - spring retainer

1шт.

39

L47372

VALVE SPRING

poppet

1шт.

40

L47370

VALVE POPPET

1шт.

41

L50227

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

poppet (Large)

1шт.

42

L33128

O-RING,0.984" ID x 0.139" Width

poppet (Small)

1шт.

43

L47369

BODY

VALVE

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

check valve to valve body

1шт.

45

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

adjustable 90°, Includes Ref: 46

1шт.

46

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

47

2L8-5153

PLUG - hydraulic, Includes Ref: 48

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

49

L50021

HOSE ASSY.

SPARE PART check valve to pressure tube (24" long)

1шт.

50

L53120

HYD TUBE

pump to valve at pump

1шт.

51

221-655

PLUG,Hex Hd, 3/4"-14

hydraulic tube (Used on L53120 tube)

1шт.
