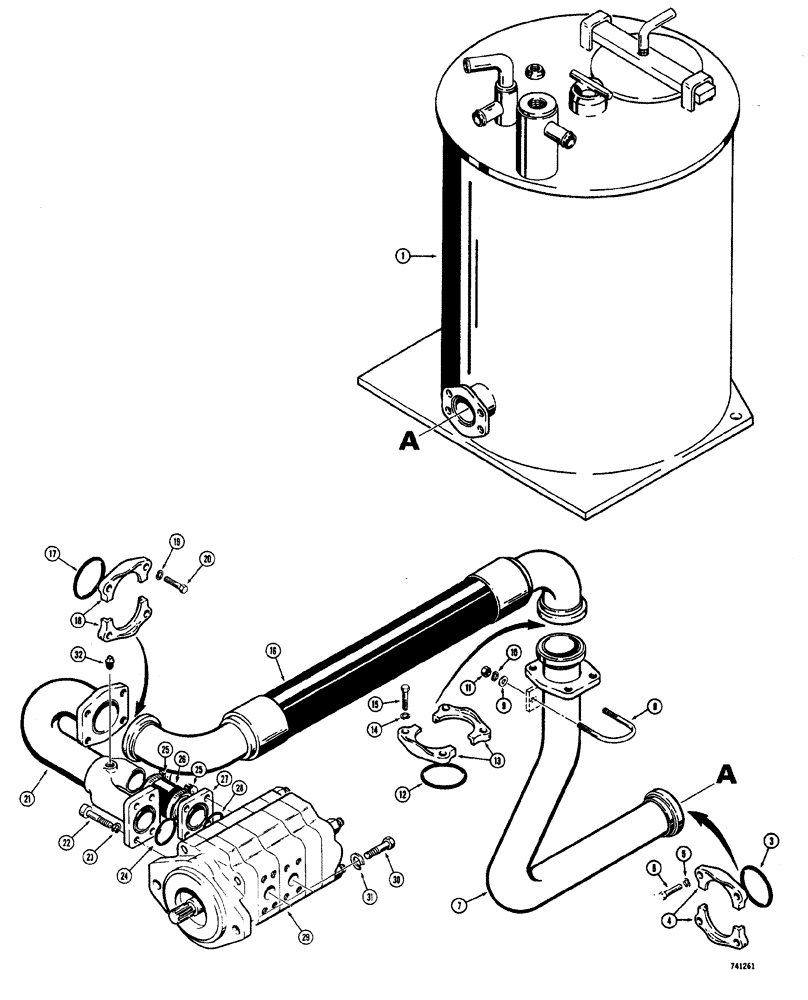

Запчасти Case W20 (276) - LOADER AND STEERING PRIMARY HYDRAULICS TRACTOR S.N. 9107854 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - hydraulic reservoir, See parts list 232

1шт.

2

RESERVED

1шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

4

A14141

FLANGE

split, tube

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

7

L52268

TUBE,15, 9.75" L

SPARE PART suction, at tank

1шт.

8

F8052

CLAMP

CLAMP - tube (Used before tractor Sn 9115403)

1шт.

8

L59227

BOLT (SPREADER)

CLAMP - tube (Used tractor Sn 9115403 and after)

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

standard wrot (5/16") F8052 clamp only

2шт.

9

95-6

WASHER,3/8"

standard wrot, L59227 clamp only

2шт.

10

92-5

LOCK WASHER,5/16"

F8052 clamp only

2шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

L59227 clamp only

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

F8052 clamp only

2шт.

11

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC) L59227 clamp only

2шт.

12

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

13

A14141

FLANGE

split, tube

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

16

L51630

HOSE

hydraulic tank to pump (35.4" long)

1шт.

17

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

18

L14386

CLAMP

FLANGE - split, tube

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

L47345

TUBE

suction models without emergency steering

1шт.

21

L59052

TUBE,10.19, 4.2" L

suction models with emergency steering (Not shown)

1шт.

22

61-816

HEX SOC SCREW,1/2"-13 x 1"

hex, socket head (1/2" - 13 NC x 1")

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

26

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

Low pressure

1шт.

27

L17812

FLANGE

tube

1шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

29

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Loader - 48 G.P.M. steering - 23 G.P.M. @ 2000 P.S.I. @ 2200 R.P.M.), See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

31

92-10

LOCK WASHER,5/8"

2шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

1/2" NPT (Used on Tractor Sn 9115403 and after)

1шт.
