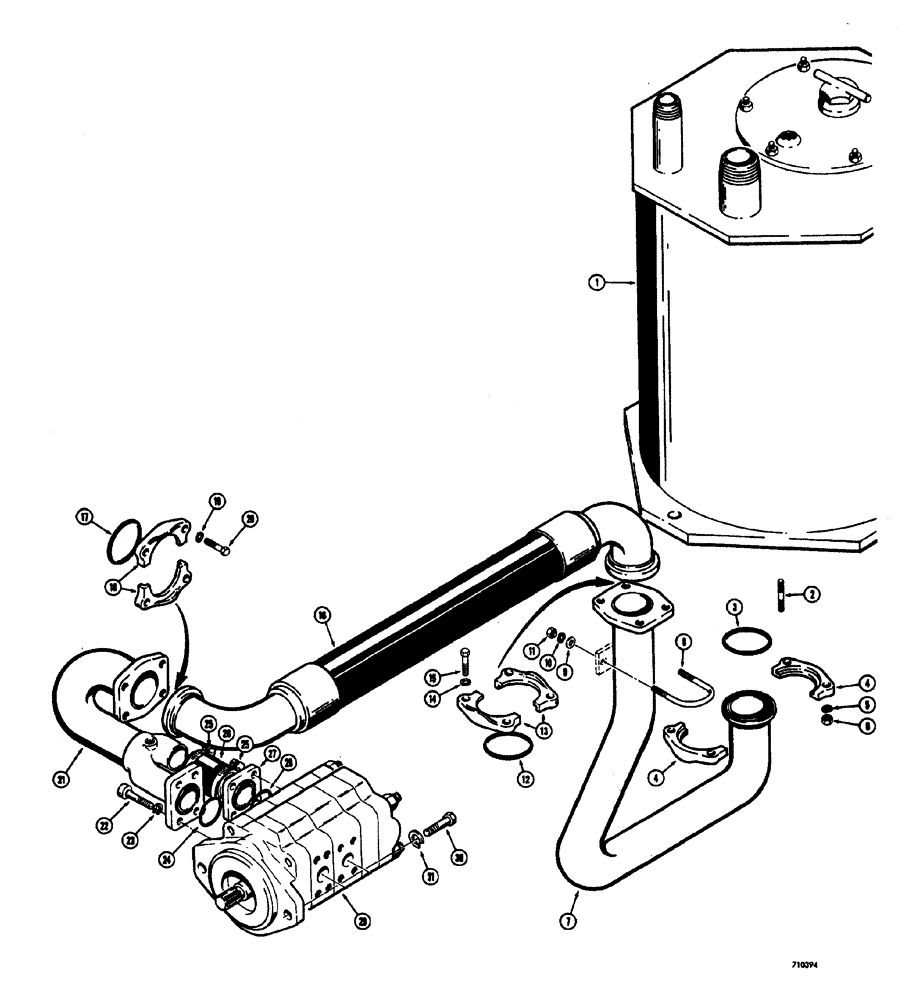

Запчасти Case W20 (274) - LOADER AND STEERING PRIMARY HYDRAULICS BEFORE TRACTOR S.N. 9107854 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
TANK - hydraulic reservoir, See parts list Figure: 230, Includes Ref: 2
1шт.
2
L14422
STUD - clamp mounting
1шт.
3
A27996
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
1шт.
4
L14386
CLAMP
FLANGE - split, tube
2шт.
5
92-8
LOCK WASHER,1/2"
4шт.
6
25-108
NUT,1/2"-13, G5
Hex
4шт.
7
L47349
SPARE PART suction at tank
1шт.
8
F8052
CLAMP
CLAMP - tube
1шт.
9
95-5
WASHER,3/8" x 7/8" x .083"
standard wrot (5/16")
2шт.
10
92-5
LOCK WASHER,5/16"
2шт.
11
9635082
NUT,5/16" - 18, Gr 5
2шт.
12
A27996
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
1шт.
13
L14386
CLAMP
FLANGE - split tube
2шт.
14
92-8
LOCK WASHER,1/2"
4шт.
15
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
4шт.
16
L47330
HOSE
hydraulic tank to pump (35.4" long)
1шт.
17
A27996
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
1шт.
18
L14386
CLAMP
FLANGE - split tube
2шт.
19
92-8
LOCK WASHER,1/2"
4шт.
20
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
4шт.
21
L47345
TUBE
suction tank to pump (At pump)
1шт.
22
61-816
HEX SOC SCREW,1/2"-13 x 1"
hex, socket head (1/2" - 13 NC x 1")
8шт.
23
92-8
LOCK WASHER,1/2"
8шт.
24
A14506
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
1шт.
25
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
2шт.
26
A15675
INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1
Low pressure
1шт.
27
L17812
FLANGE
tube
1шт.
28
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
1шт.
29
L26895
PUMP
ASSEMBLY - hydraulic loader and steering (Loader - 48 G.P.M., steering - 23 G.P.M. @ 2000 P.S.I. @ 2200 R P M), See parts list Figure: 304
1шт.
L26895R
REMAN-HYD PUMP
W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) LOADER AND STEERING PRIMARY HYDRAULICS BEFORE TRACTOR S.N. 9107854
1шт.
L26895C
CORE-HYDRAULIC PUMP
Return Number
1шт.
30
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
2шт.
Выбрано товаров: 33
