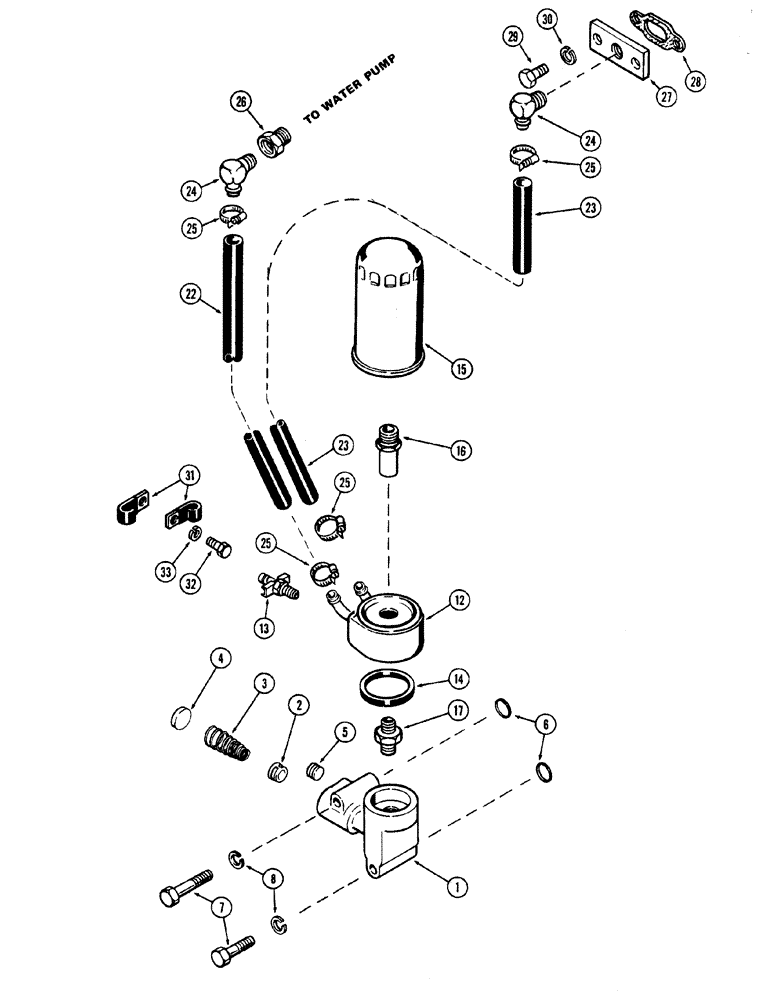

Запчасти Case W20 (012) - OIL FILTER & COOLER (401 BD) DIESEL ENGINE 1ST USED ENG. SN. 2570670 (02) - ENGINE

A65849

BASE

ASSY. oil filter and cooler, Includes Ref: 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE uses A58831 adapter

1шт.

2

A21090

VALVE

relief

1шт.

3

A58669

SPRING

relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

relief valve, cup type, 1-1/4"

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

base to block, 15/16 x 1-5/16 x 1/8"

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Base to block

2шт.

8

195-33

WASHER,1/2"

1/2 x 1 x 1/8"

2шт.

12

A66295

COOLER

oil

1шт.

13

217-107

VALVE

cooler drain, discard 1/8" pipe plug in cooler

1шт.

14

A66410

SEALING RING

oil, cooler to base, 2-5/8 x 3 x 3/16" square

1шт.

15

A75294

ENGINE OIL FILTER

oil, uses A66992 adapter

1шт.

16

A66992

ADAPTER

upper, 1" - 12 NF external threads & 3/4" - 16 NF internal threads

1шт.

17

A58831

ADAPTER

lower, 1" - 8 NC external threads & 3/4" - 16 NF external threads

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE water outlet, 15" long, order A42610

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE water inlet, 29" long, order A42610

1шт.

A42610

LARGE HOSE

HOSE,LARGE 5/8" I.D. x 1" O.D. x 50 ft., cut to length required

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

hose, 90° w/barb end

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose, 9/16" to 1-1/16"

4шт.

26

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

to water pump, 3/4" to 1/2"

1шт.

27

A66993

FLANGE

outlet, Serial Range: hose,-block

1шт.

28

A58670

GASKET

flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flange to block

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

49885

CLAMP

hose

2шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clip

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.
