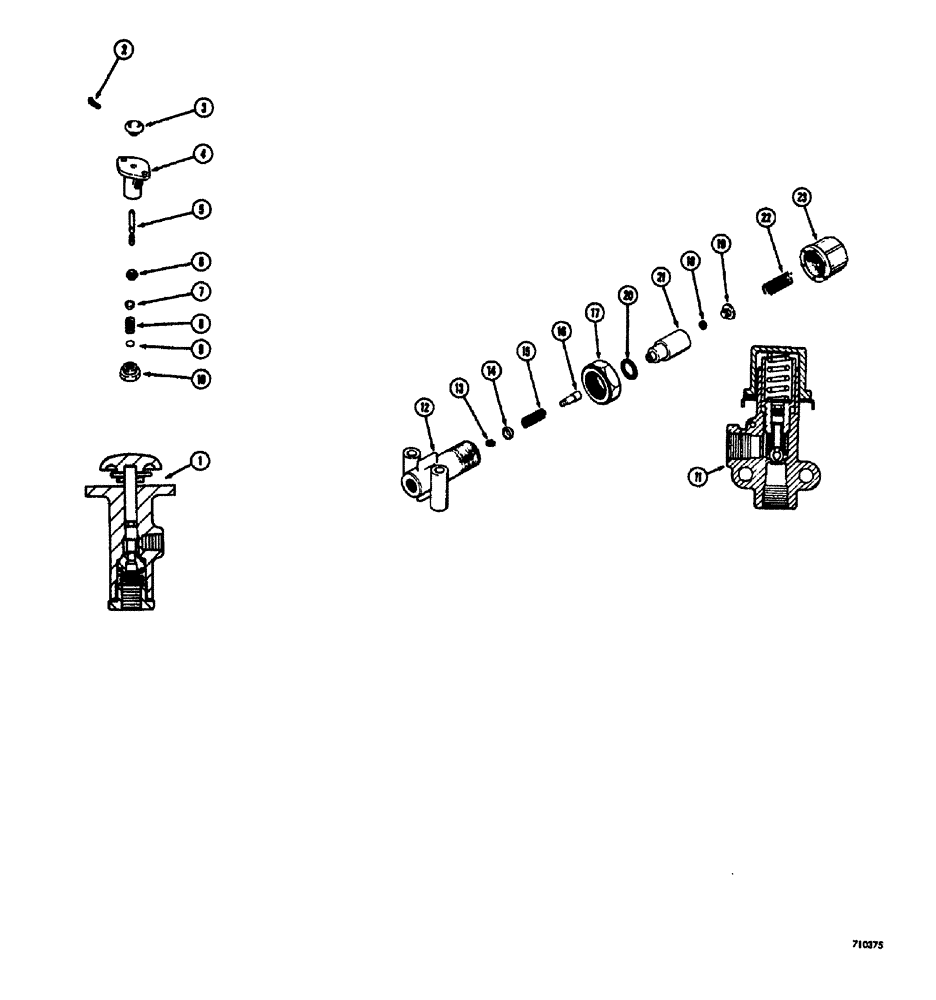

Запчасти Case W20 (200) - BRAKE SYSTEM L12647 HORN VALVE, L13530 PRESSURE PROTECTION VALVE (07) - BRAKES

1

L12647

VALVE

ASSEMBLY - horn, floor mounted, Includes Ref: 1-10

1шт.

2

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", Serial Range: botton-stem

1шт.

3

L31359

SPARE PART BUTTON - horn valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - horn valve, floor mounted

1шт.

5

L31353

STEM

horn valve

1шт.

6

L31354

VALVE

inlet, horn valve

1шт.

8

L35089

SPRING

horn valve

1шт.

7

L31355

SEAT

spring, horn valve

1шт.

9

L31357

PLATE

strainer, horn valve

1шт.

10

L31358

PLUG

CAP - horn valve

1шт.

11

L13530

VALVE

ASSEMBLY - pressure protection, L13530 Pressure Protection Valve, Includes Ref: 12-23

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve, L13530 Pressure Protection

1шт.

13

L31802

VALVE

L13530 Pressure Protection

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - valve, L13530 Pressure Protection

1шт.

15

L31800

SPRING

L13530 Pressure Protection Valve

1шт.

16

NSS

NOT SOLD SEPARAT

STEM - valve, L13530 Pressure Protection

1шт.

17

131-414

LOCK NUT,PAL, 7/8"-14

PALNUT - hex (7/8" NF), L13530 Pressure Protection Valve

1шт.

18

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

valve plug, L13530 Pressure Protection

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - piston, L13530 Pressure Protection Valve

1шт.

20

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

valve piston, L13530 Pressure Protection

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - valve, L13530 Pressure Protection

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - valve, L13530 Pressure Protection

1шт.

23

L33316

CAP

adjusting, L13530 Pressure Protection Valve

1шт.
