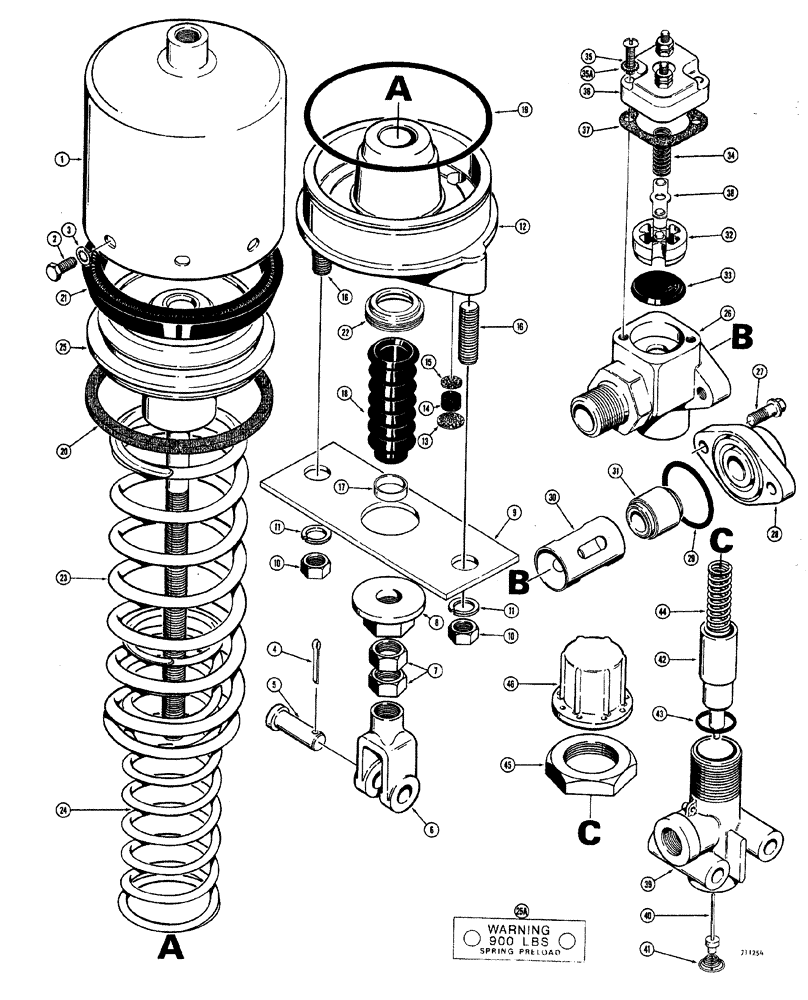

Запчасти Case W20 (198) - BRAKE SYSTEM L48127, L48128, L48129 (07) - BRAKES

L48127

CHAMBER

ASSEMBLY - safety, Includes Ref: 1-25A

1шт.

1

L33640

CYLINDER

safety chamber

1шт.

2

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

3

193-67

LOCK WASHER,Int Tooth, 5/16"

8шт.

4

132-47

COTTER PIN,1/8" x 7/8"

1шт.

5

L33649

AXLE PIN

clevis, special

1шт.

6

L33648

CLEVIS COUPLING

piston rod

1шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE AND NUT - stop

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

11

192-25

LOCK WASHER,5/8"

2шт.

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - spring retaining, Includes Ref: 12-16

1шт.

12

NSS

NOT SOLD SEPARAT

HEAD - spring retaining

1шт.

13

L32540

RETAINER

breather

1шт.

14

L32539

FILTER CARTRIDGE

breather

1шт.

15

L32538

SCREEN

breather

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - chamber mounting

2шт.

L33650

KIT

repair chamber, Includes Ref: 17-21

1шт.

17

L33656

STRAP

RETAINER - boot, outer

1шт.

18

L33655

BOOT

rod protector

1шт.

19

L33654

O-RING,4-3/8" ID x 0.139" Width

head to cylinder

1шт.

20

L33653

RETAINER

SEAL - felt piston

1шт.

21

L33652

SEAL

CUP - piston

1шт.

22

L33644

RETAINER

boot inner

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - piston, outer

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston, inner

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON AND PUSH ROD ASSEMBLY - chamber

1шт.

25a

L33921

SPARE PART warning, 900 Ibs spring preload

1шт.

L48128

VALVE

ASSEMBLY - double check and stop light switch, Includes Ref: 26-38

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

28

L33702

COVER

valve body

1шт.

29

L31499

O-RING,1" ID x 40546" OD x 3"

cap to valve body

1шт.

30

L31497

GUIDE

valve shuttle

1шт.

31

L31498

ROD

SHUTTLE - check valve

1шт.

32

L33202

PISTON

check valve

1шт.

33

L33201

DIAPHRAGM

piston

1шт.

34

L33204

SPRING

piston return

1шт.

35

173-295

SCREW - machine, round head (#10 - 24 NC x 3/4")

2шт.

35a

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

36

L33206

COVER

valve body and stop light terminals

1шт.

37

L33205

GASKET

valve body cover

1шт.

38

L33203

TERMINAL STRIP

STRIP - contact switch

1шт.

L48129

VALVE

ASSEMBLY - pressure regulator, Includes Ref: 39-46

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

40

REFERENCE

SPARE PART

- inlet and exhaust

1шт.

41

L33660

SPRING

valve

1шт.

42

L33661

PISTON

valve

1шт.

43

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

piston

1шт.

44

L33662

VALVE SPRING

pressure regulating

1шт.

45

131-414

LOCK NUT,PAL, 7/8"-14

PALNUT - hex , lock (7/8" 14 NF)

1шт.

46

L33316

CAP

pressure adiustmg

1шт.
